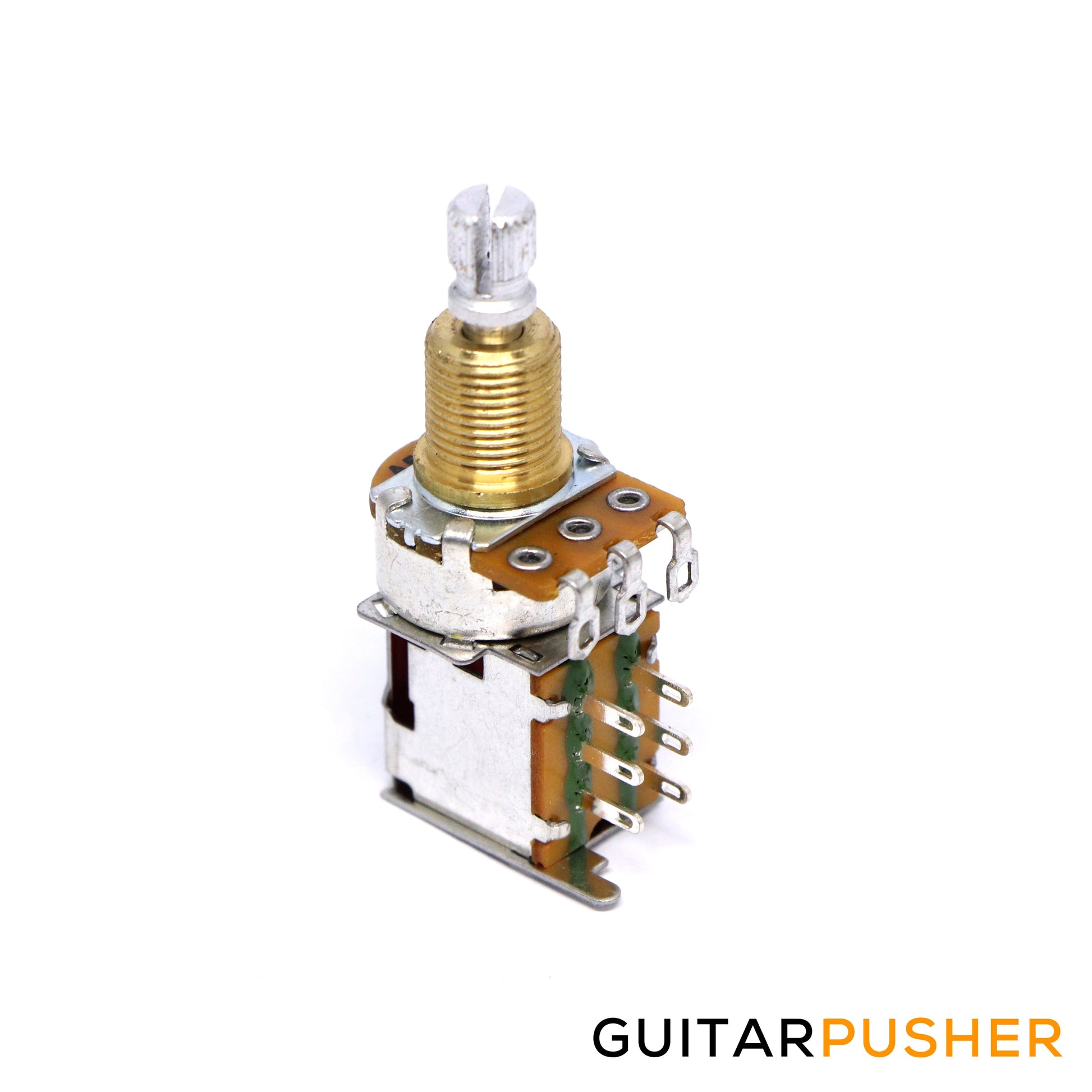

Alpha Push Push Potentimeter US Size 9.5mm hole Tall Bushing 3/4 inch

Alpha Push Push Potentimeter US Size 9.5mm hole Tall Bushing 3/4 inch

Regular price ₱1,500.00 PHP
Regular price ₱0.00 PHP Sale price ₱1,500.00 PHP
Sale Sold out
Stocks left: 3

Time to replace your pots with the time-tested factory potentiometer - Alpha.

Alpha is an industry name in affordable but reliable potentiometers.

Push-Pull potentiometer is commonly used to do coil-splitting of humbucker pickups to produce single coil sounds from one of the coils of your humbucker pick up.  This is achieved by shunting (shorting) one of the coils to ground using the DPDT switch of the push-pull.  It can also be used to do series-parallel humbucker operation and many more.  Please make sure that your humbucker has at least 3 wires to perform coil-split operation, or 4 wires for series-parallel wiring.

250k is best used with single coil pickups such as strat, tele, Jazz Bass, P-Bass.

500k is best used with humbucking pickups such as Les Paul, SG, Modern Guitars, Metal Guitars and Humbucker-equipped passive bass guitars.

Metric 8mm bushing diameter is perfect for Asian-made guitars with small hole such as Ibanez, Squier, JCraft, Cort, Tagima, Epiphone, Elegee, D&D, etc.

Specs for this Stock:

Value 250k 500k (pls select Variant)
Type Mini body with DPDT Switch
Bushing Diameter 8mm (fits most Asian/Japan-made guitars)
Bushing Length

3/4 inch - fit wood top guitars

It can be fitted for 1/4 applications for pickguard or control plate mount by adding a nut

Taper Audio /  Linear (Log) Taper (pls select Variant)
Shaft 18 Coarse Spline, Split Shaft (fits asia made knobs)
Torque High Torque




We ship via Lalamove within Metro Manila or nearby cities. We ship via LBC, J&T, YTO, 2GO nationwide. You may select the courier upon checkout.

Care Instructions

Bring your guitar only to certified Guitar Pusher techs or to certified tech partners nationwide. Damage due to uncertified techs will not be honored for warranty claim.

When returning items, it should be in brand new condition without any modifications, complete with all accessories and attachments.
