Bareknuckle

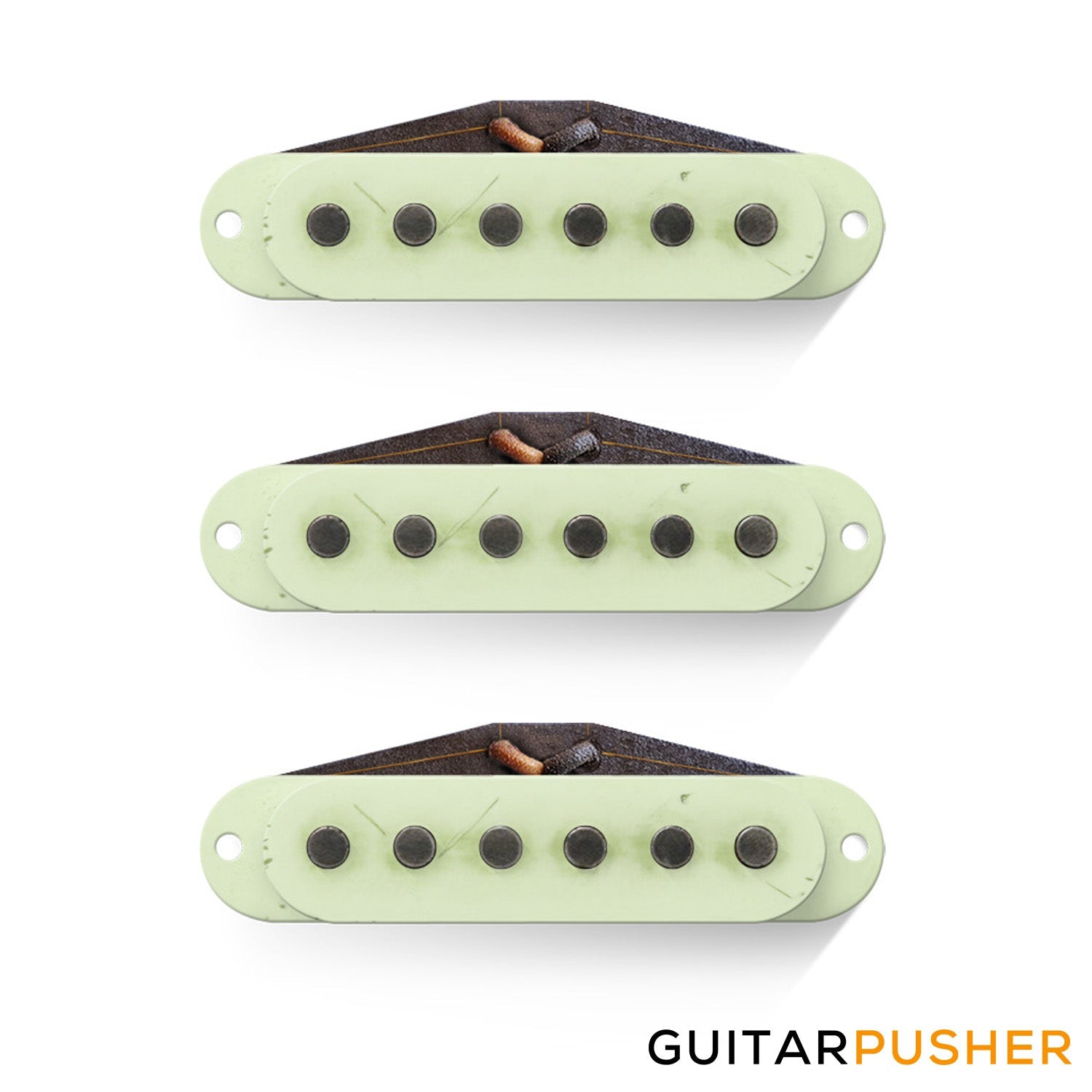

Bareknuckle PAT Pending Veneer 63 Calibrated Single Coil Pickup Set, Vintage Staggered, Mint Green Aged

Bareknuckle PAT Pending Veneer 63 Calibrated Single Coil Pickup Set, Vintage Staggered, Mint Green Aged

Regular price ₱19,500.00 PHP
Regular price ₱0.00 PHP Sale price ₱19,500.00 PHP
Sale Sold out
SKU:BKSV3ST6VSMGA

PAT PEND '63 VENEER BOARD STRAT

AFTER THE SUCCESS OF THE BLACKGUARD TELE SERIES IT SEEMED LOGICAL TO EXTEND THE CONCEPT AND PRODUCE A COLLECTION OF VINTAGE CORRECT STRAT SETS BASED ON CUSTOMER DEMAND FOR COILS FROM SPECIFIC ERAS. THE PAT PEND SERIES CENTRES IN ON THE TWO MOST REQUESTED PERIODS BETWEEN '59-'62 AND '63-'65.

Marking the change to a thinner rosewood 'veneer' board, the '63 Veneer Board set is based on some of the slightly hotter coils from '63 and '64, with the slightly smaller diameter Alnico V magnets. While veneer board Strats are usually brighter than slab board Strats, the hotter wind helps to add body to the tone, while the smaller hand-bevelled magnets focus the magnetism under the strings. With deeper bottom-end than the '59 Slab Board set and a more solid high-end, chords carry plenty of weight with a very full, piano-like ring to each note. As with both sets, the coils are scatter-wound with Heavy Formvar wire for wide frequency response and exceptional pick dynamics.

SPECIFICATIONS FOR THIS STOCK

  • Calibrated Strat Pickup Set
  • Standard Polarity
  • Vintage Stagger pole pieces
  • Aged - Mint Green Pickup Covers

APPLICATIONS

    Blues, Country, Jazz, Funk, Reggae, Indie, Pop, Britpop, Classic Rock.

SUITABILITY

The '63 Veneer Board set will add depth to any alder body, maple or veneer board Strat as well as brighter ash bodied guitars.


SPECIFICATION

  • Position: Bridge
  • DC Resistance: 6.3 kΩ
  • Magnet: Alnico 5
  • Position: Middle
  • DC Resistance: 5.8 kΩ
  • Magnet: Alnico 5
  • Position: Neck
  • DC Resistance: 5.8 kΩ
  • Magnet: Alnico 5



PAT PEND '63 VENEER BOARDSTRAT OPTIONS

  • For compatibility with other Strat coils the PAT Pend Strat Series are wound top going top left, south polarity. Original north polarity can be arranged if desired.
  • Vintage stagger or flat magnet profile.
  • Stock wound or RWRP mid coil (for hum-cancelling in 2&4).
  • Zinc plated steel baseplates for extra power and bottom end.
  • White, Black, Parchment, Cream, Mint Green covers or fully aged coils and covers

E-mail info@guitarpusher.com for your custom order
