Bourns

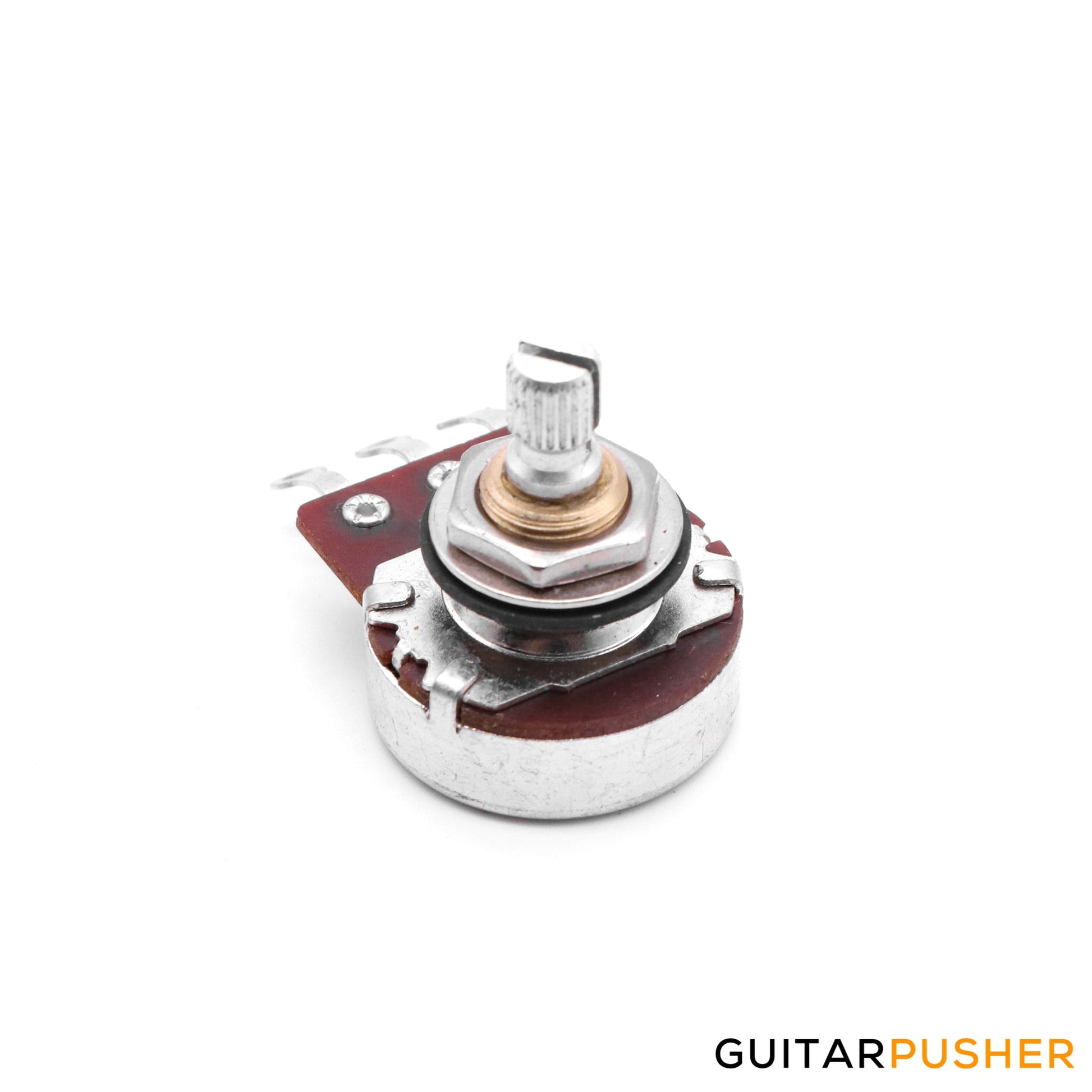

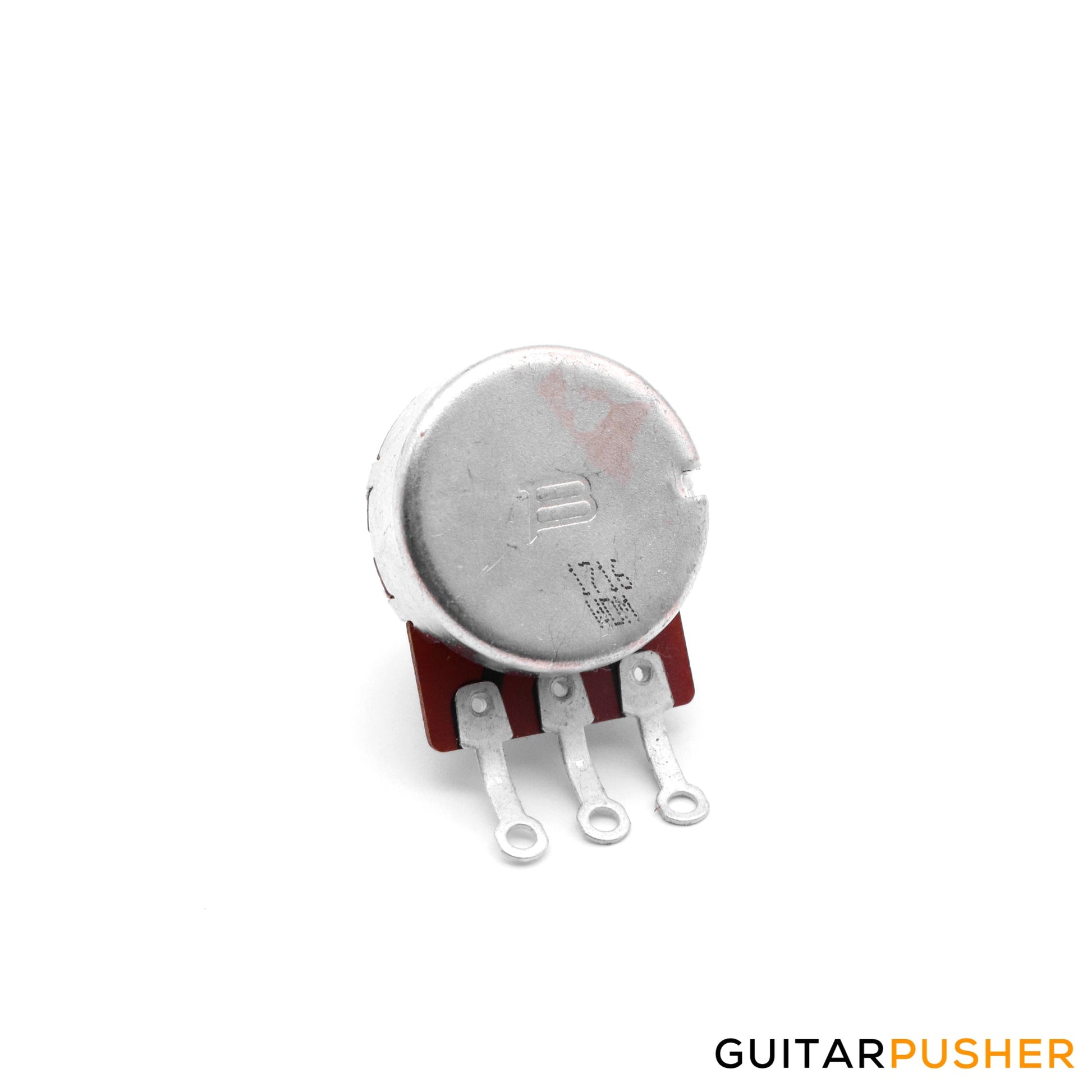

Bourns Pro Audio 500k PDA24 Audio Taper Long Life Potentiometer 1/4 tall Split Shaft for Tone Low Torque
Bourns Pro Audio 500k PDA24 Audio Taper Long Life Potentiometer 1/4 tall Split Shaft for Tone Low Torque
Couldn't load pickup availability
Bourns Pro Audio knurled shaft Long Life pot LINEAR Taper, 3/8 shaft height, US thread, ± 15% tolerance. For Volume control applications.
300k is a sweet spot value to ensure at least 250k value, which can be used for single coil pickups and P90s
HOW TO CHOOSE A POTENTIOMETER?
Selecting the right potentiometer can be a daunting task as there are so many options to choose from. Don't worry, we're here to help! Below are the things that you need to consider
- Shaft diameter can METRIC (8 mm) or US (9.5 mm). Usually Asian-made guitars like Ibanez, Epiphone, Squier or entry to mid level guitars have metric-spec stock potentiometers. If you will change the pots to CTS, then you may need to widen the hole to accommodate the shaft diameter of the CTS pots.
- Shaft height can be 1/4", 3/8", or 3/4"
- 1/4 inch has the shortest shaft height and used for guitars with pickguard like Strat or Jazzmaster or with control plate like telecaster or Jazz Bass.
- 3/8 inch is used for guitarswhere pots are installed on the wood top likeAsian-made Les Pauls and non-pickguard superstrats.
- 3/4 inch, the longest shaft are used on guitars that have thick tops like vintage Gibson Les Pauls.
- Shaft texture- can be split shaft or solid shaft. Split shaft is used for no-screw knobs while solid shaft can work only with knobs that have screw. Generally you can use split shaft. Solid shaft are mostly used for telecasters and jazz bass where the knobs have screw
- Taper - this is how gradual the resistance change as you turn the knob
- Linear taper as the name suggest changes resistance exactly how the knob turns. When the potentiometer is in the middle position, the resistance value is also at the half mark. This is usually used in volume control.
- Audio taper or custom tapers gradually change the resistance value and almost abruptly opens up when you are near 10. This is very useful if you're working with drive to control the clean up. Audio taper can be used for Volume and Tone.
Shipping
Shipping
We ship via Lalamove within Metro Manila or nearby cities. We ship via LBC, J&T, YTO, 2GO nationwide. You may select the courier upon checkout.
Care Instructions
Care Instructions
Bring your guitar only to certified Guitar Pusher techs or to certified tech partners nationwide. Damage due to uncertified techs will not be honored for warranty claim.
When returning items, it should be in brand new condition without any modifications, complete with all accessories and attachments.

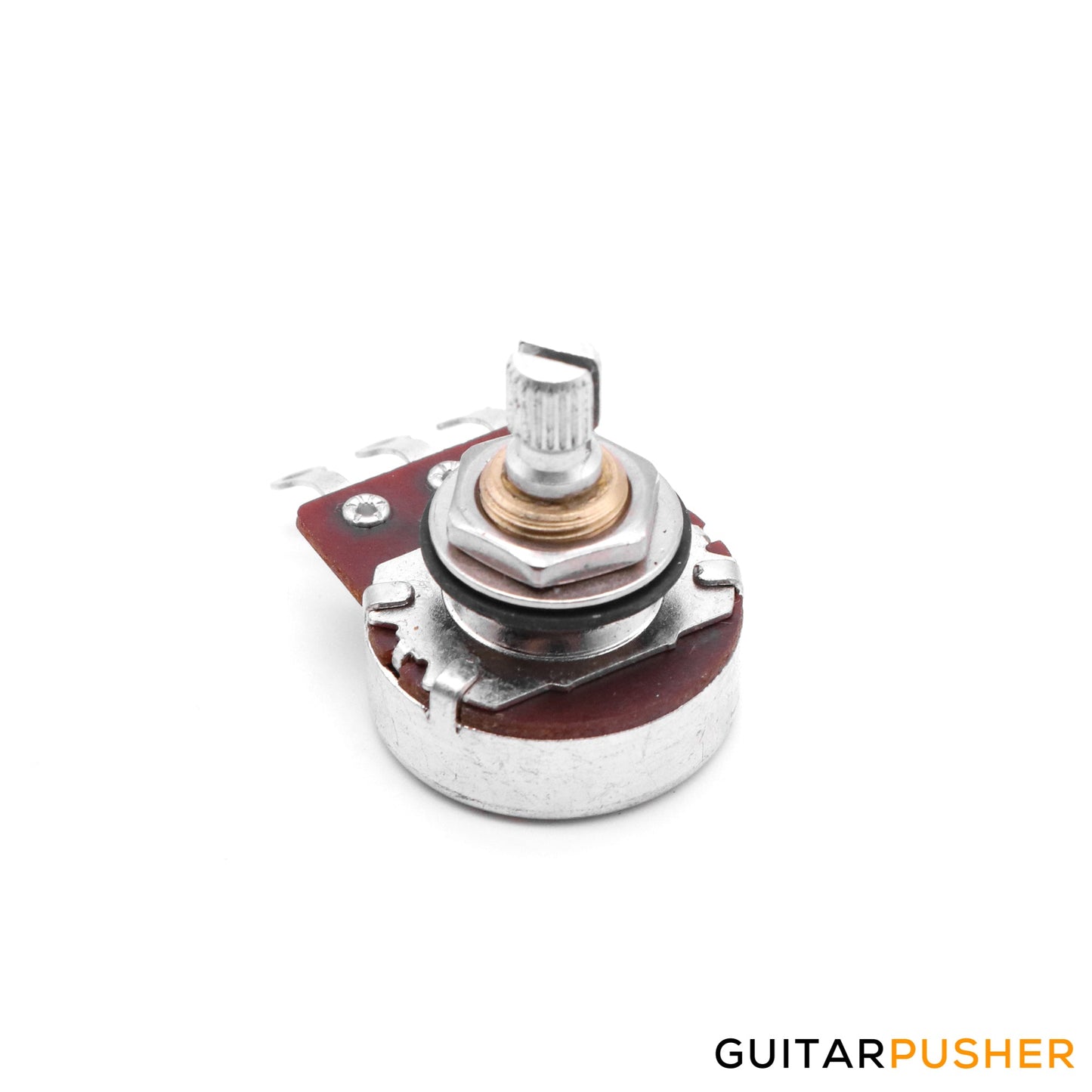

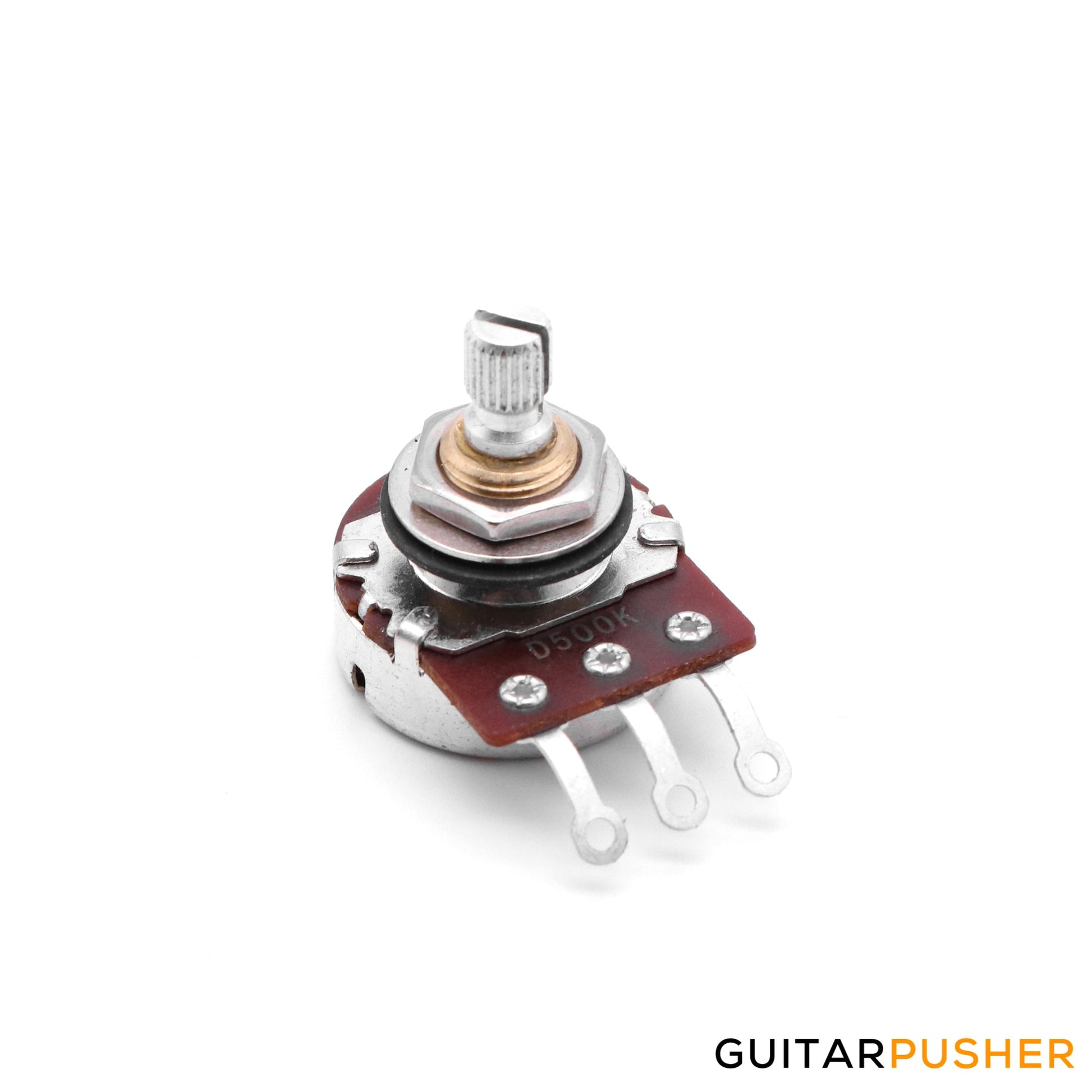

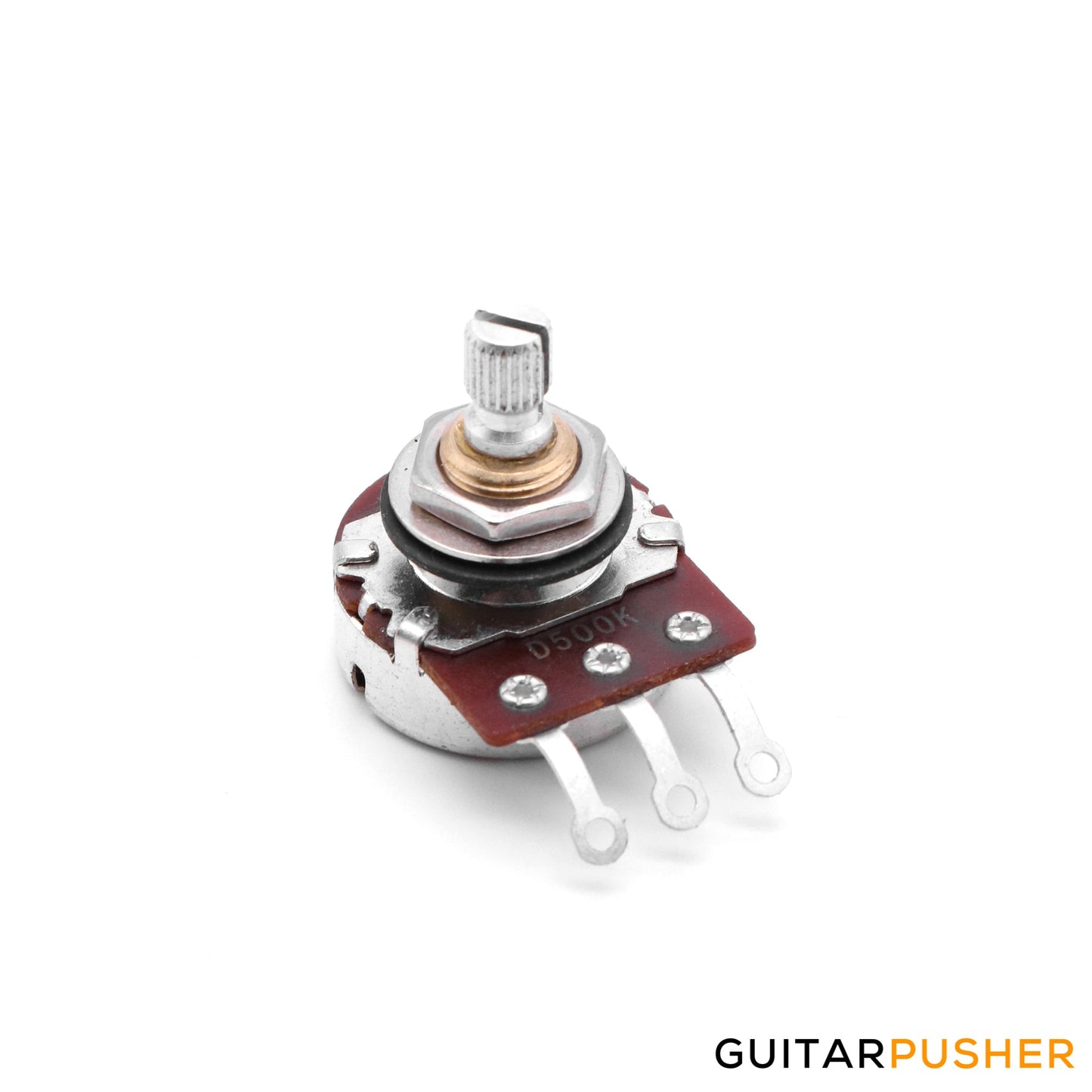

![Bourns Pro Audio 500k PDA24 Audio Taper Long Life Potentiometer 1/4 tall Split Shaft for Tone Low Torque](http://verdana.guitarpusher.com/cdn/shop/products/BRNP500A14UL24F-D500K-01_a381f8df-6f5e-43aa-a3a5-5f8fc78f3018.jpg?v=1703719942&width=1445)
