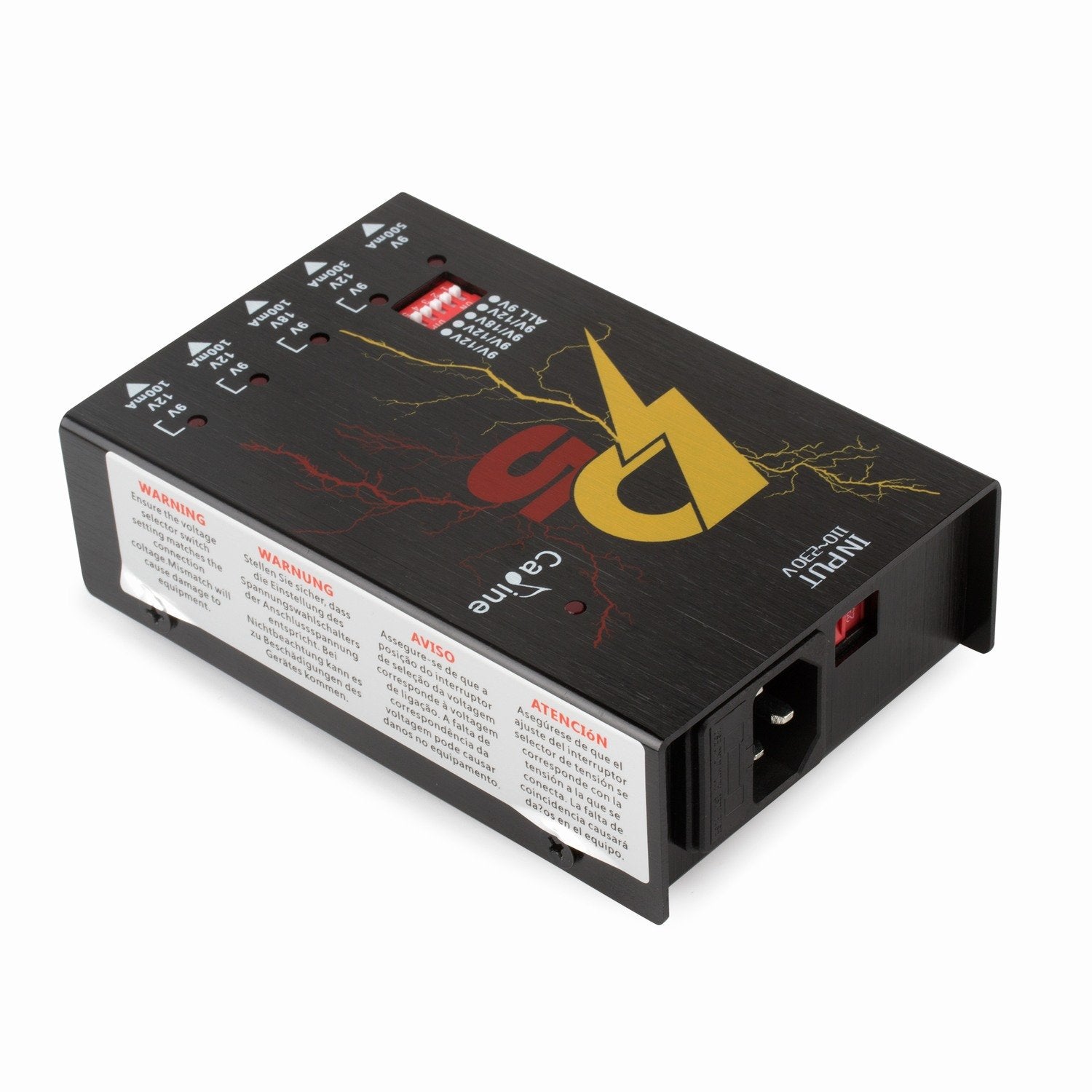

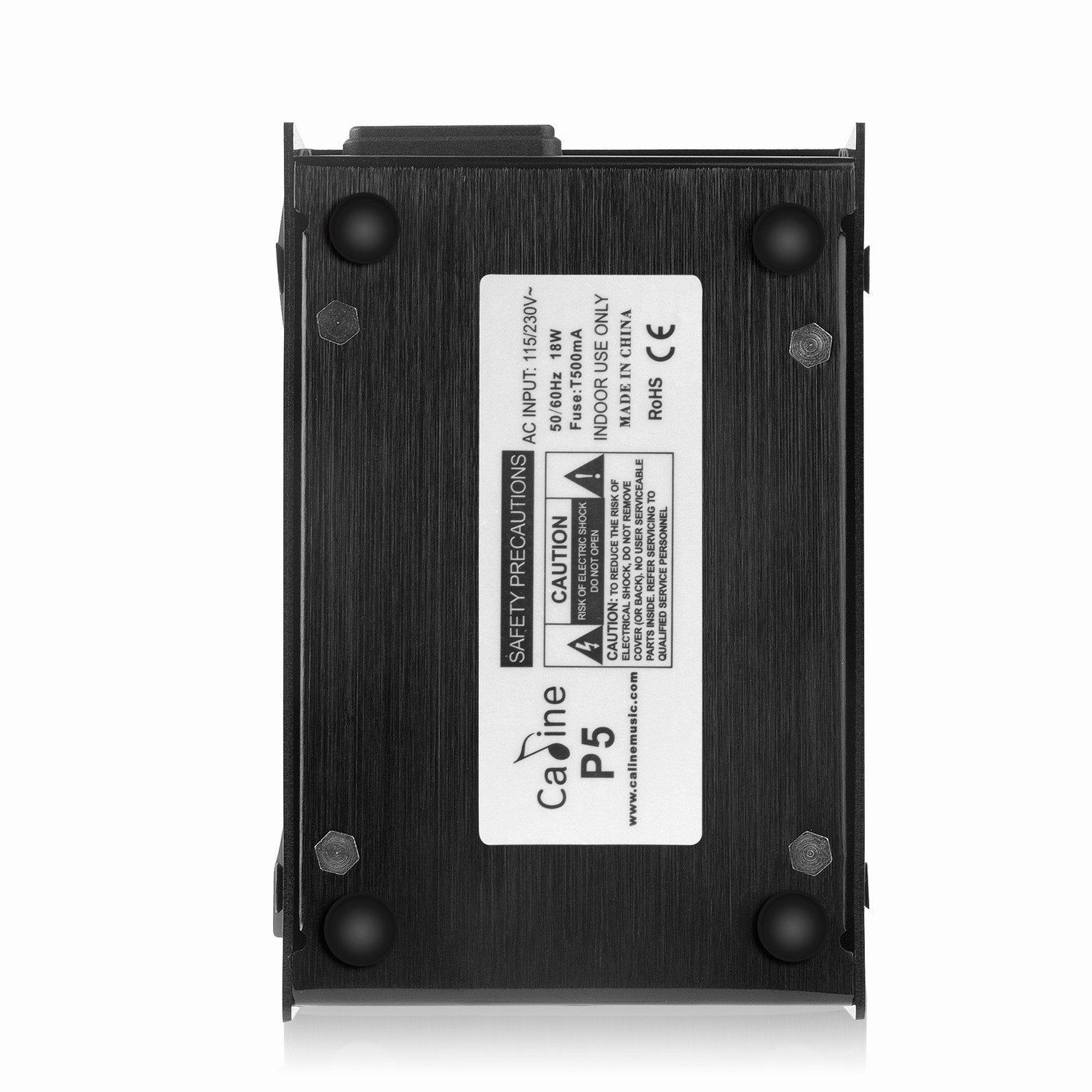

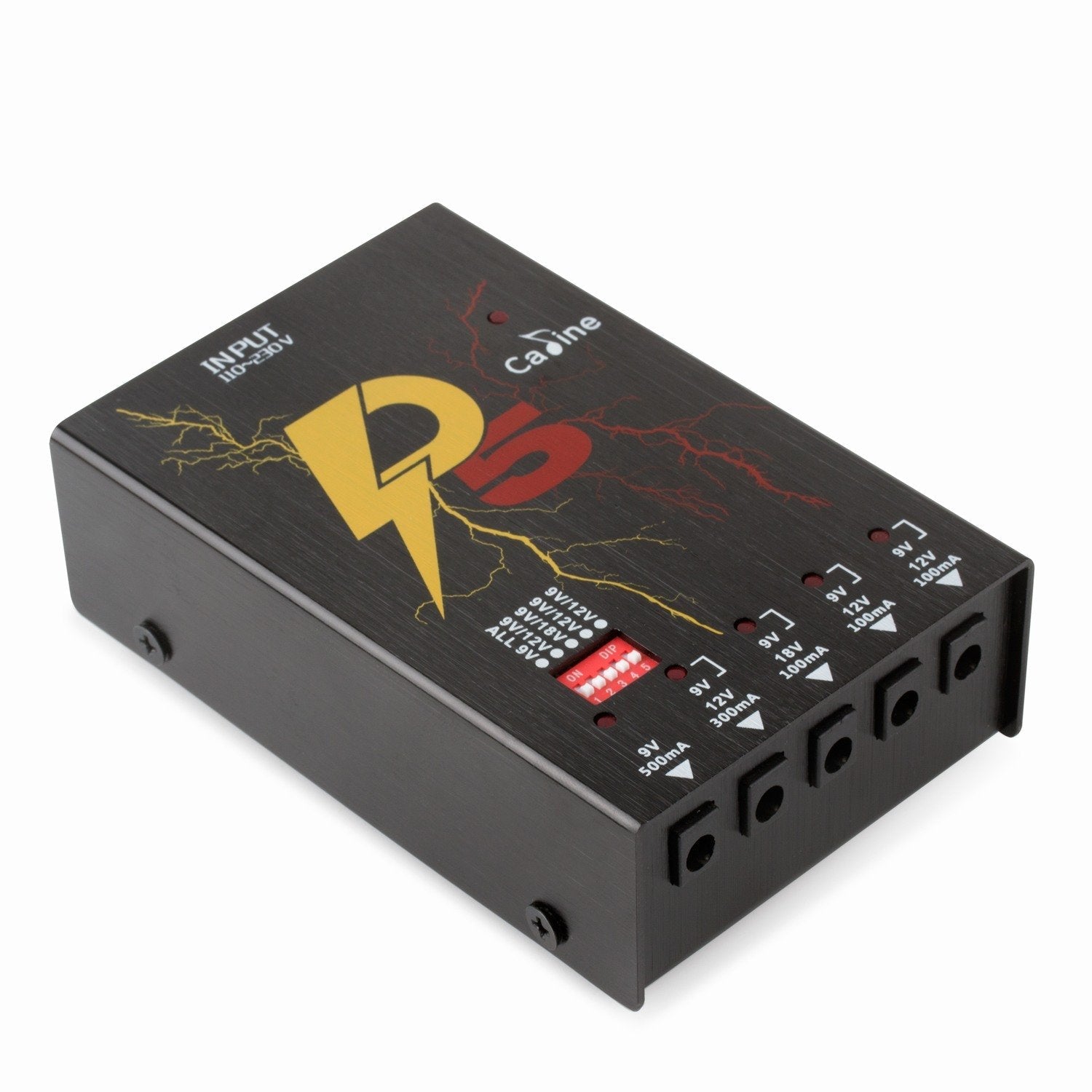

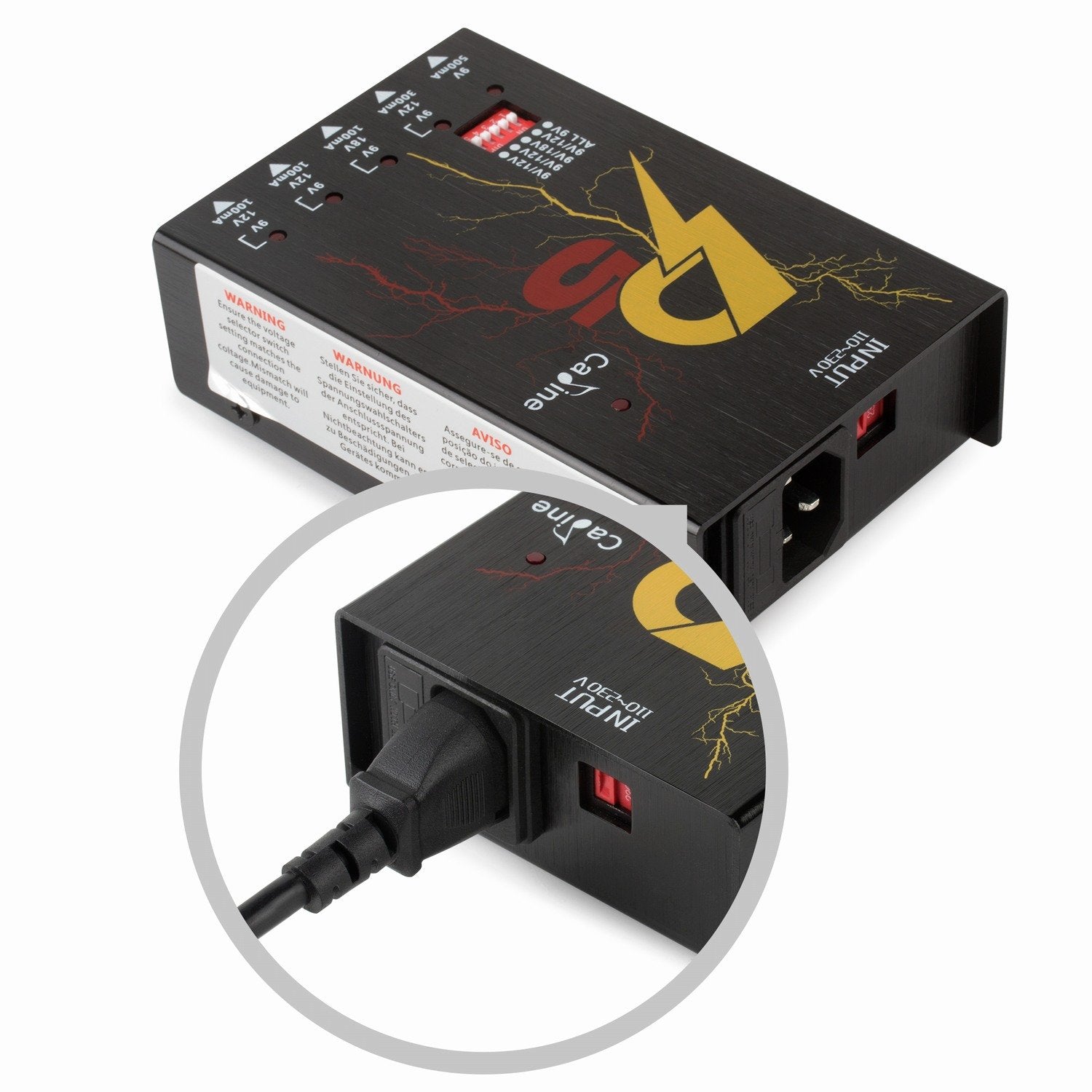

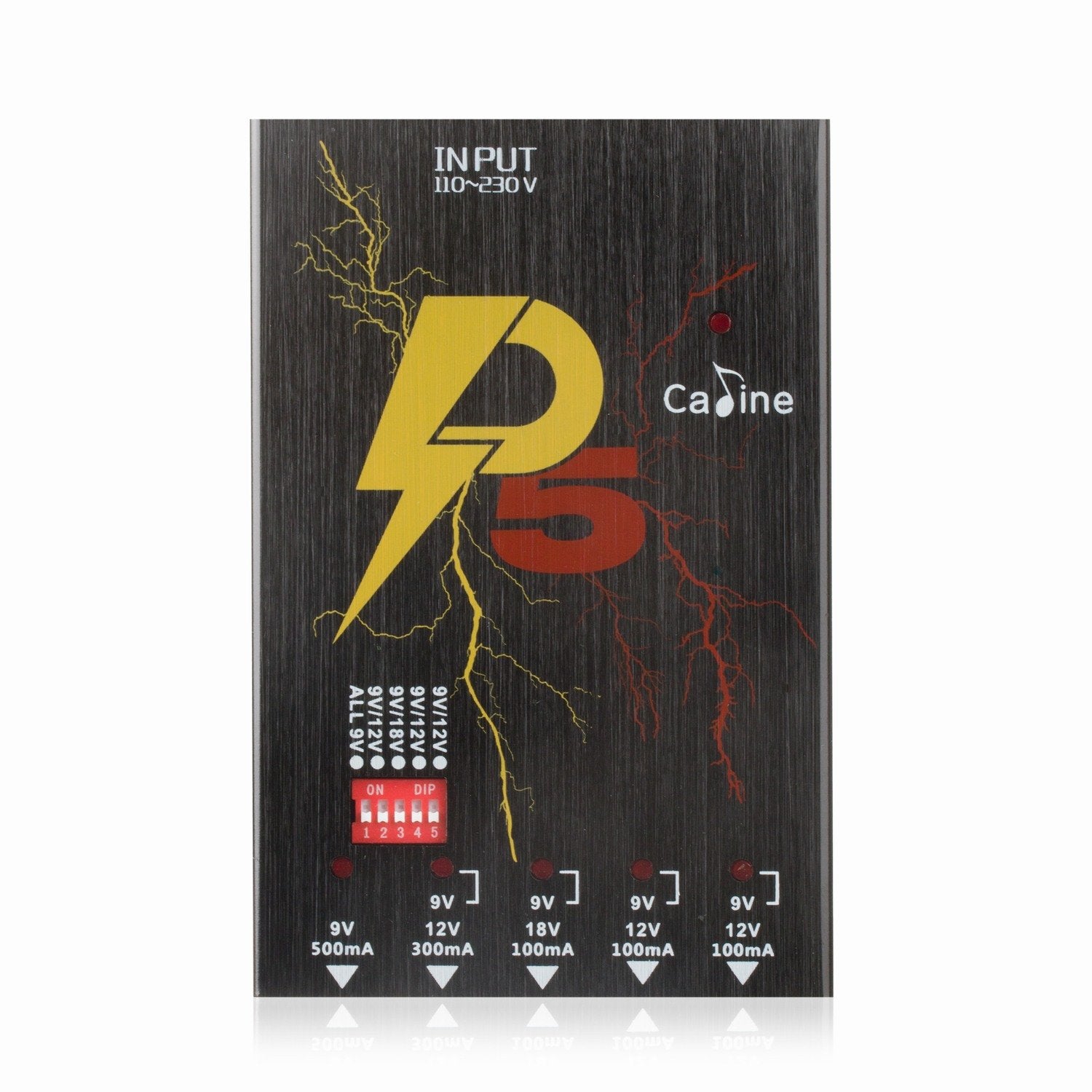

Caline P5 Isolated Power Supply 5 Output DC9V 12V 18V Effect Pedals with Short Circuit Protection

This is a true isolated PSU without a wall wart. It has 5 isolated power section with switchable voltage. You can test that each section's ground are isolated. Guitar Pusher backs it up with 1 year personal warranty. This is a great alternative to some Voodoo Labs or Cioks PSU. You need this if you are running mixed analog and digital effects and experience noise in that setup. Note that noise can also be caused by bad AC power or low quality cables or defective pedal. So make sure you know your noise issue before getting one. If you run a simple setup with analog pedals, non-isolated PSUs like Vitoos PSA-15, One Spot, Godlyke, DC Brick and the likes with daisy chain will be enough. You might also need this if you need 12 or 18v.

Specifications:

• 5 Outputs Switchable Isolated Power
• 1X9V DC 500mA
• 1X variable 12V-9V DC 300mA
• 1X variable 18V-9V DC 100mA
• 2X variable 12V-9V DC 100mA
• AC Input voltage rating:110V AC to 120V AC and 220V AC to 240 AC
• Dimensions:135x87.8x42mm
• Weight:600g

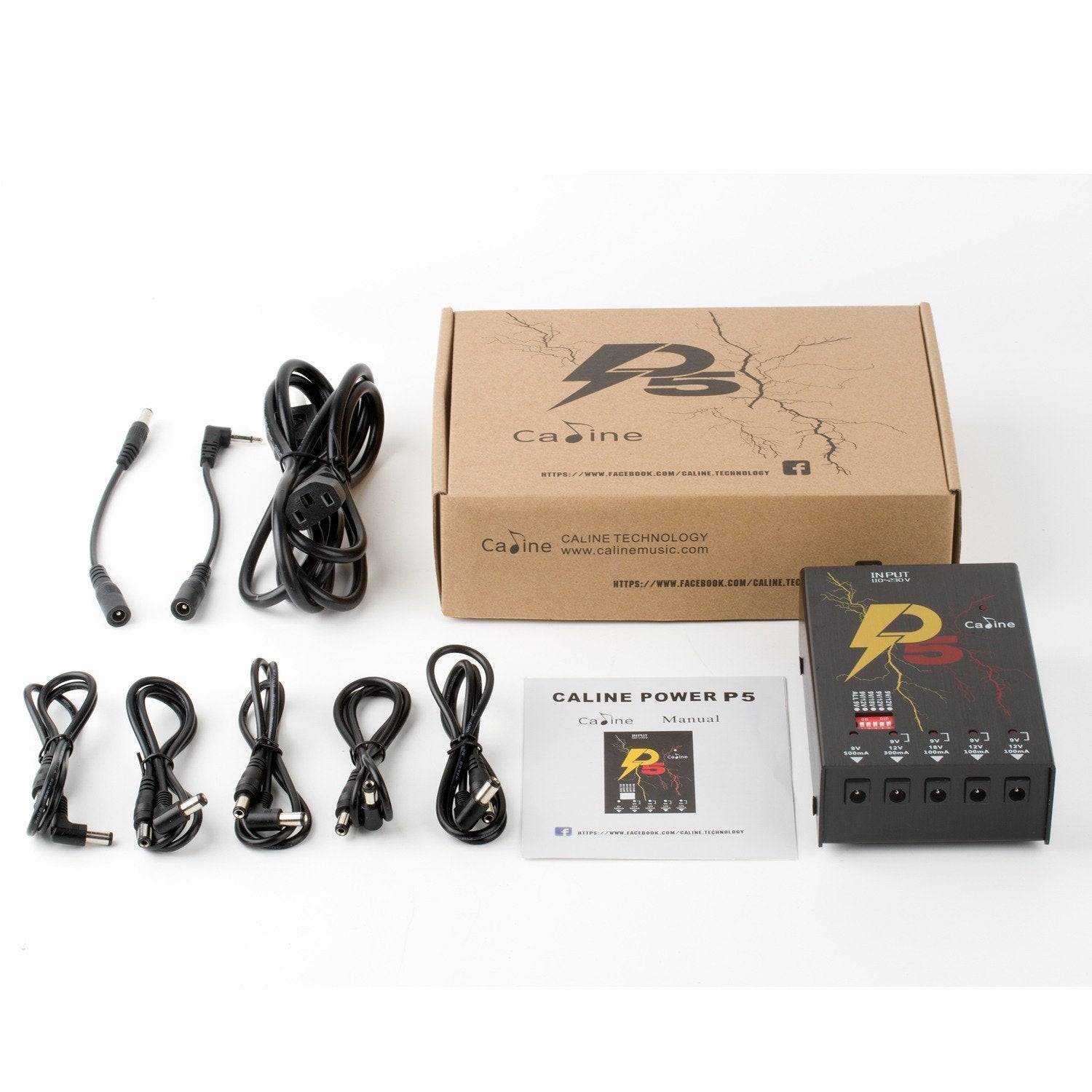

What's in package

• P5 Power Supply
• AC cable
• 5pcs DC cables with 2 converter cables
• User Manual

Additional cables can be purchased separately like daisy chain, L cable, etc. Check our Effects -> Power supply section to see all the cables available

Why You Need Isolated Power Supply?  Check the video below
