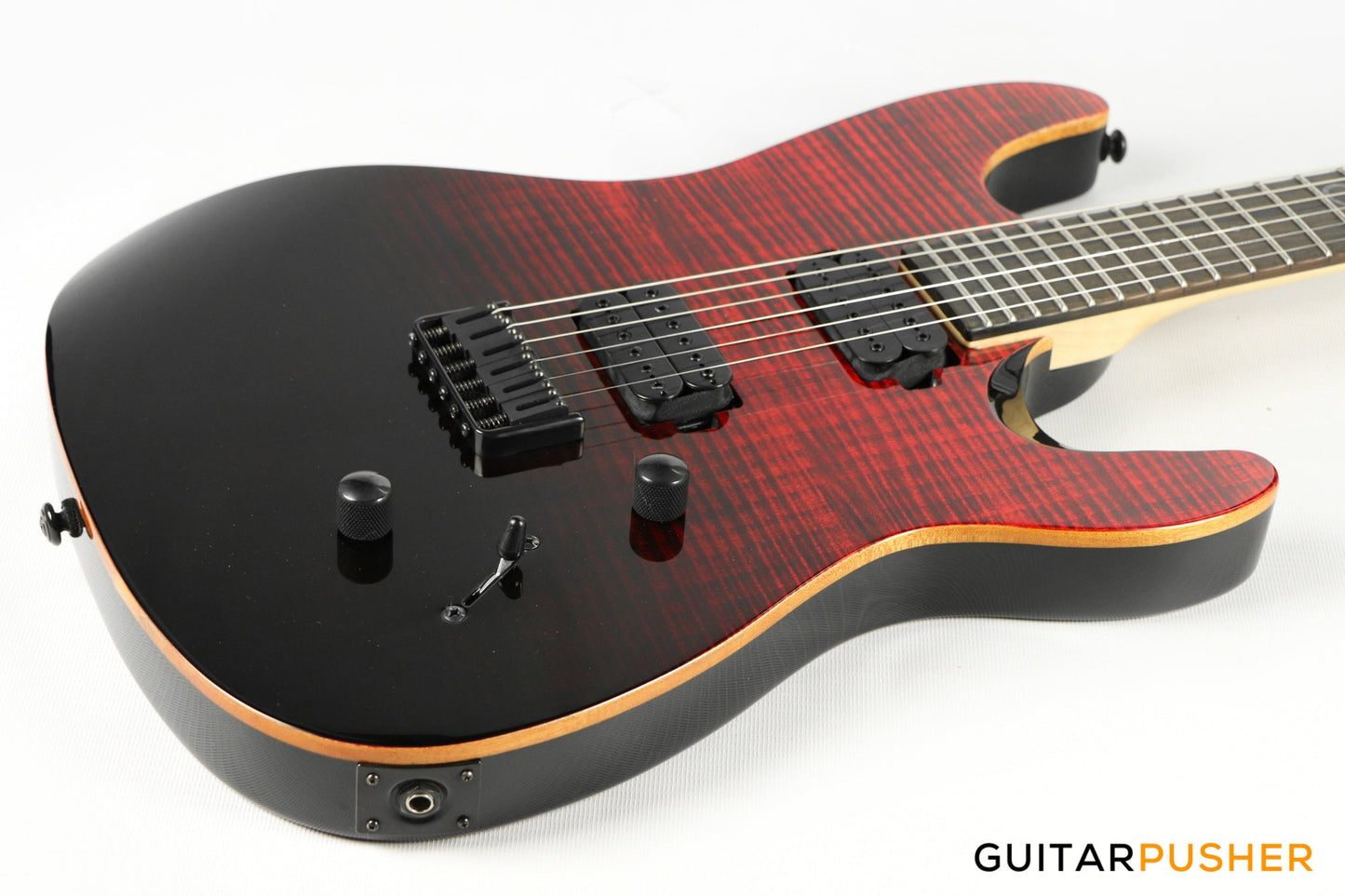

Chapman Guitars ML1 Modern - Black Blood

MODEL ML1 Modern Lunar v2
MODEL CODE ML1-MOD-LNR-V2
SERIES Standard Series
PRODUCT URL http://www.chapmanguitars.co.uk/guitars/ML1-MOD/
UPC Single Carton: 819445021682 Master Carton: 10819445021689

DESCRIPTION A perfect blend of maple and mahogany, and newly improved for 2019! The ML1 Modern is the answer to your every day,
multi-genre requirements. Design features such as a lightweight mahogany body, an upper access spoon cut and updated
specially-voiced Chapman Sonorous Zerø pickups really show an attention to detail worthy of even the most discerning of
players. Apologies to your neighbours and our utmost respect.
Available in Lunar and Midnight Sky.

NO OF STRINGS 6
ORIENTATION Right Handed
HEADSTOCK Straight Heritage Headstock
TUNERS Chapman Classic Closed (18:1 Gearing)
STRING NUT 42mm Graph Tech Black TUSQ XL Nut
NECK Maple with Satin Finish
NECK JOINT Recessed Bolt-on Neck
NECK SIZE WIDTH: NUT 42mm 24F 57mm • THICKNESS: 1F 23mm 12F 24mm
PROFILE: C Shape
TRUSS ROD Dual Action
FRETBOARD Macassar Ebony Fretboard with Rolled Edges
FRETBOARD RADIUS 350mm
FRETS 24 Jumbo Nickel Frets
FRET MARKERS Pearl Side Dots and Pearl Front Dot Inlays
12TH FRET INLAY Pearl Infinity
SCALE LENGTH 648mm (~25.5")
BODY TOP Flame Maple Veneer On Flat Top with Gloss Finish
BODY BACK Mahogany with Gloss Finish
BODY BINDING Reveal
BODY CARVES Arm Carve, Front Lower Spoon Cut, Rear Tummy Cut, Rear Lower Spoon Cut, Rear Heel Contour
BRIDGE Chapman String-Through Hardtail
NECK PICKUP Chapman Sonorous Zerø Humbucker
MAGNET: Ceramic OUTPUT: 10.5k ohm s
BRIDGE PICKUP Chapman Sonorous Zerø Humbucker
MAGNET: Ceramic OUTPUT: 12.5k ohm s
PICKUP SWITCH 3 Way Blade Switch with Coil Split on Push-Pull Tone Knob
CONTROLS Master Volume (500k), Master Tone with Push-Pull (500k)
STRAP BUTTONS Chapman Classic Strap Buttons
STRINGS Ernie Ball Regular Slinky Nickel Wound, 10-46
GUITAR WEIGHT Approx. 3.5kg (7.7lbs)

PICKUP SWITCHING TONE KNOB IN TONE KNOB OUT
POSITION 1 Bridge Bridge Coil Split (Outer Coil)
POSITION 2 Bridge + Neck Bridge + Neck Both Split (Outer Coils)
POSITION 3 Neck Neck Coil Split (Outer Coil)
