Cioks Adam Link 4 Isolated Output Power Supply 9/12V fits PT Nano

Cioks Adam Link 4 Isolated Output Power Supply 9/12V fits PT Nano

Regular price ₱4,900.00 PHP
Regular price ₱0.00 PHP Sale price ₱4,900.00 PHP
Sale Sold out
SKU:CIOKS-ADAMLINK

ADAM LINK

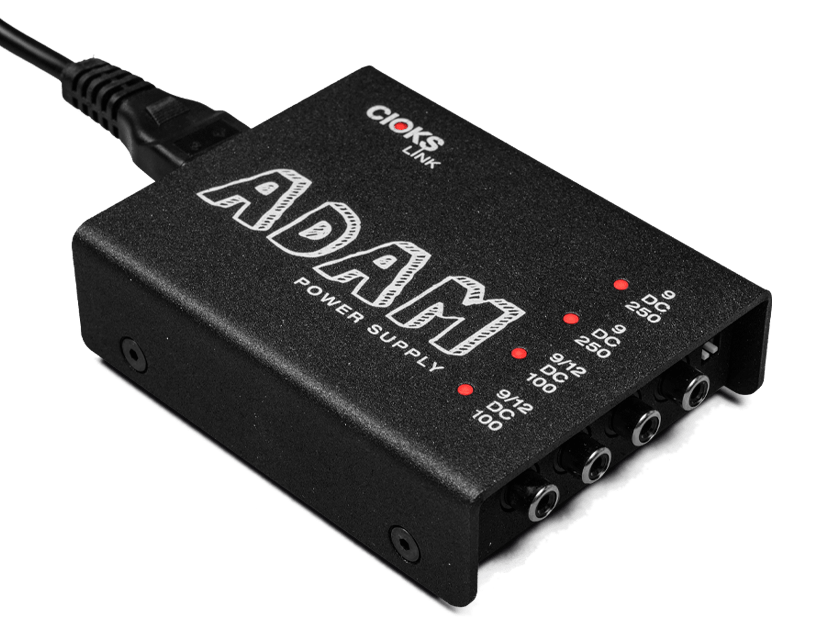

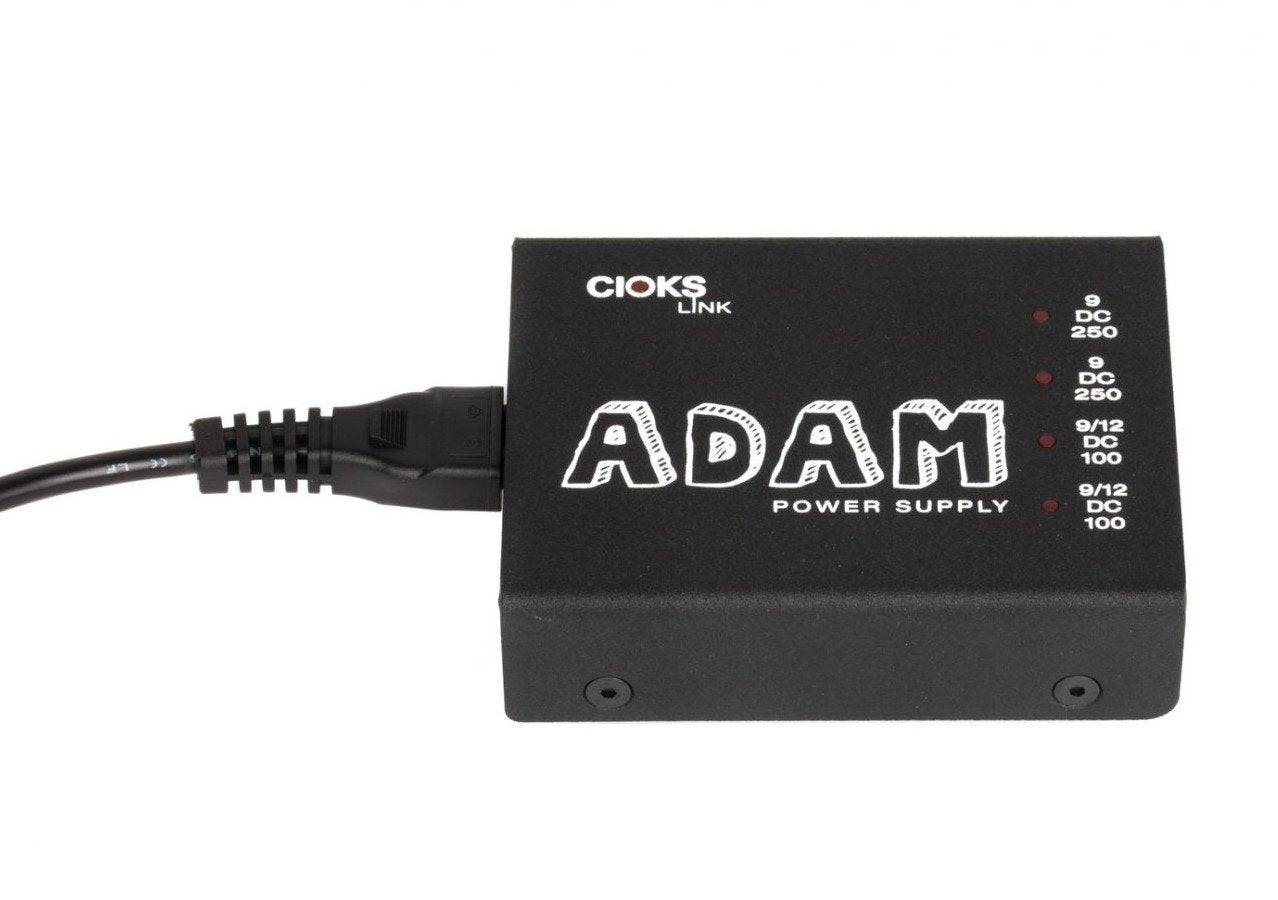

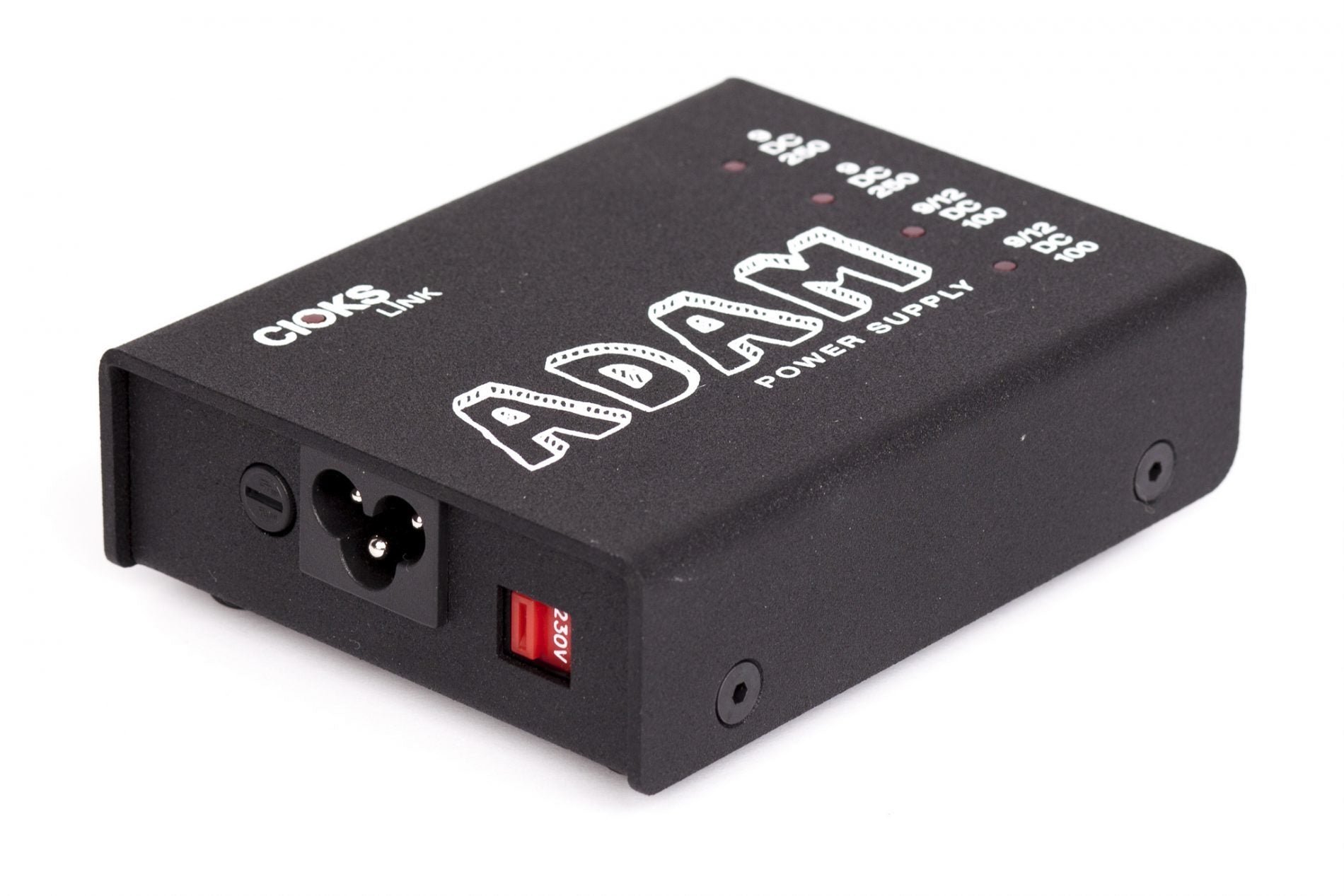

Adam link is a small and very flat power supply for effect pedals with 4 isolated outlets. Being only 31mm high it fits under the flat Pedaltrain nano, mini, new nano+ and all metro boards. It offers voltages 9 or 12V and a total output current of 700mA. The top two fixed 9V outlets will power any two Strymon or other two medium current pedals. The bottom two outlets, configurable to either 9 or 12V, will power two or
even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. If needed, all 4 isolated outlets will give you 9V DC in the default position of the settings switch.

FEATURES

  • 4 isolated outlets with 9 or 12V
  • total output current of 700mA
  • two medium current 9V outlets with 250mA each
  • can power any two Strymon pedals
  • short circuit protection of all outlets
  • LED monitoring of each outlet
  • 120 or 230V mains voltage operation
  • detachable mains power cord
  • CIOKS unique mains link feature
  • ADAM easily adds 4 extra isolated outlets to another link power supply
  • total of 6 Flex cables included
  • Split Flex for powering two pedals of one outlet included

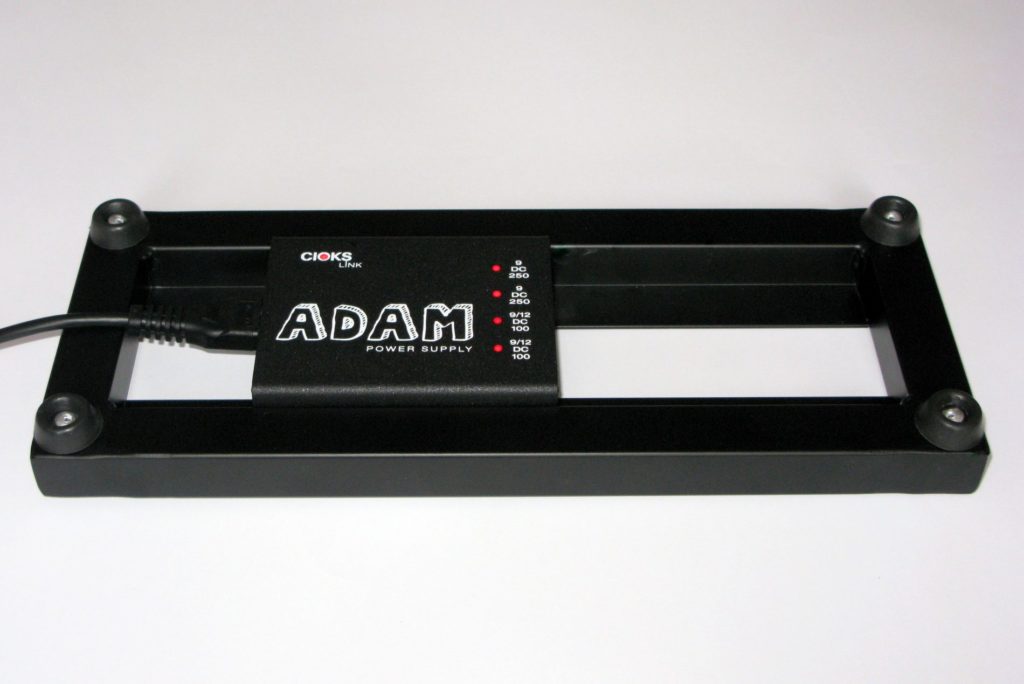

  • super flat design, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
  • compatible with Temple Audio pedalboards
  • all pedalboard mounting hardware included

SPECIFICATIONS

Outlet 1-2: 9 or 12V DC / 100mA each
Outlet 3-4: 9V DC / 250mA each

Size: 115x88x31mm (excl. detachable rubber feet)
Weight: 0,8kg

Warranty period: 5 years worldwide

Order number:
AM    CIOKS ADAM link – Power supply for effect pedals with 4 isolated outlets

VIDEOS

Mounting CIOKS ADAM under Pedaltrain metro or nano+

This is a step-by-step guide on how to mount CIOKS ADAM power supply under a Pedaltrain metro or nano pedalboard.


Mounting CIOKS DC5 or ADAM under a Templeboard

Here you have a guide on how to mount CIOKS DC5 or CIOKS ADAM power supply under a Temple Audio pedalboard – a Templeboard.

DOWNLOADS

CIOKS Adam link – manual – ver. 1.1

CIOKS ADAM link drill template – ver. 1.1 – current version

CIOKS ADAM link drill template – ver. 1.0 – older version
