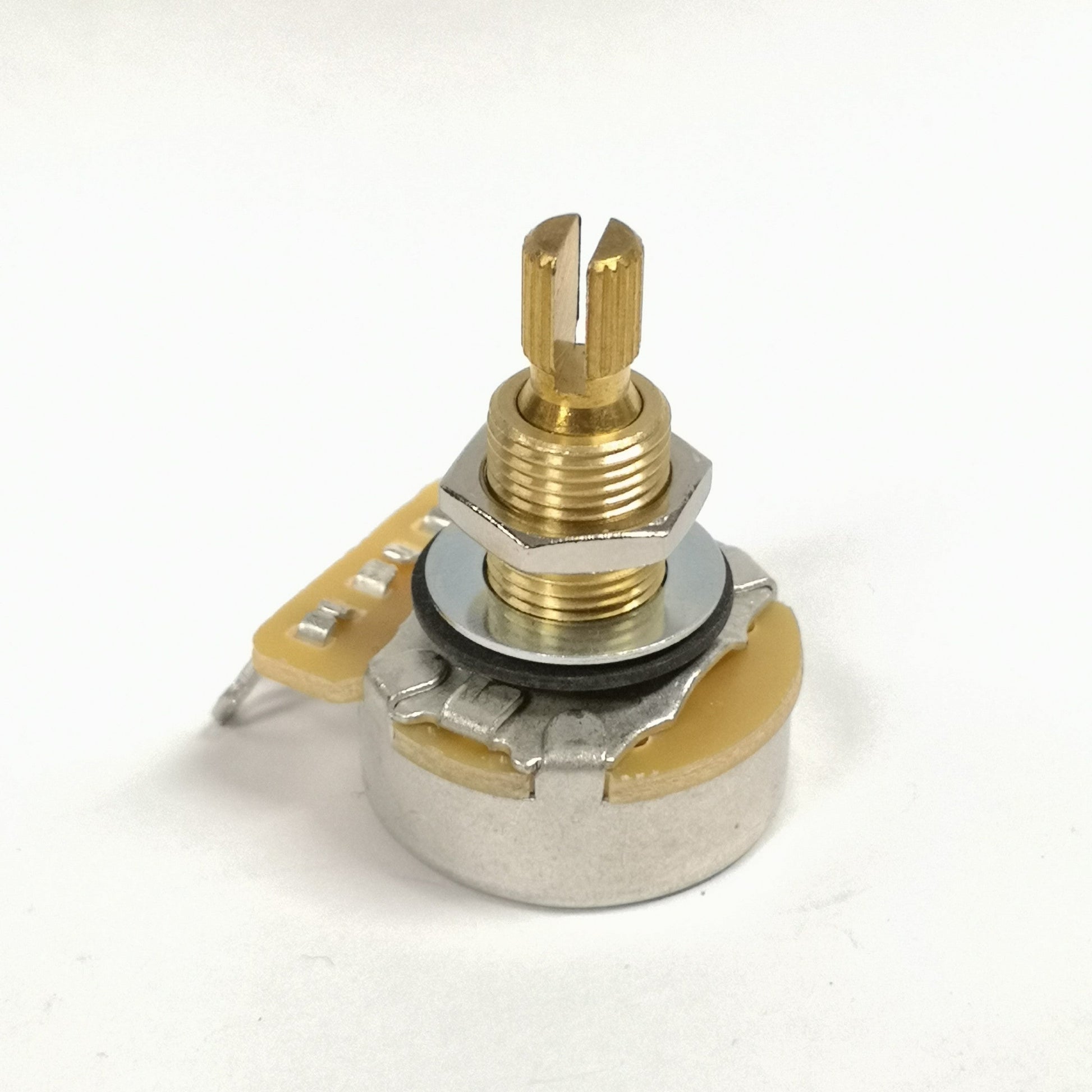

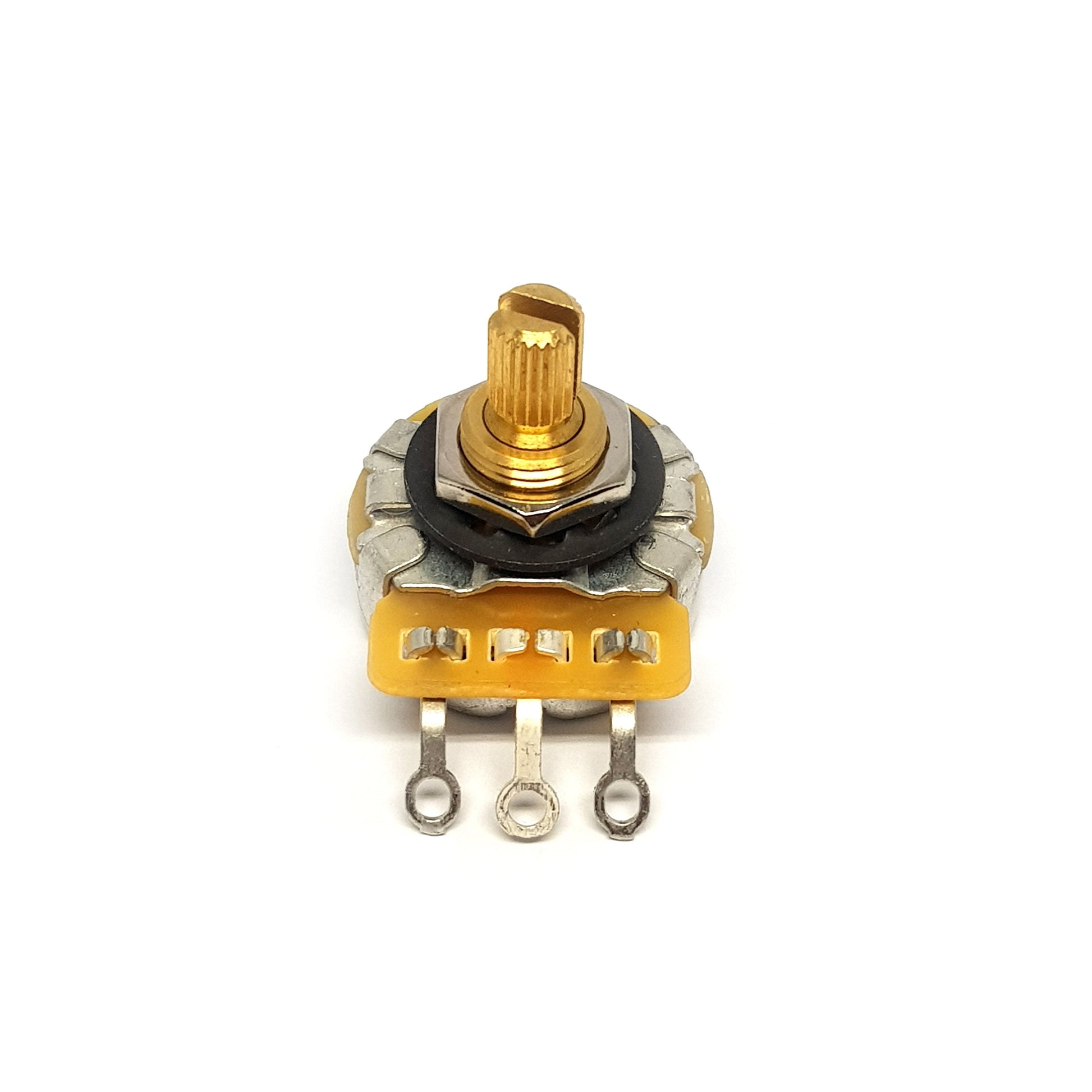

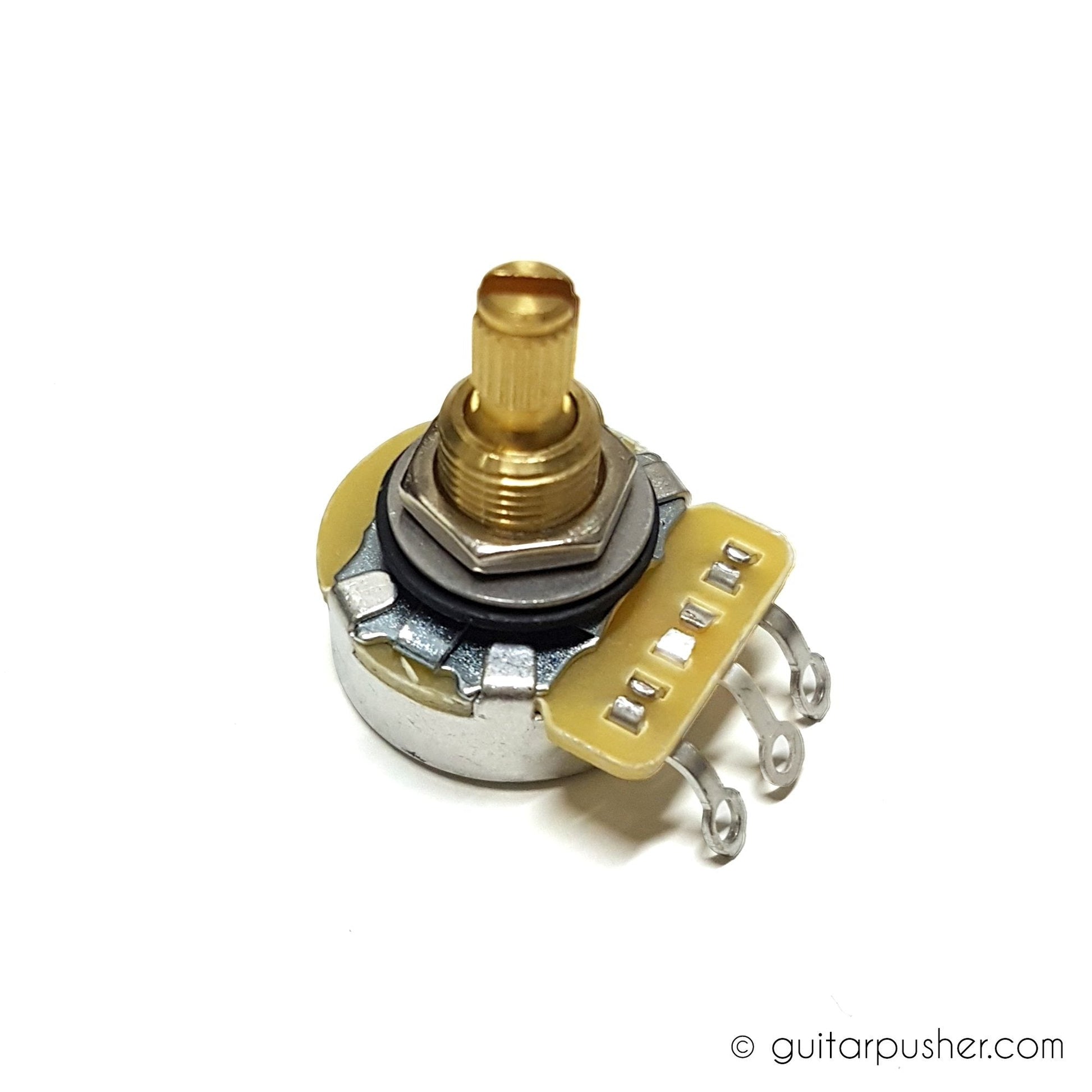

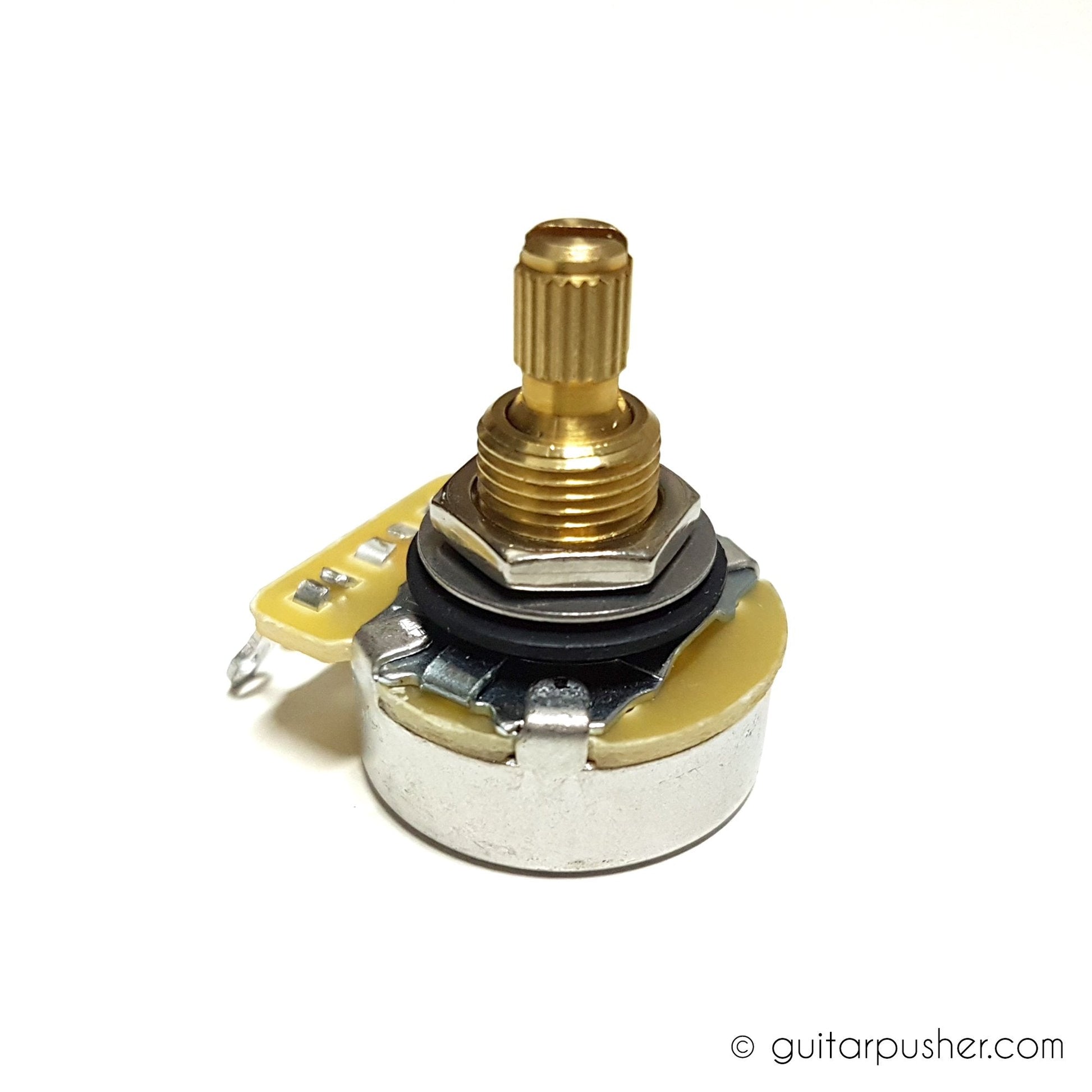

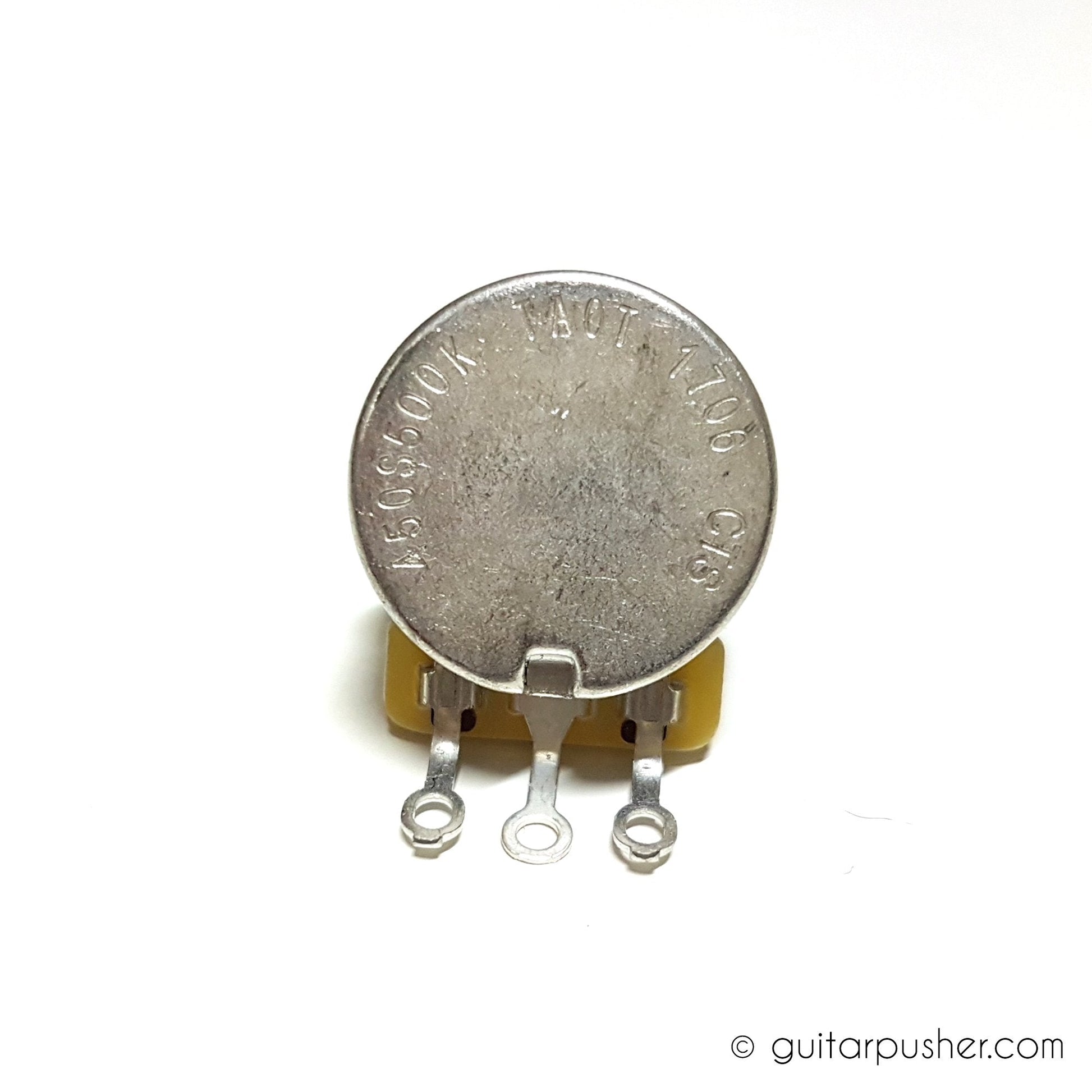

CTS 500k Potentiometer US Size 9.5mm Hole 3/8 inch Tall

CTS 500k Potentiometer US Size 9.5mm Hole 3/8 inch Tall

Regular price ₱300.00 PHP
Regular price ₱0.00 PHP Sale price ₱300.00 PHP
Sale Sold out

    Time to upgrade your guitar with this high-quality potentiometer!

    CTS is an industry name in potentiometers- this is the brand that pretty much every American guitar company has used since the 1940s.

    500k is best used with humbucking pickups such as Les Paul, SG, Modern Guitars, Metal Guitars and Humbucker-equipped passive bass guitars.

    US 9.5mm bushing diameter and 3/8 tall height fits guitars with wood top.  The big 9.5mm hole will fit guitars with big hole.  However, guitars with smaller 8mm hole can be retrofitted by reaming or sanding the hole to make it bigger.

    Specs for this Stock:

    Value 500k
    Type Standard Big Body
    Bushing Diameter 9.5mm (fits US size, but can be retrofitted for Metric by widening the hole)
    Bushing Length 3/8 inch, can fit wood top guitars (need additional nut for pickguard or control plate mount usually fitted for 1/4 short bushing)
    Taper Linear, Audio (Log), or Vintage Taper (pls select variant)
    Shaft 24 Fine Spline, Split Shaft (fits US size knobs)
    Torque High Torque
