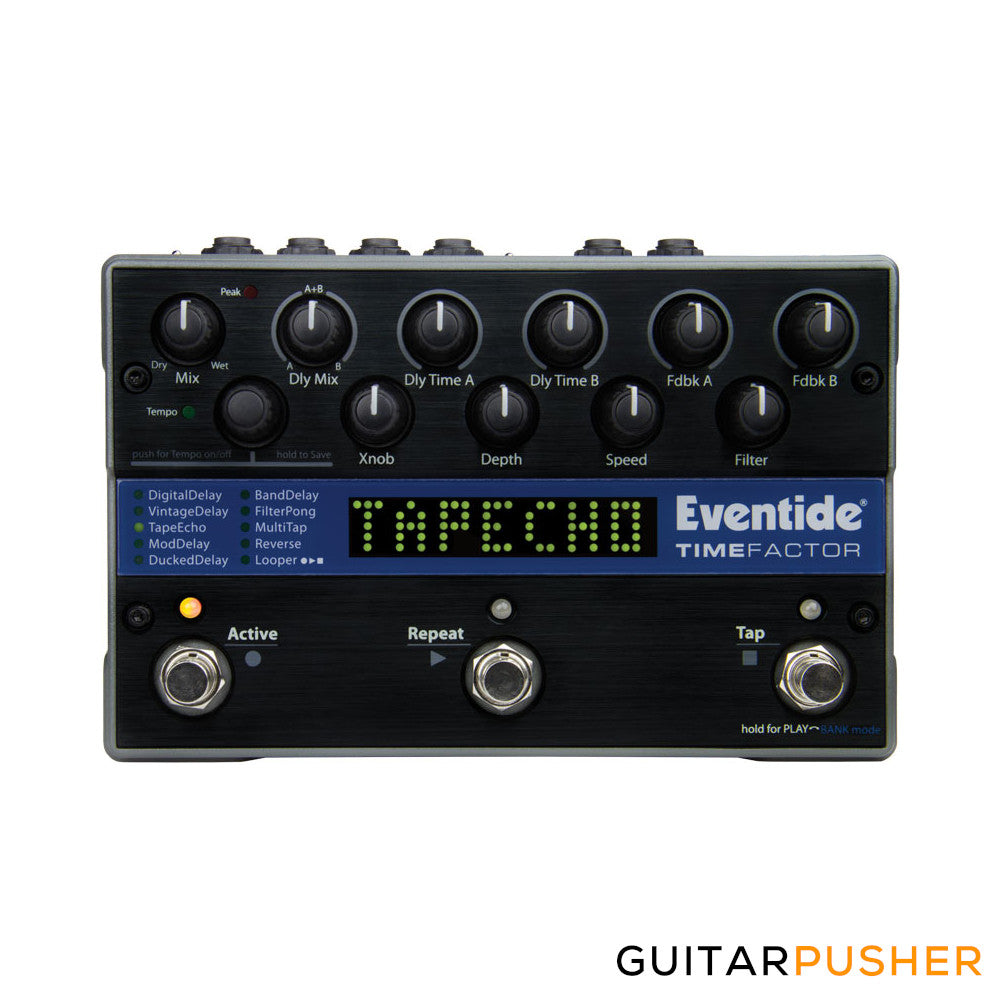

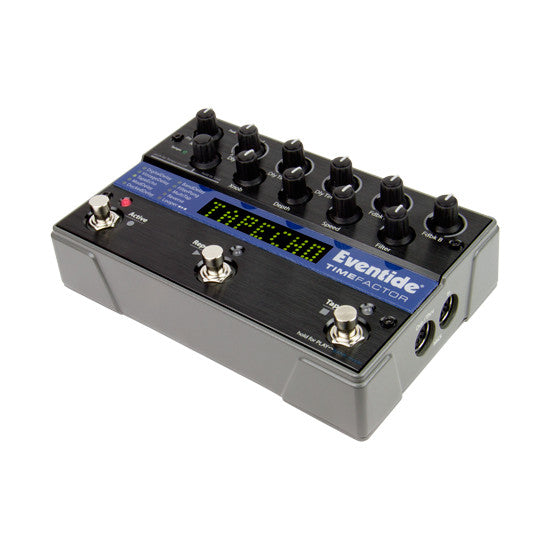

Nine dual delays with dedicated mix, time and feedback controls for the two independent A and B lines. Delay types include MultiTap, Reverse, Mod, Tape, Ducked and AutoPan. Each effect can operate in stereo or dual mono or straight mono and each can have its own tempo subdivision for creative rhythmic echoes. TimeFactor also includes a Looper with variable speed and loop head/tail editing.
Features
All the delays in TimeFactor include an LFO, Filter and a unique Xnob control, as well as an Infinite Repeat footswitch.
- 100 presets
- Studio quality sound
- Instant Program Change
- Real-time control with 10 knobs, MIDI or expression pedal
- Tap Tempo and MIDI Clock Sync/Generate
- True Analog Bypass
- Rugged cast metal construction
- Metal footswitches for instant Preset access
- Mono or Stereo operation
- Guitar or Line Level Inputs and Outputs
H9 Control
The H9 Control app provides remote control access of all Eventide effects pedals. With H9 Control, you can manage parameters, presets and settings with an easy to use interface. Get instant access to over 500 presets that push the boundaries of delay, reverb, pitch-shifting, modulation, distortion and more. H9 Control is available on Android, iOS, Mac and PC.
Dual Delay Effects
TimeFactor comes with 10 Stereo or Mono Delay Effects:
- Digital Delay
- Vintage Delay
- Tape Echo
- Mod Delay
- Ducked Delay
- Band Delay
- Filter Pong
- MultiTap
- Reverse
- Looper
Specifications

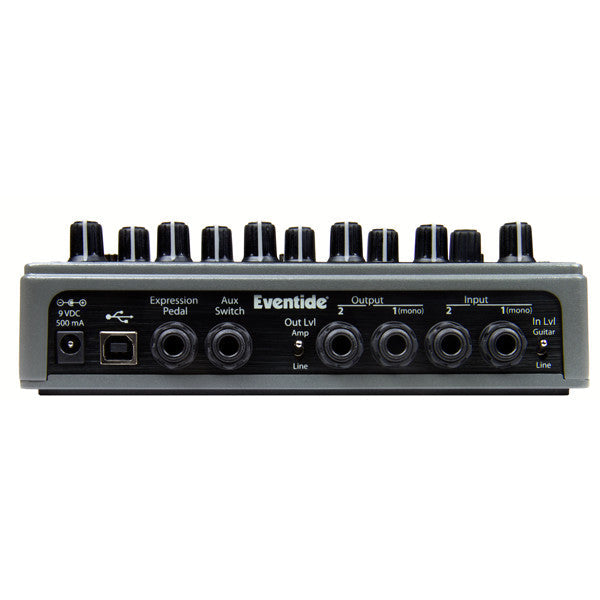

Input 1 (mono) | ¼ inch mono phone jack |
---|---|
Input 2 | ¼ inch mono phone jack |
Output 1 (mono) | ¼ inch mono phone jack |
Output 2 | ¼ inch mono phone jack |
Expression Pedal | ¼ inch mono phone jack |
Aux Switch | ¼ inch stereo phone jack |
USB | Type B Socket. Use 2.0 cables only. |
MIDI In | Five pin DIN (Female) |
MIDI Out/Thru | Five pin DIN (Female) |
AC Adapter Jack | US Power Supply included |
Input Impedance | 500K ohms |
---|---|
Output Impedance | 470 ohms |
Recommended Load Impedance | 10K ohms or greater |
Power | 9VDC, 500mA, Tip hot (+) |
---|---|
Dimensions | English: 4.8" (H) x 7.5" (W) x 2.12" (D) Metric: 122 (H) x 190 (W) x 54 (D) mm |
Weight | 2.15 lbs, 1kG |
