EVH 5150 Iconic Series 15-Watt 1x10" All-Tube Combo Amplifier, Ivory, 230V EUR (2257306410)
EVH 5150 Iconic Series 15-Watt 1x10" All-Tube Combo Amplifier, Ivory, 230V EUR (2257306410)
5150® ICONIC® SERIES 15W 1X10 COMBO
The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone at a more affordable price. Evolving from the revered and flagship EVH 5150III® amplifiers, the Iconic amplifiers deliver the searing sound and growling gain that Eddie Van Halen made famous.
Collaboratively designed by the EVH team and led by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt 1x10 combo has a 6L6 power tube voiced by a complex, multi-stage hybrid preamp section anchored by a pair of ECC83 tubes, providing all the muscle you need for a modern-day practice amp. The cabinet features special internal plywood baffling for tight and increased bass response, and houses a custom-designed EVH 10" Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads.
Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.
Other features include a one-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude. The 1/8" audio in allows for playing along with your favorite drum tracks or songs, while the 1/8" emulated cab headphone/recording out allows for accurate all-tube EVH tone while recording direct or using through any PA system.

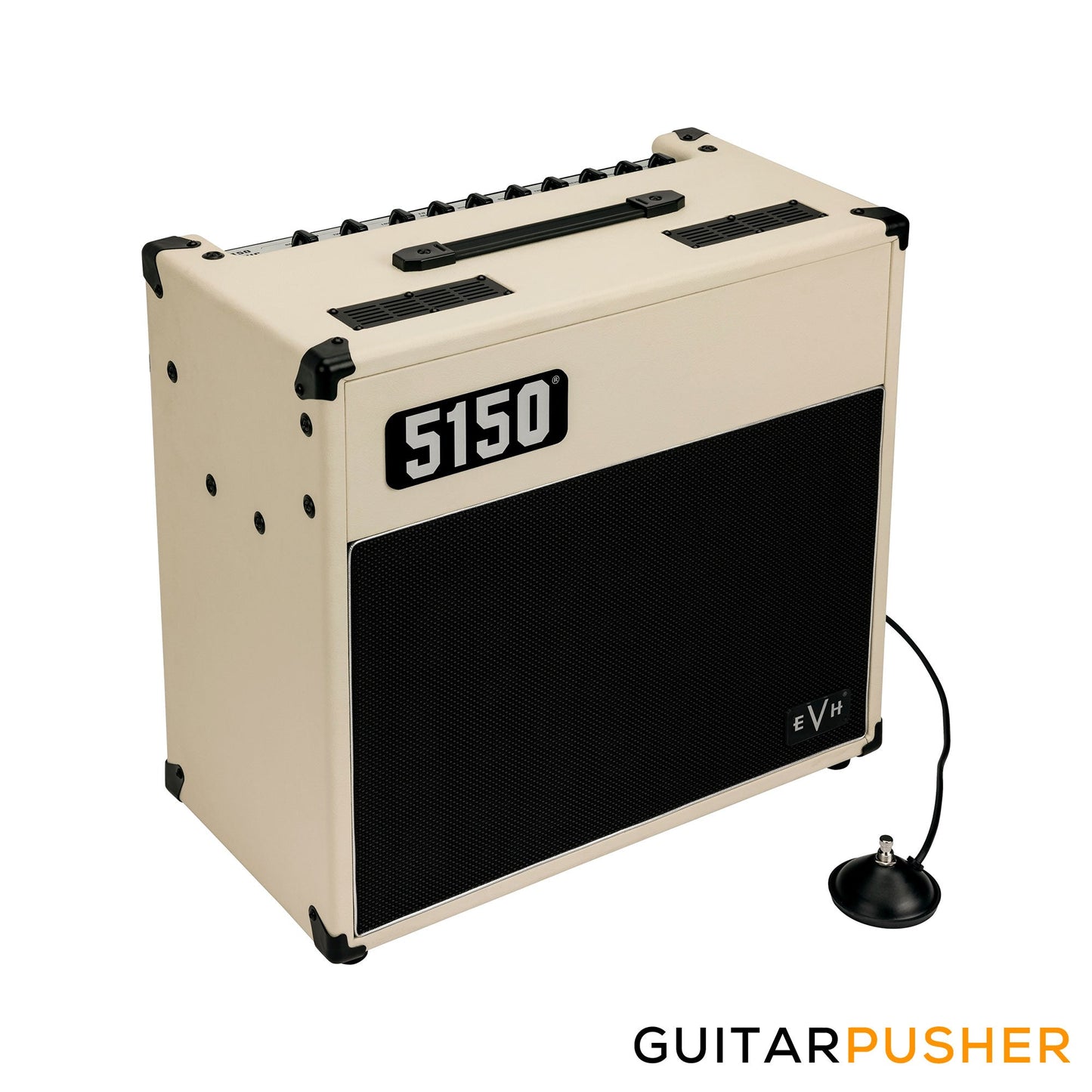

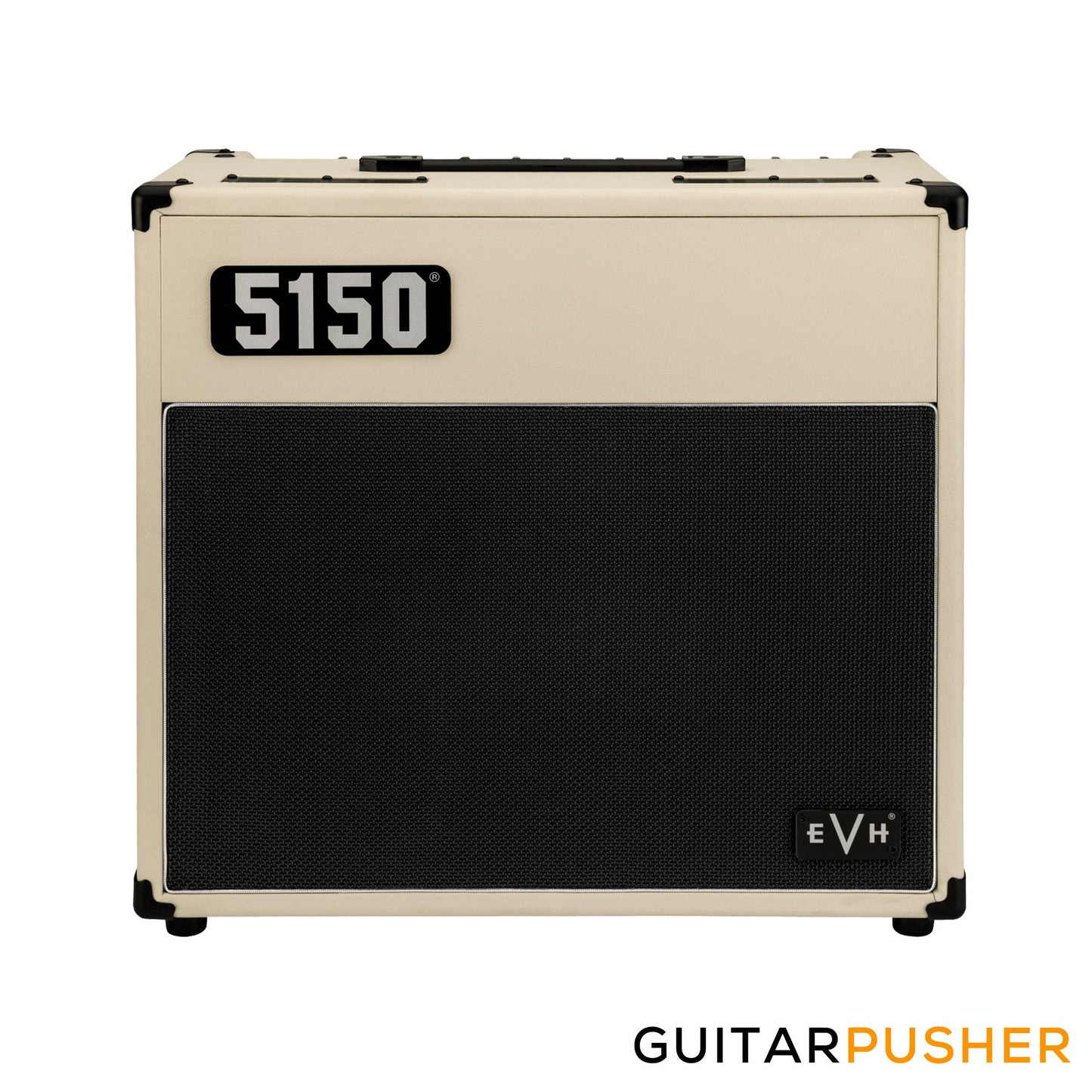

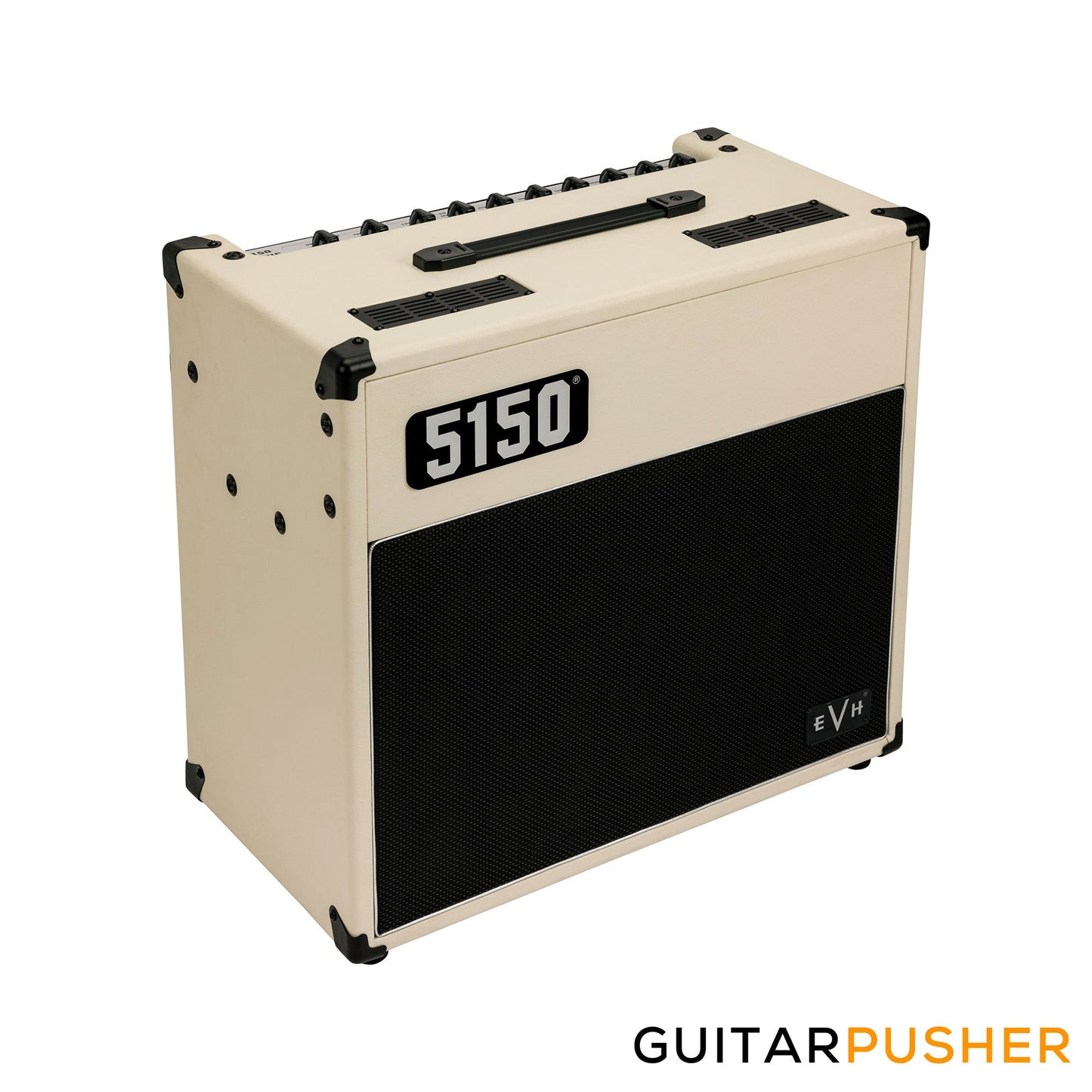

Sporting distinctive EVH style, the 5150 Iconic Series 15W 1x10 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle.
FEATURES
SEARING SOUND AND GROWLING GAIN
The 5150® Iconic® Series 15W 1X10 Combo delivers the culmination of Eddie’s life-long chase for the holy grail of tone—searing sound and growling gain—at an affordable price. Two channels combine to deliver pure tube power that can deliver across any genre. The Green channel boasts an overdrive button to run from lush clean tones to increased gain, while the Red channel’s burn button adds fiery crunch for blistering leads.
TAKE COMMAND
Tone for days is yours for the taking with a comprehensive control layout. Independently dial-in volume and gain for Ch. 1 and 2 for level matching. Shared EQ controls allow you to adjust Low, Mid and High. A global presence knob creates full control over ultra-high frequencies, while the global resonance knob adjusts the power amp’s low frequency response.
PURE TUBE POWER
Two ECC83 preamp tubes erupt with mega overdriven tone when pushed to the max, while one 6L6 power tube up's the ante with plenty of saturated, high-gain attitude synonymous with Van Halen. A single 10” custom-designed EVH® Celestion® speaker has been voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.
BOUNCE AND DECAY
Adjust the Reverb control for the right amount of bounce and decay for any room.
BEHIND THE SCENES

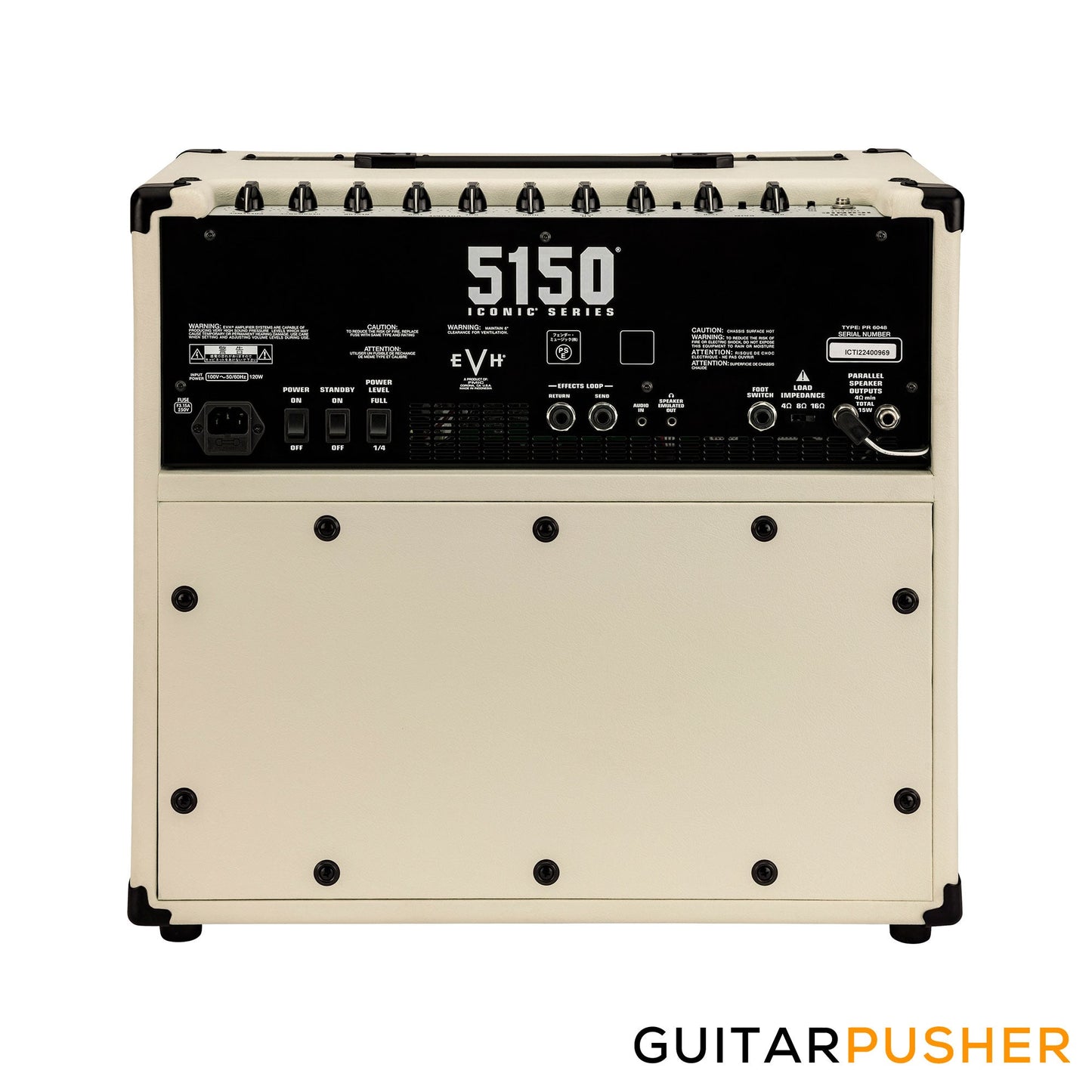

This amp also features a 1-button footswitch that allows you to quickly toggle between the channels. A speaker-emulated DI 1/8" (line out is located on rear panel) allows for accurate all-tube EVH tone for recording direct or using through any PA system.
SPECS
GENERAL
Model Number | 2257300010 |
---|---|
Series | 5150® Iconic® |
Color | Black |
Amplifier Type | Tube |
Height | 18.5" (47.0 cm) |
Width | 19.69" (500 mm) |
Depth | 10.25" (26.04 cm) |
Weight | 38.2 lbs. (17.3 kg) |
ELECTRONICS
Channels | Two - Clean/Overdrive and Lead/Burn |
---|---|
Voltage | 120V |
Wattage | 15 Watts |
Effects | Reverb |
Effects Loop | 1/4" (Send/Return) |
Inputs | One - 1/4" |
Headphone Jack | 1/8" Stereo |
Line Out | One - (1/8" Stereo) |
Speaker Jack | Two - 1/4" Parallel |
Rectifier | Solid State |
Total Impedance | 4, 8, or 16 ohms |
Power Cable | IEC |
CONSTRUCTION
Grill Cloth/Material | Black |
---|---|
Amplifier Covering | Textured Vinyl |
Cabinet Material | MDF w/ Plywood Baffle |
TUBES
Preamp Tubes | 2 x ECC83S |
---|---|
Power Tubes | 1 X 6L6 |
SPEAKERS
Speakers | One - 10" EVH® Celestion® Custom |
---|---|
Speaker Wattage | 15 Watts |
HARDWARE
Control Knobs | Black Chicken-Head Style Pointer |
---|---|
Handle | Molded Plastic Strap with Black Powder Coated Caps |
Front Panel | Brushed Aluminum |
Effects | Reverb |
MISCELLANEOUS
Other Features | 1/4 Power Level Switch |
---|
ACCESSORIES
Footswitch | 1-Button Footswitch Included |
---|---|
Footswitch Connection Type | 1/4" |
