5150® SERIES STANDARD, EBONY
Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series Standard is an iconic blast from the past that blends both throwback and modernized features.

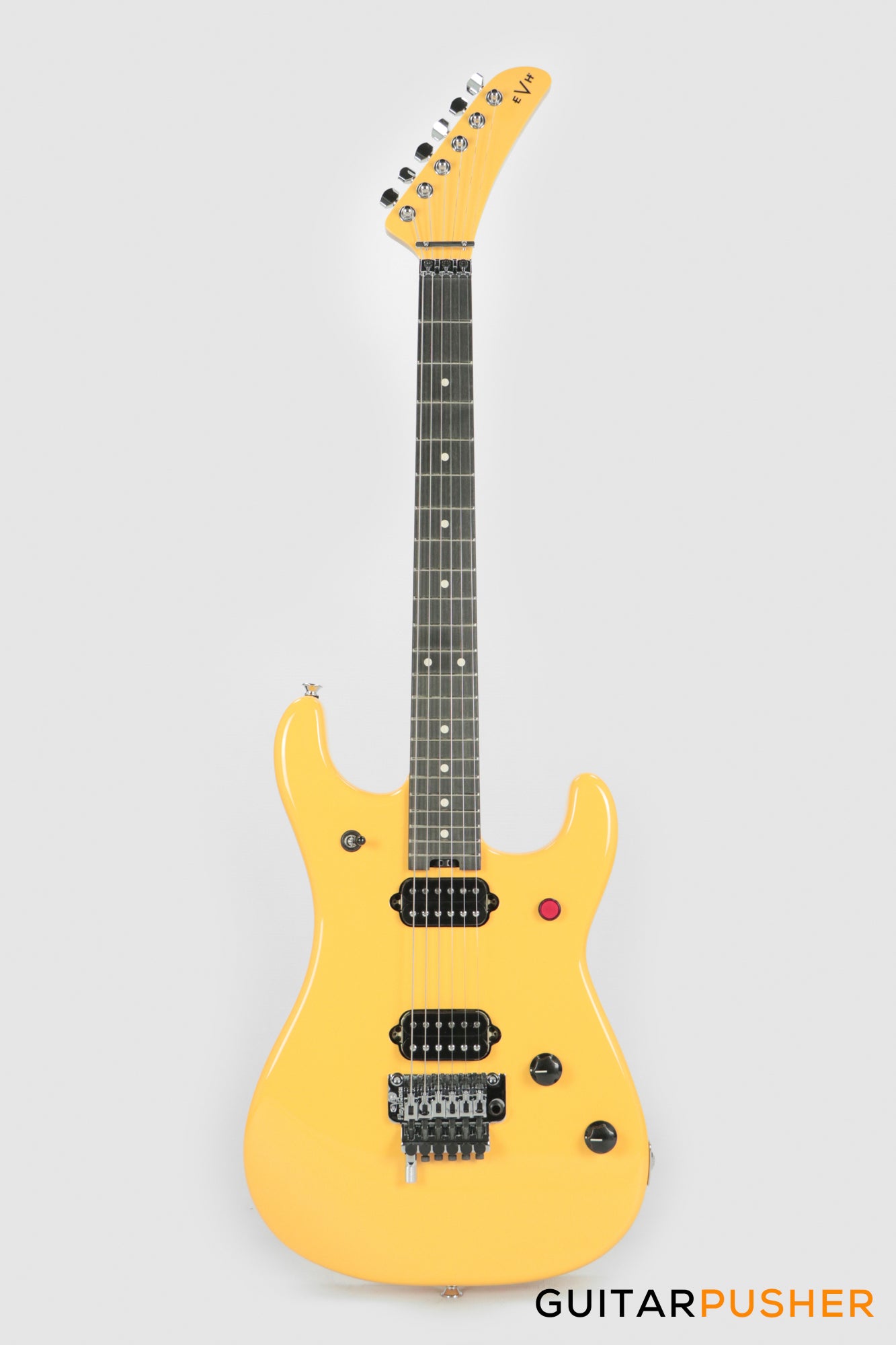

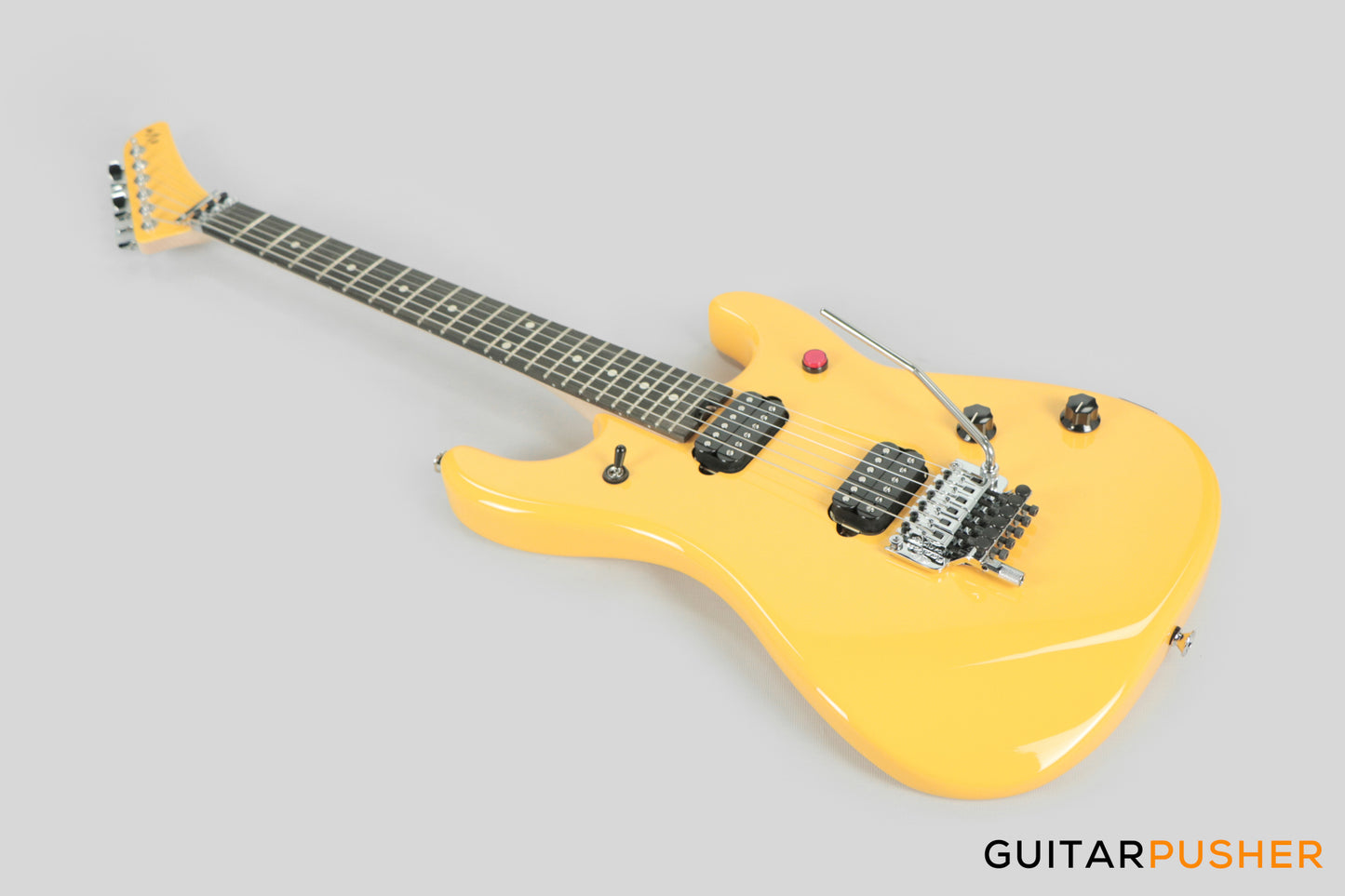

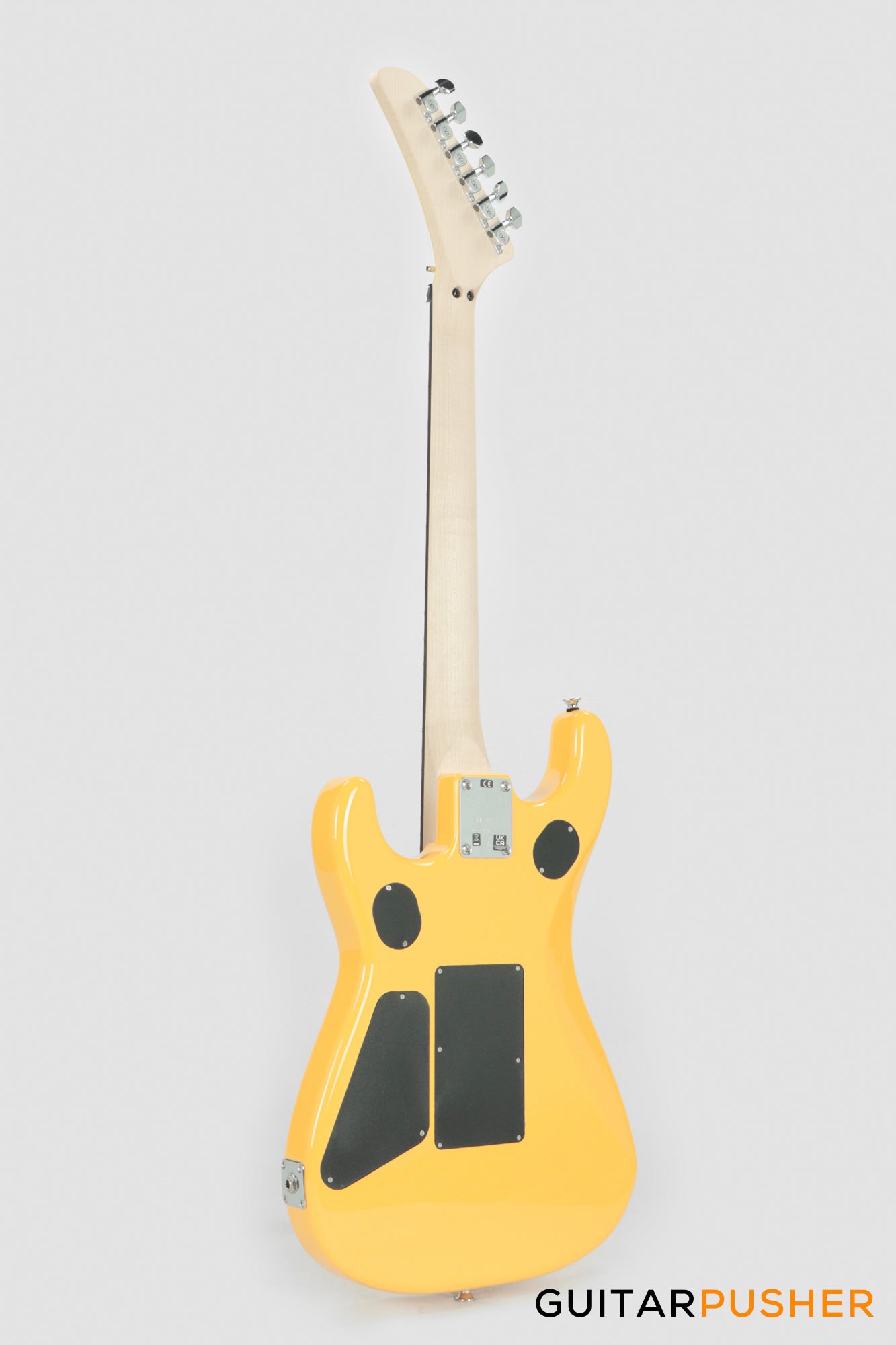

Like its predecessor, the 5150 Standard features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

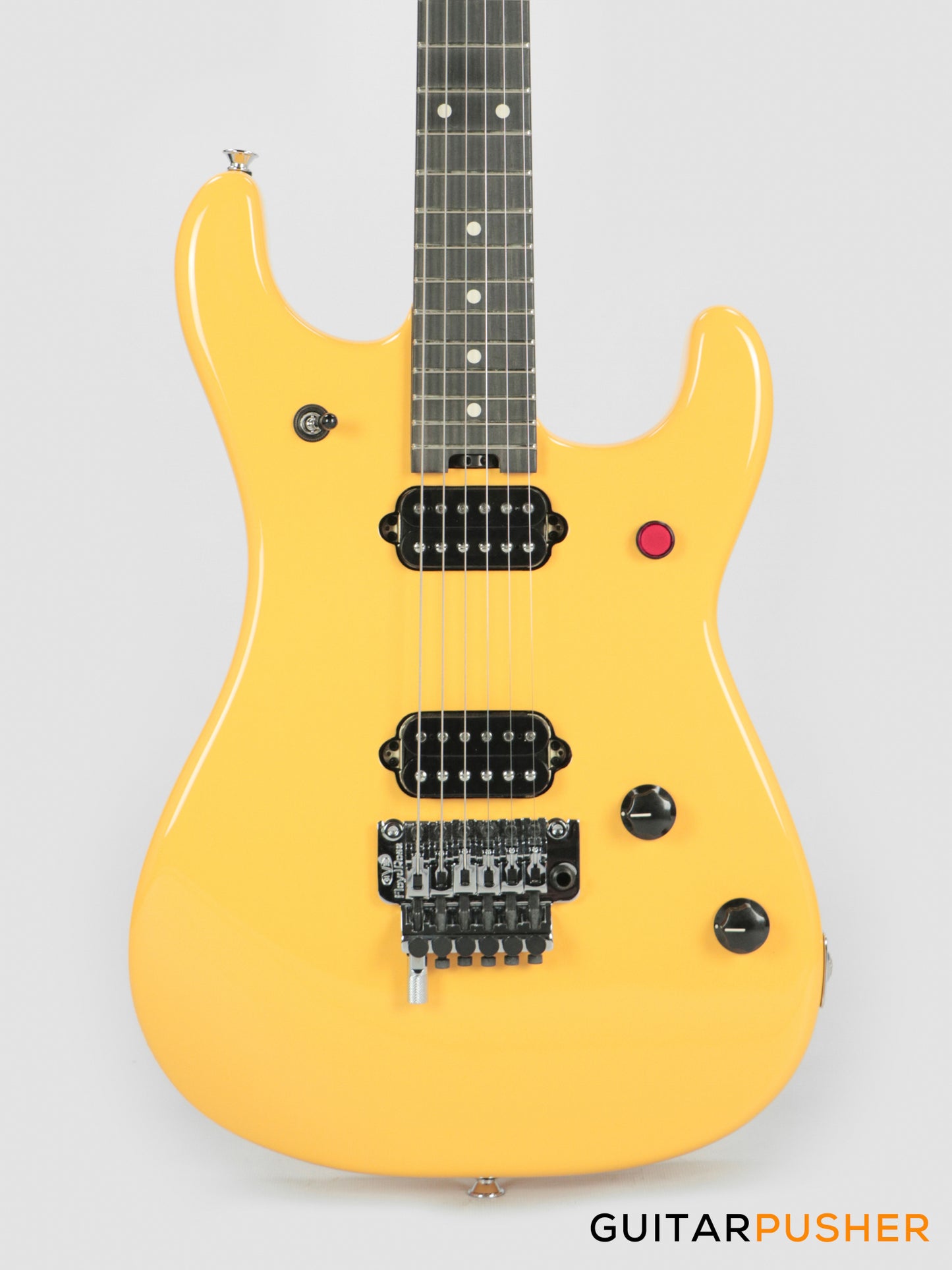

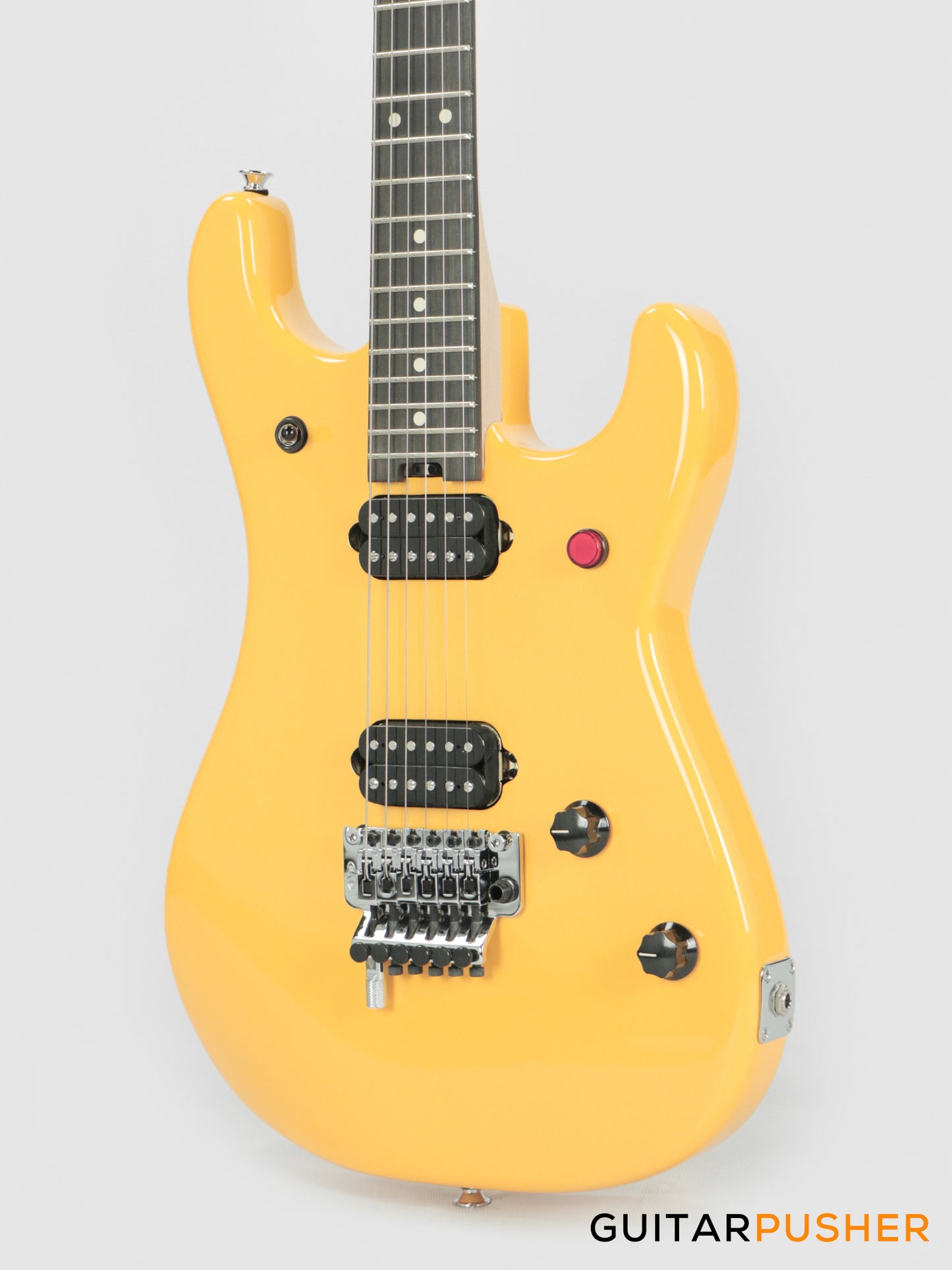

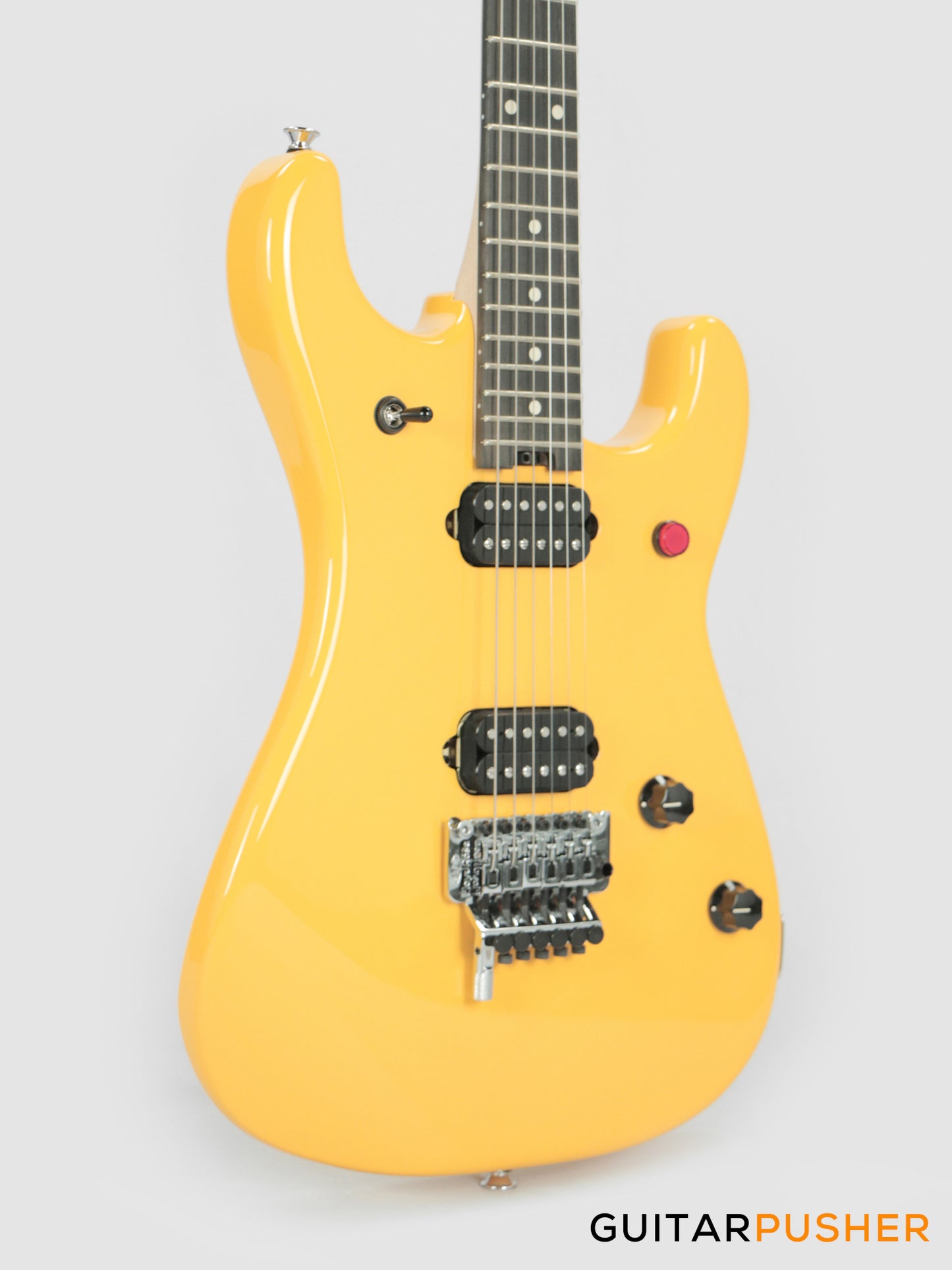

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."
Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.
SPECS
GENERAL
Model Number | 5108001504 |
---|---|
Series | 5150® Series Guitars |
Color | EVH Yellow |
Number of Strings | 6 |
Orientation | Right-Hand |
ELECTRONICS
Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
---|---|
Neck Pickup | Direct Mount EVH® Wolfgang® Humbucking |
Pickup Color | Black |
Controls | Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot) |
Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
Auxiliary Switching | Kill Switch |
Pickup Configuration | HH |
NECK
Neck Material | Quartersawn Maple |
---|---|
Neck Construction | Bolt-On with Graphite Reinforcement |
Neck Thickness | .790" at 3rd Fret & .810" at 12th Fret |
Neck Finish | Hand-Rubbed Satin Urethane |
Neck Shape | EVH® Modified "C" Backshape |
Scale Length | 25.5" (64.77 cm) |
Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
Fingerboard Material | Ebony |
Number of Frets | 22 |
Fret Size | Jumbo |
Nut Material | Floyd Rose® R3 Locking |
Nut Width | 1.685" (42.8 mm) |
Position Inlays | Cream Dot |
Side Dots | Cream |
Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
Truss Rod Wrench | 2.5 mm Hex |
String Trees | Floyd Rose® Retainer Bar |

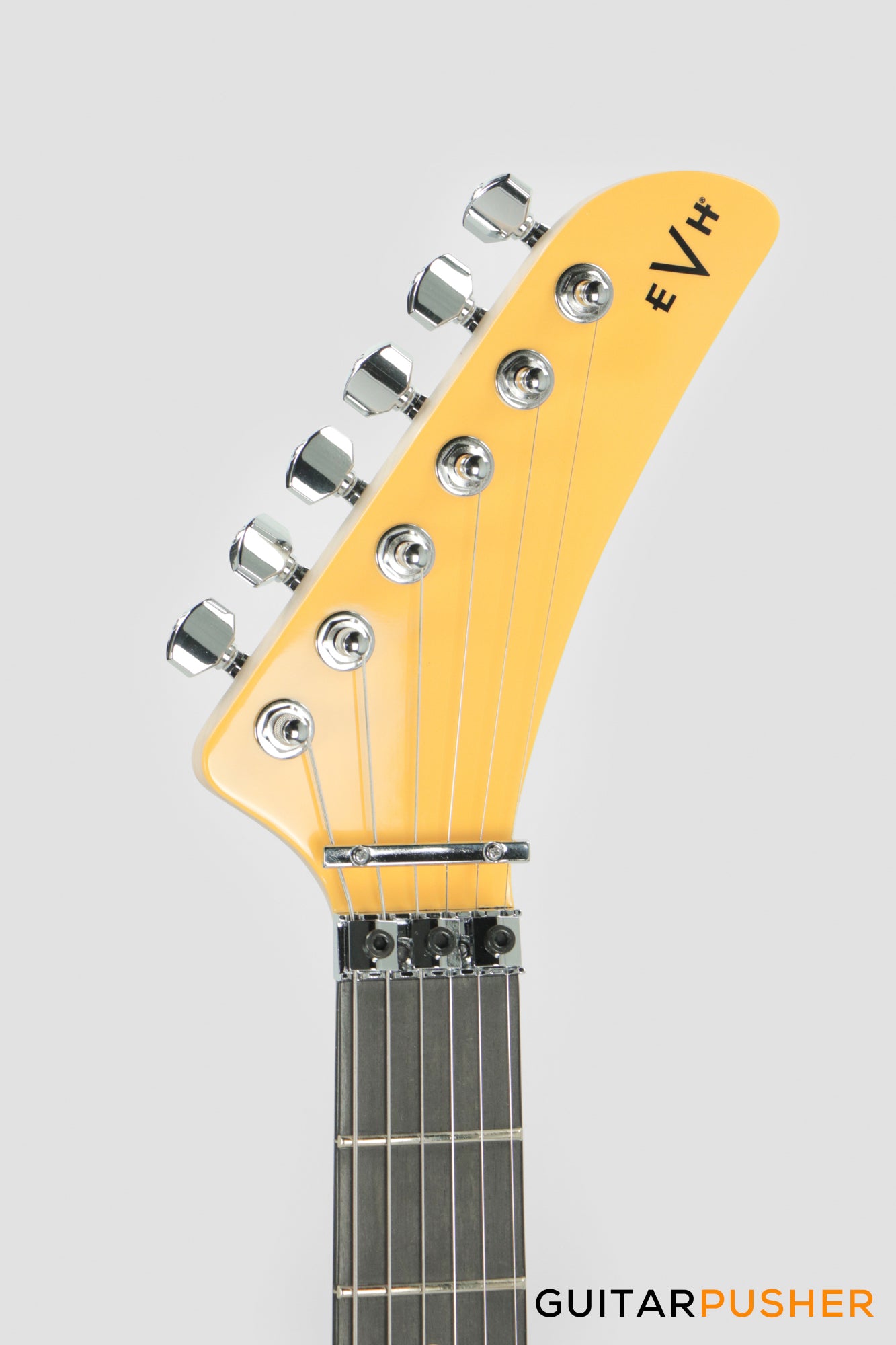

Headstock | EVH® Hockey Stick |
Neck Plate | 4-Bolt Standard |
HARDWARE
Bridge | Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
---|---|
Hardware Finish | Black |
Tremolo Arm | Floyd Rose® 1000 Series Locking |
Tremolo Block | Brass |
Tuning Machines | EVH®-Branded Gotoh® |
Control Knobs | Black Knurled with White Indicator |
Switch Tip | Black |
MISCELLANEOUS
Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
---|---|
Strap Buttons | Oversized |
Case/Gig Bag | Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006) |
ACCESSORIES
Included Accessories | Tremolo Arm, Hex Keys & User Manual |
---|
