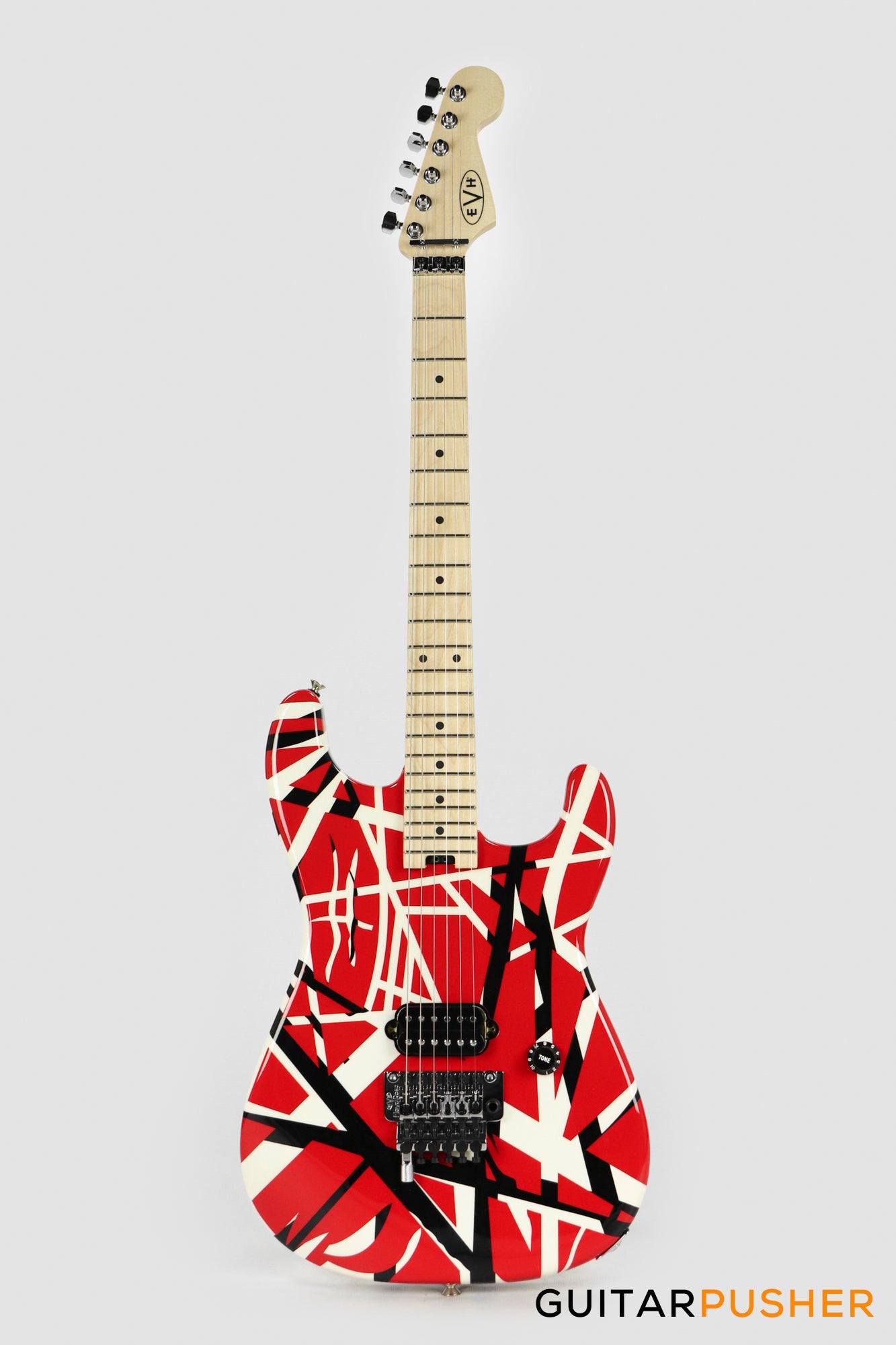

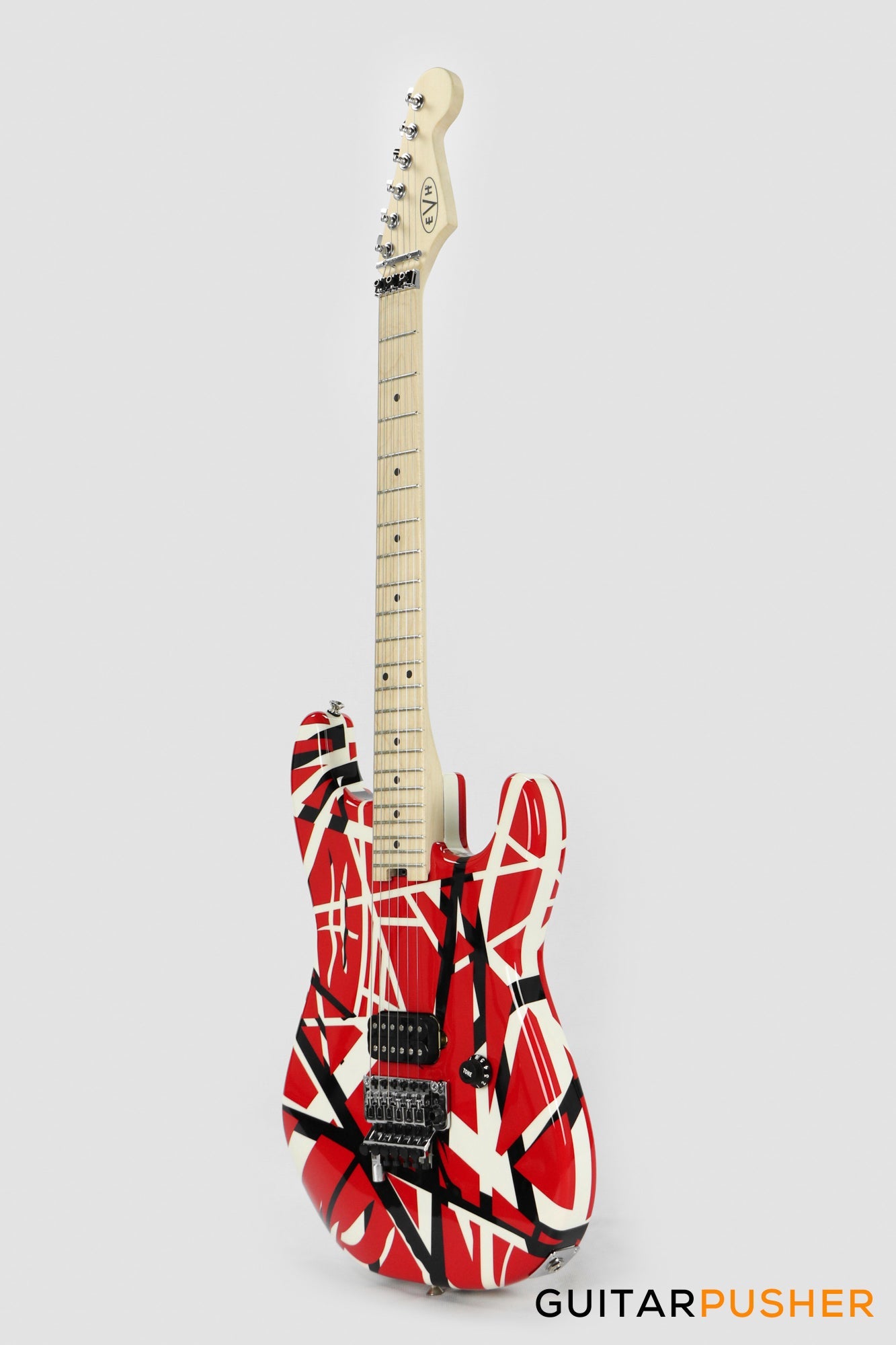

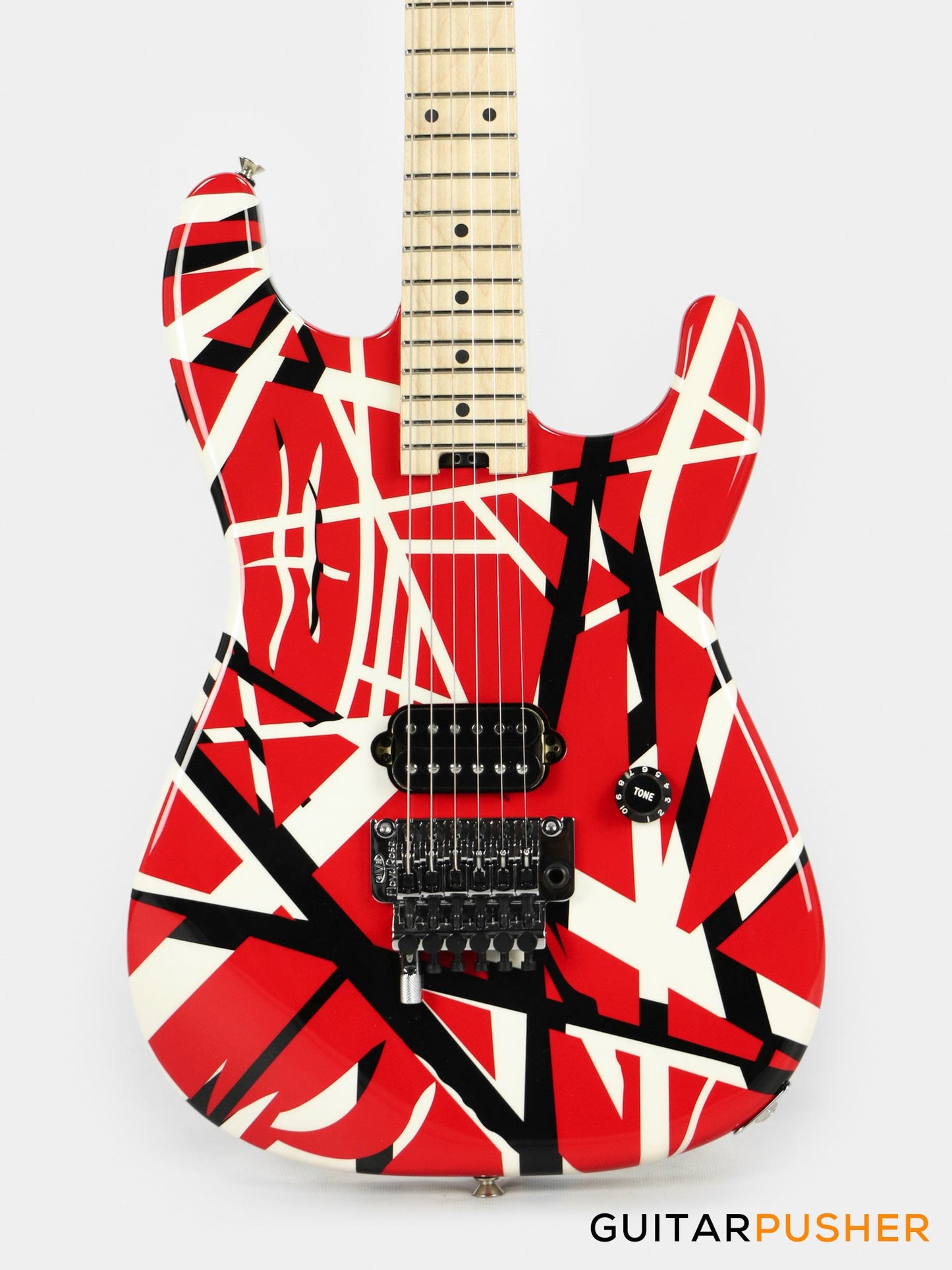

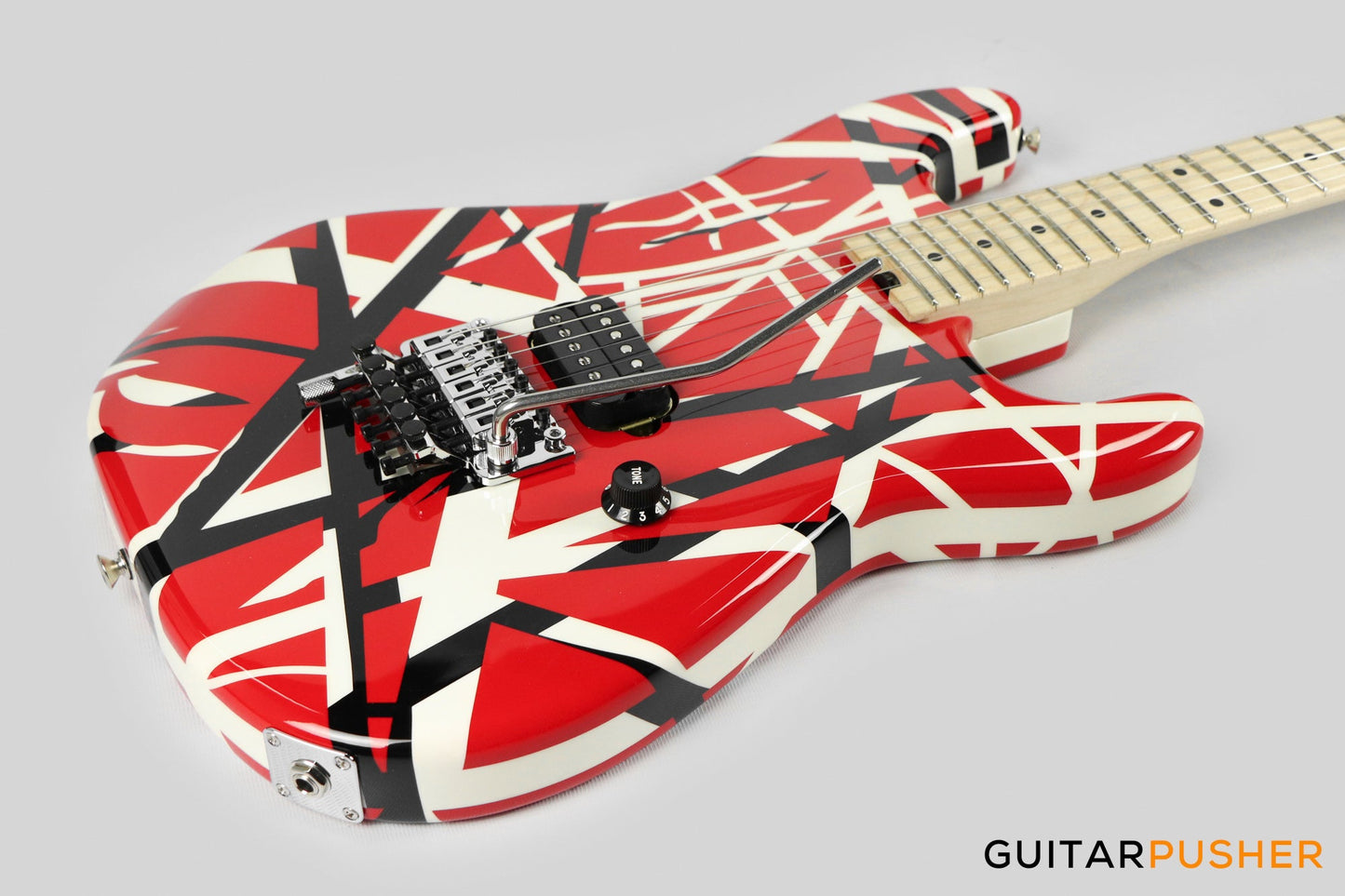

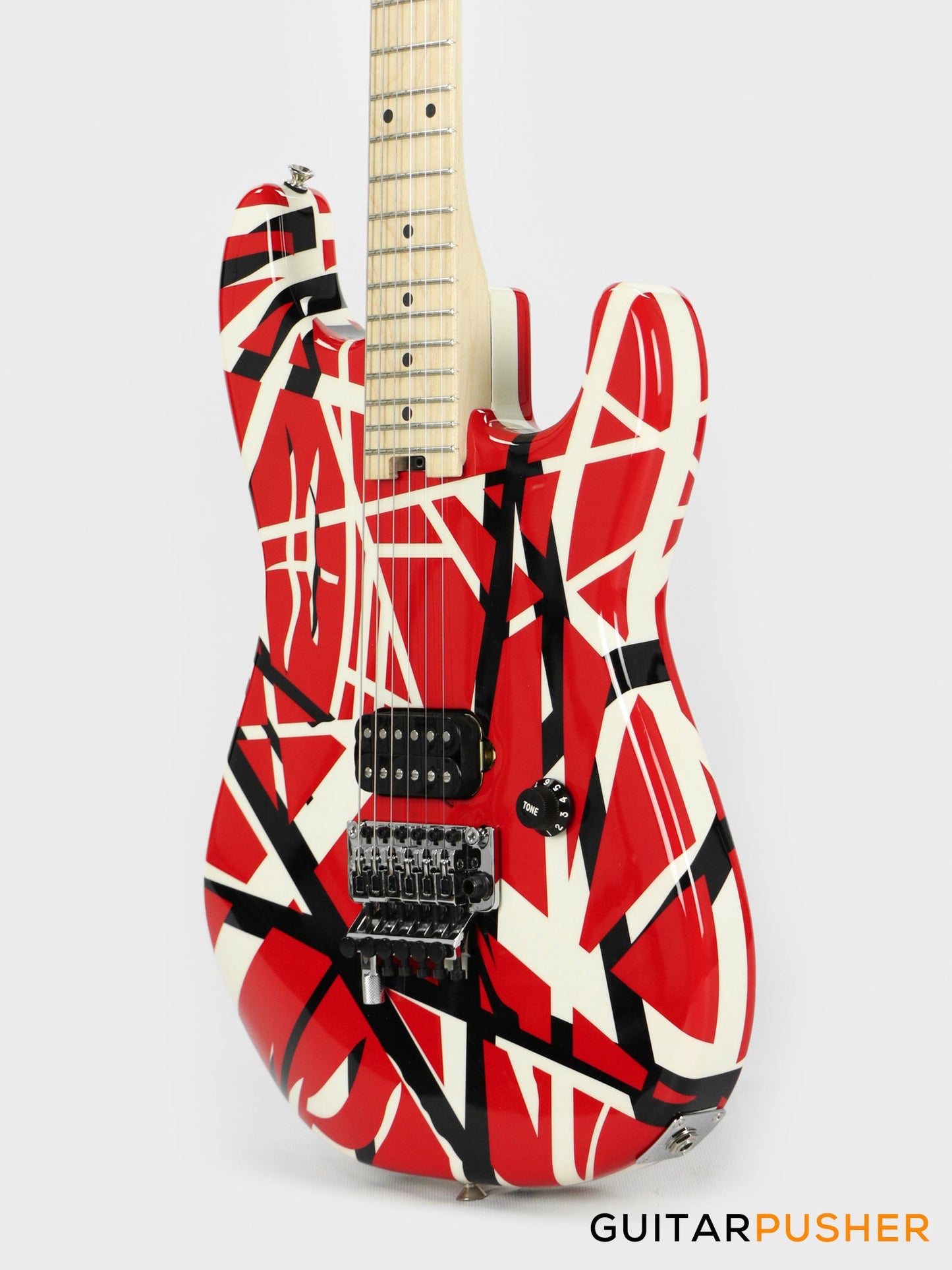

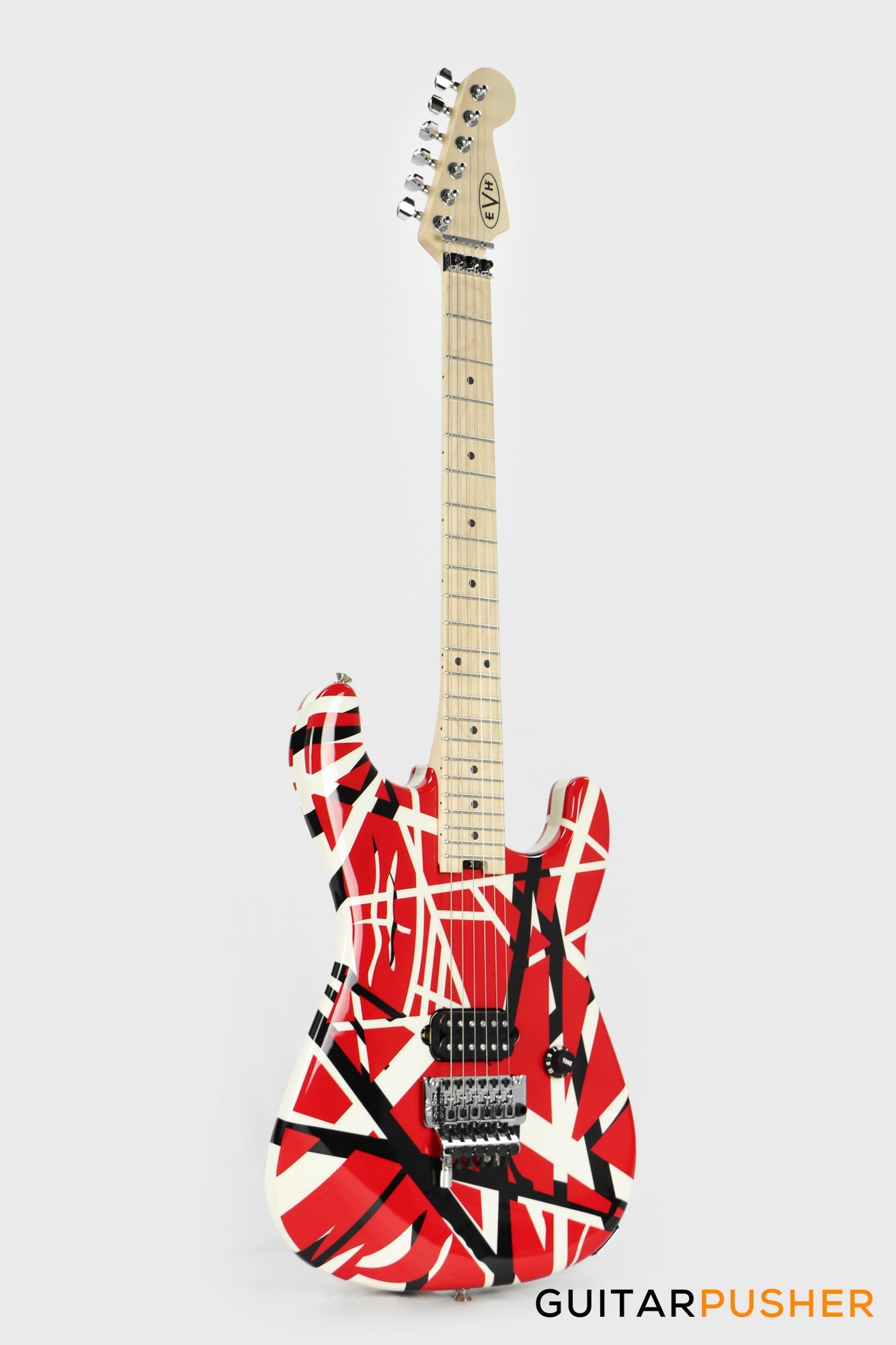

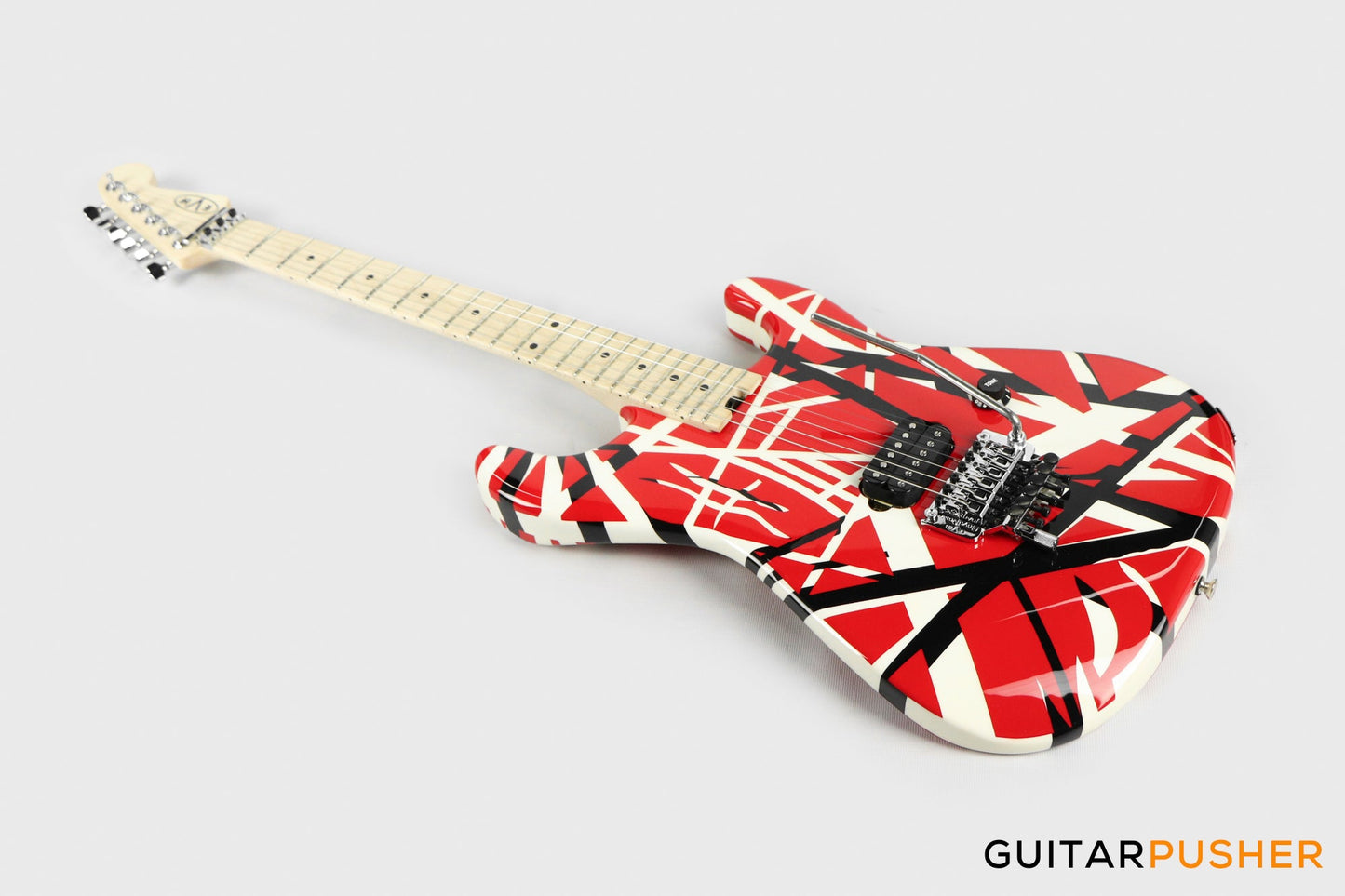

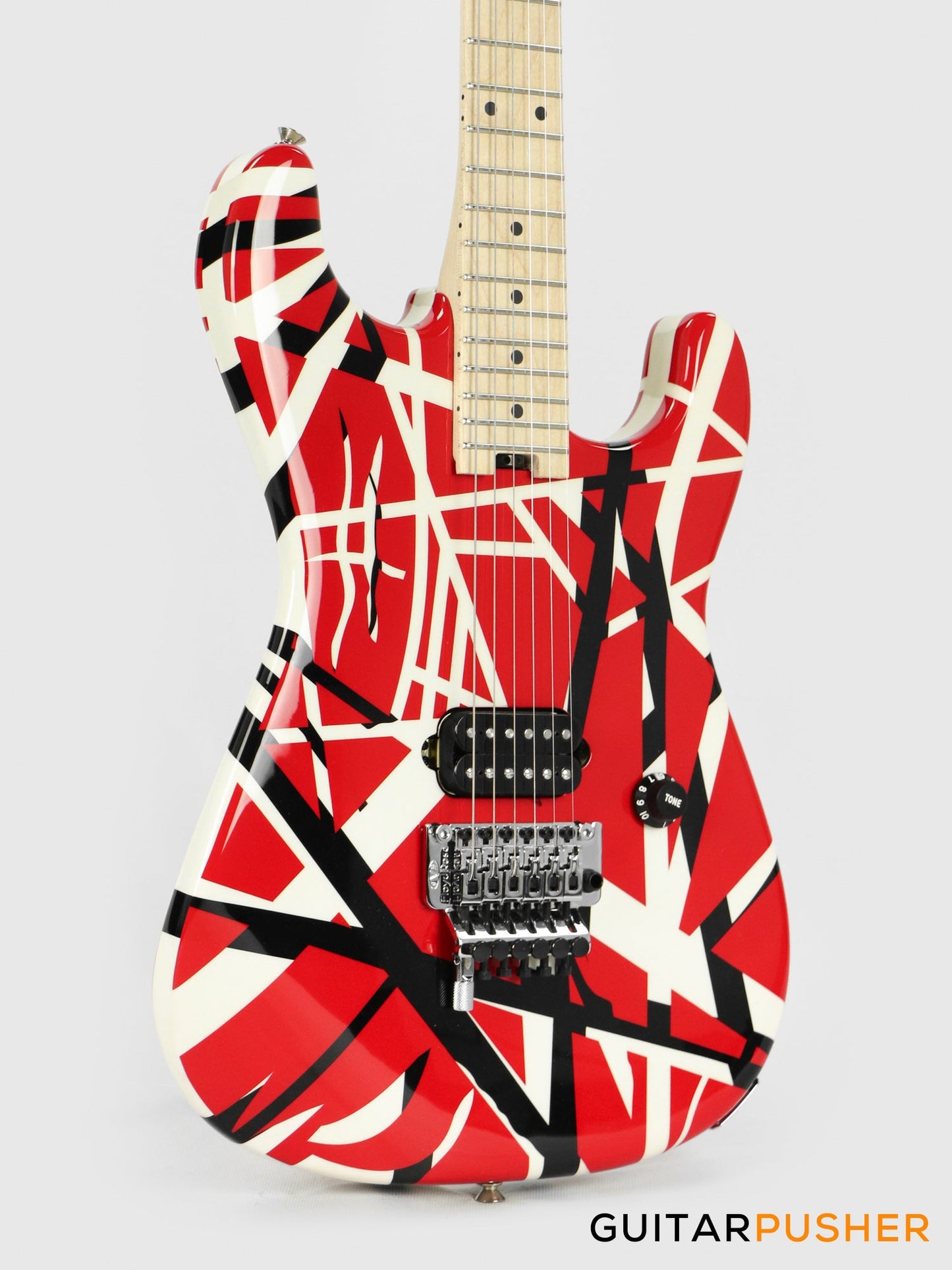

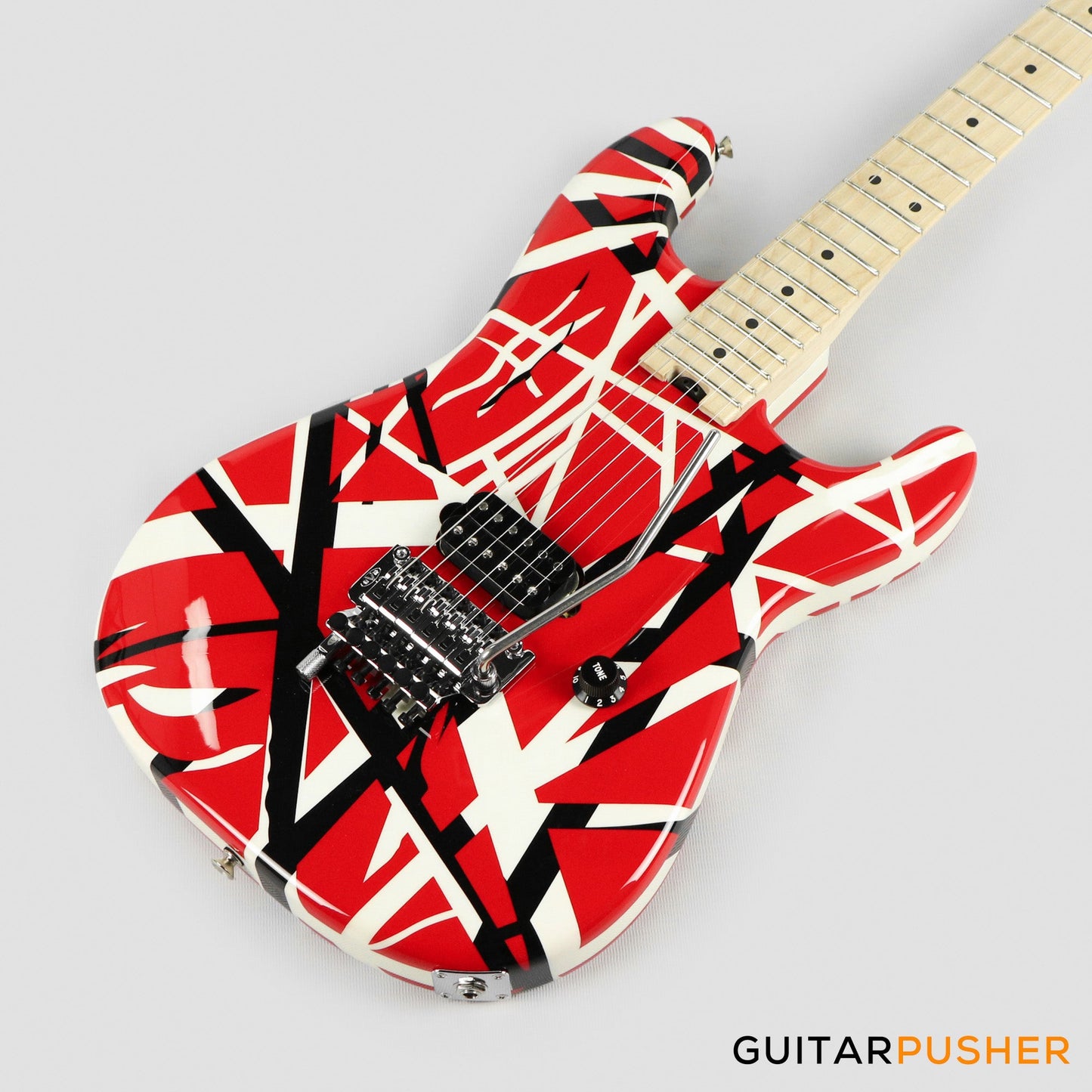

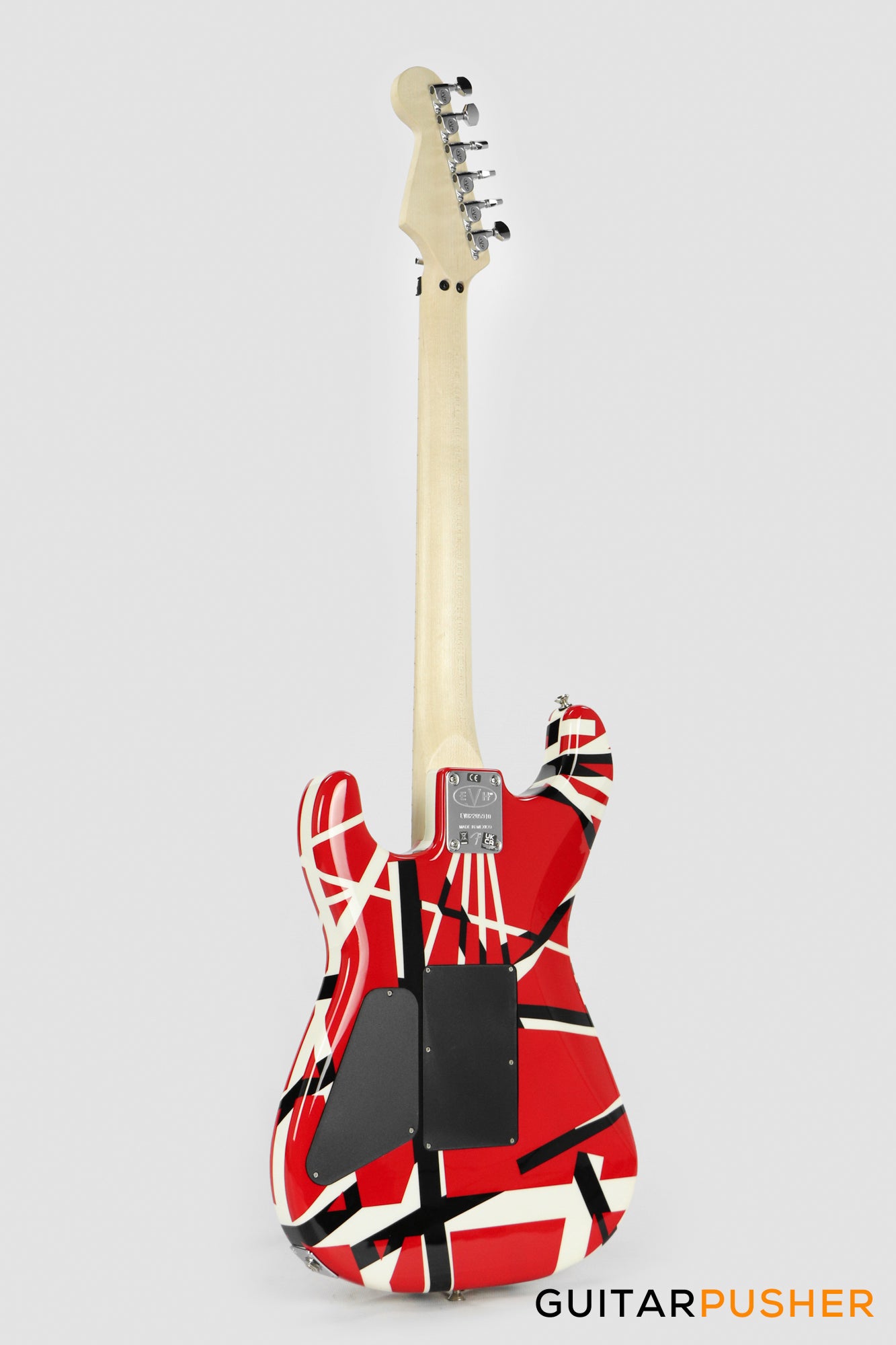

EVH Striped Series Stratocaster Electric Guitar - R/B/W

FEATURES

BOLT-ON QUARTERSAWN MAPLE NECK WITH EDDIE VAN HALEN'S MODIFIED "C" BACKSHAPE

Bolt-on is a type of neck construction that joins the maple neck to the body of the guitar with screws or bolts, resulting in bright tone with more control. The quartersawn grain runs the length of the neck and as well as being visually appealing, is less susceptible to shrinking, warping or splitting. Graphite-reinforcement rods flank the truss rod for even more increased neck stability, while your fretting hand will feel right at home on the modified “C”-shape neck, which has a .790” thickness at the 3rd fret and .825” at the 12th fret.

12"-16" COMPOUND RADIUS MAPLE FINGERBOARD WITH 22 JUMBO FRETS

The innovative 12"-16" Compound Radius Maple Fingerboard design gradually flattens toward the heel from its smaller and more rounded profile at the nut for unparalleled comfortable chording and riffing near the nut and seamless bending near the heel. Maple is a dense wood that produces bright, snappy tones, articulate notes with bite and a tight low end. Versus a 24-fret neck, a 22-fret layout shifts the neck pickup farther away from the bridge, centering it at the “sweet spot” and resulting in an overall warmer tone. The jumbo fret wire slightly increases the distance between string and fingerboard for seamless and comfortable bends.

DIRECT MOUNT EVH WOLFGANG HUMBUCKING PICKUP

Not all humbuckers are created equal. Direct mount EVH Wolfgang humbuckers with Alnico 2 magnets are hotter and harness Eddie’s scorching signature lead tone that captivated the world of rock ‘n’ roll in the ‘70s and ‘80s. These pickups deliver rich harmonics, cutting highs and snarling mids in spades.

EVH-BRANDED FLOYD ROSE LOCKING TREM, R3 LOCKING NUT AND EVH D-TUNA

Eddie Van Halen was the first player to popularize the innovative Floyd Rose locking tremolo, even advising Floyd Rose on his early designs to integrate round disc finger-type tuners that you would see on a cello or violin. Now universally embraced, our EVH-branded Floyd Rose bridge features our EVH logo stamped on the bridge plate, steel saddles and a solid brass block. The Floyd Rose bridge and R3 (43 mm) locking nut is a professional-grade double-locking design that secures the strings in the saddle and nut, providing ultimate tuning stability and dynamic tremolo action. Standard equipment on Eddie’s personal guitars since the early ‘90s, the EVH D-Tuna is a unique patented device that enables players to drop the E to D and back, in an instant.

UNIQUE APPOINTMENTS

Other killer appointments of this axe include Eddie’s famed striped paint job, a licensed-Fender Stratocaster headstock and single volume Strat-style skirt knob that reads “Tone.” The volume knobs houses a 500K EVH Bourns low friction pot with treble bleed circuit for seamless swells.

SPECS

GENERAL

Series	Striped Series
Color	Black with Yellow Stripes
Number of Strings	6
Orientation	Right-Hand



BODY

Body Finish	Gloss Urethane
Body Shape	Other
Body Material	Basswood



ELECTRONICS

Bridge Pickup	EVH® Wolfgang® Humbucking
Pickup Color	Black
Controls	Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Pickup Switching	None
Pickup Configuration	H



NECK

Neck Material	Quartersawn Maple
Neck Construction	Bolt-On with Graphite Reinforcement
Neck Thickness	.790" at 3rd Fret & .810" at 12th Fret
Neck Finish	Hand-Rubbed Satin Urethane
Neck Shape	EVH® Modified "C" Backshape
Scale Length	25.5" (648 mm)
Fingerboard Radius	12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material	Maple
Number of Frets	22
Fret Size	Jumbo
Nut Material	Floyd Rose® R3 Locking
Nut Width	1.6875" (42.86 mm)
Position Inlays	Black Dot
Truss Rod Nut	Heel-Mount Truss Rod Adjustment Wheel
Truss Rod Wrench	2.5 mm Hex
String Trees	Floyd Rose® Retainer Bar
Headstock	Licensed Fender® Stratocaster®
Neck Plate	4-Bolt Standard



HARDWARE

Bridge	EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Hardware Finish	Chrome
Tremolo Arm	Floyd Rose® 1000 Series
Tremolo Block	Brass
Tuning Machines	EVH®-Branded Gotoh®
Control Knobs	Black Stratocaster®-Style Skirt (Labeled "Tone")



MISCELLANEOUS

Strings	EVH® Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons	Oversized
