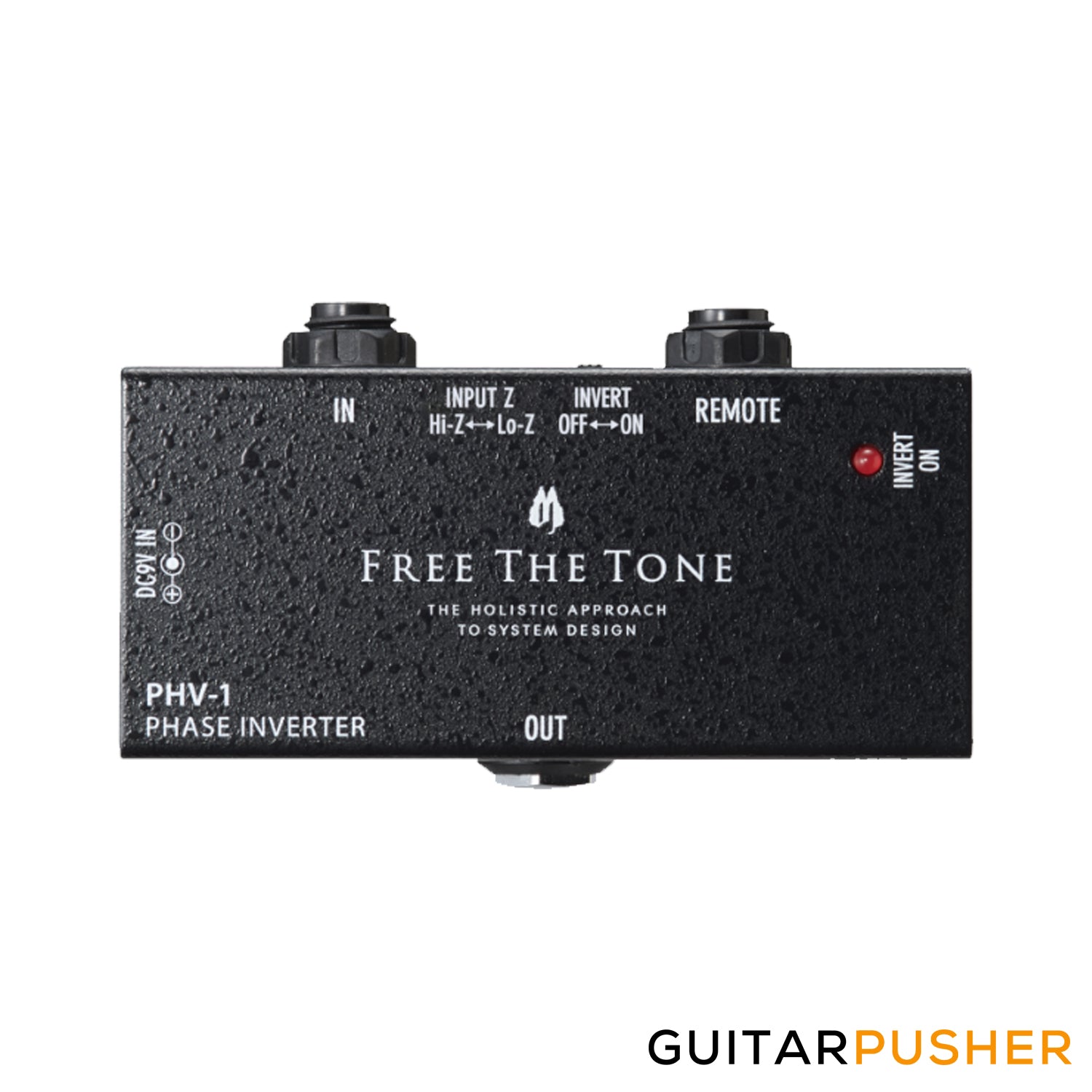

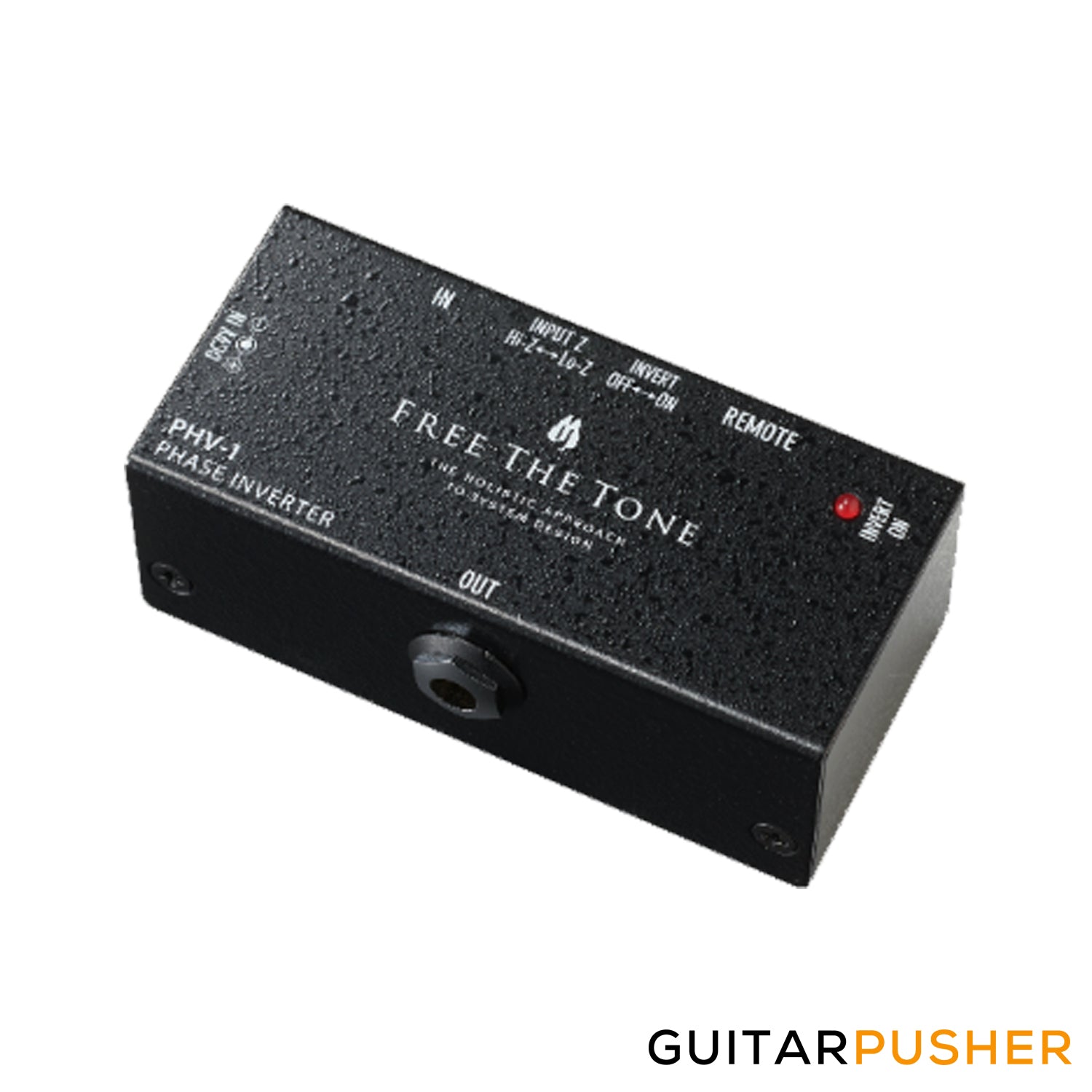

Free The Tone FTT-PHV-1 Phase Inverter

Free The Tone FTT-PHV-1 Phase Inverter

Regular price ₱8,990.00 PHP
Regular price ₱0.00 PHP Sale price ₱8,990.00 PHP
Sale Sold out
SKU: FTT-PHV-1

PHV-1

PHASE INVERTER

PHASE INVERTER / PHV-1 is a device that inverts the phase of effectors and amplifiers. If the phase of the input signal is positive, it is converted to negative phase, and if it is negative, it is converted to positive phase and output.

It is very important to create an environment where you can control the phase. By controlling the positive and negative phases of the phase, the range of sound creation can be expanded.

For example, many wah pedals, compressors, boosters, etc. that have traditional circuits have opposite-phase outputs, and many sound creations that make use of the opposite-phase are seen. On the other hand, it may be better to make the output of this reverse phase positive. When sound overlaps, there is phase interference, so it is important to try to see if the positive phase gives good results or the negative phase gives good results. If you know that one of the causes of the sound recession is due to the opposite phase, using PHASE INVERTER will increase the possibility of solving it. Especially for a bassist who produces a sound based on the kick sound of a drum, the difference between the positive phase and the negative phase depending on the combination of effects becomes stress in performance. You can solve this problem by using PHASE INVERTER in combination with your own effect.

Example of using PHASE INVERTER

  • Invert the phase of the effector
  • If the phase is inverted when using the send / return of the amplifier, connect it to the send / return and use it.
  • If the phase is different between the channels of the amplifier, use it in combination with a switcher etc.



Used in combination with related products

AUDIO ROUTING CONTROLLER / ARC-53M
PHV-1 can be used in combination with ARC-53M. Using the control terminal of ARC-53M, the phase can be easily inverted for each preset. A latch-type foot switch that is operated manually is also available. (ARC-4 has a phase inversion function)
PHASE ANALYZER / PHA-1
You can easily check the phase of your equipment (effector, amplifier) ​​with PHASE ANALYZER / PHA-1. The PHA-1 has two types of phase measurement modes, and uses not only general analog effectors, but also effectors that use delay elements such as phasers, choruses, and delays, AD / DA converters, and DSPs for output. You can also measure the phase of effectors that cause delays.

Specification

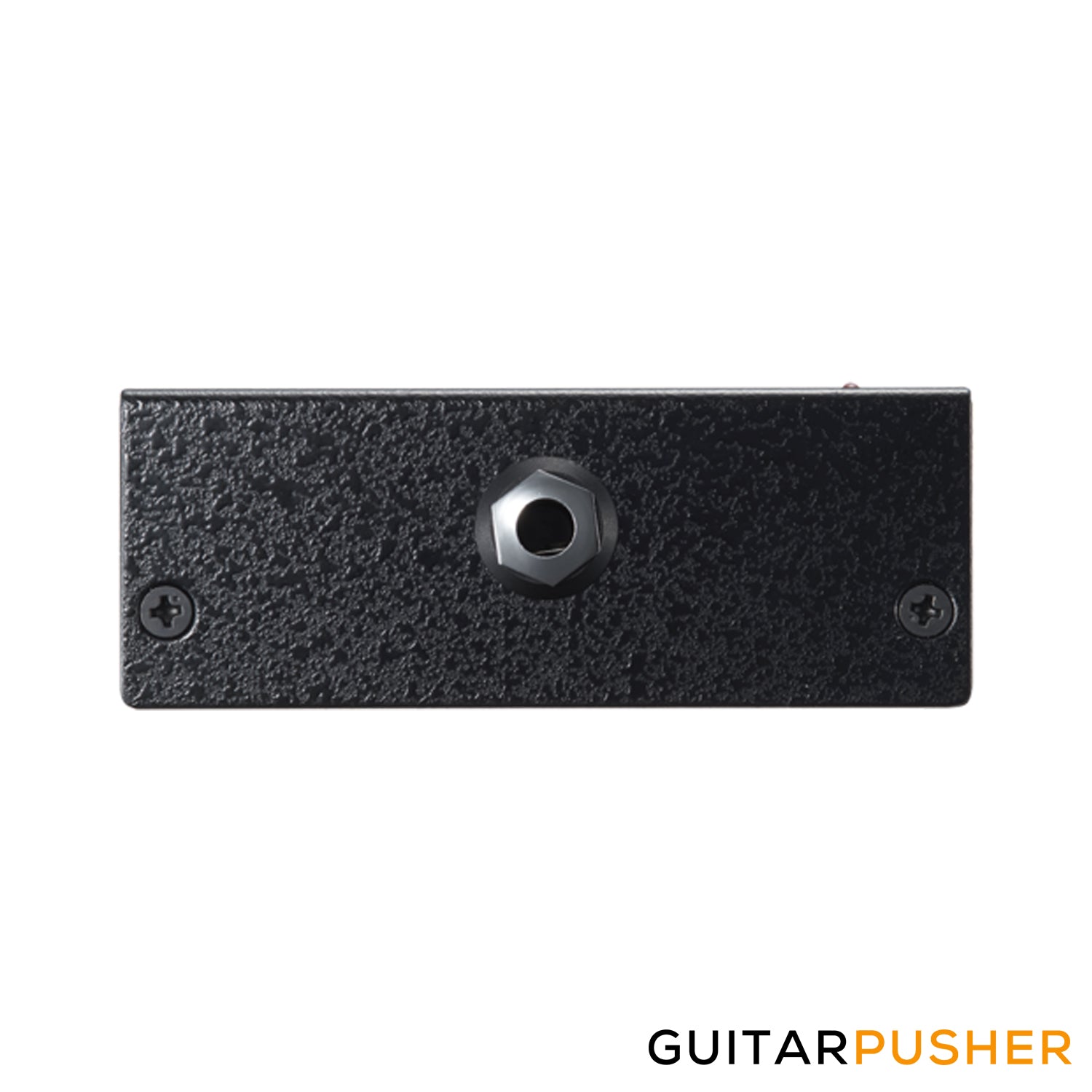

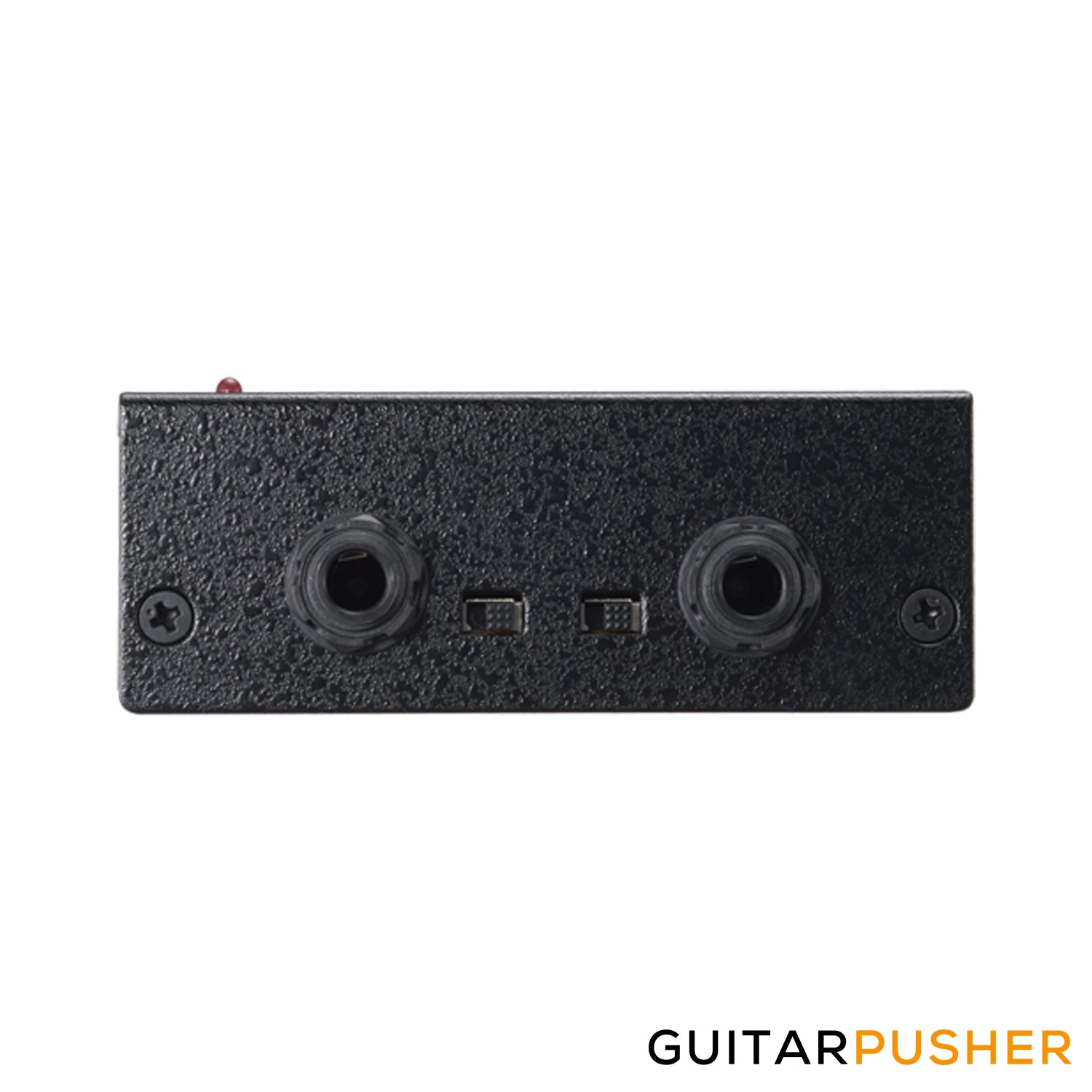

Terminal 1/4 inch standard phone jack x 3 (input, output, REMOTE), DC9V input jack (for AC adapter connection)
Control INVERTER ON / OFF switch, INPUT Z selector switch (Hi-Z: 1MΩ, Lo-Z: 300kΩ)
Power supply DC9V AC adapter (FA-0905D-JA sold separately)
Current consumption About 60mA
size 93.5 (W) x 54 (D) x 35.5 (H) mm (including protrusions such as knobs and switches)
weight About 180g
accessories Warranty card, instruction manual
<Caution> This product does not come with an adapter. Please prepare separately
