Graphtech

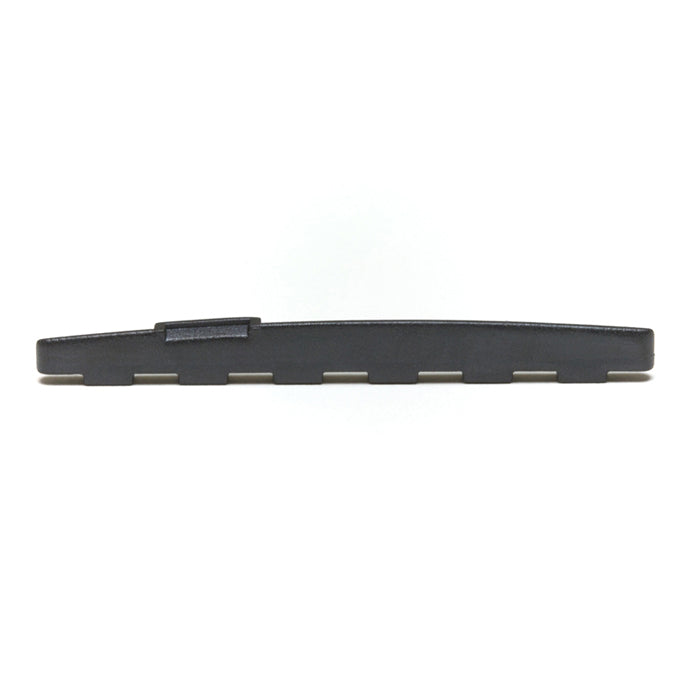

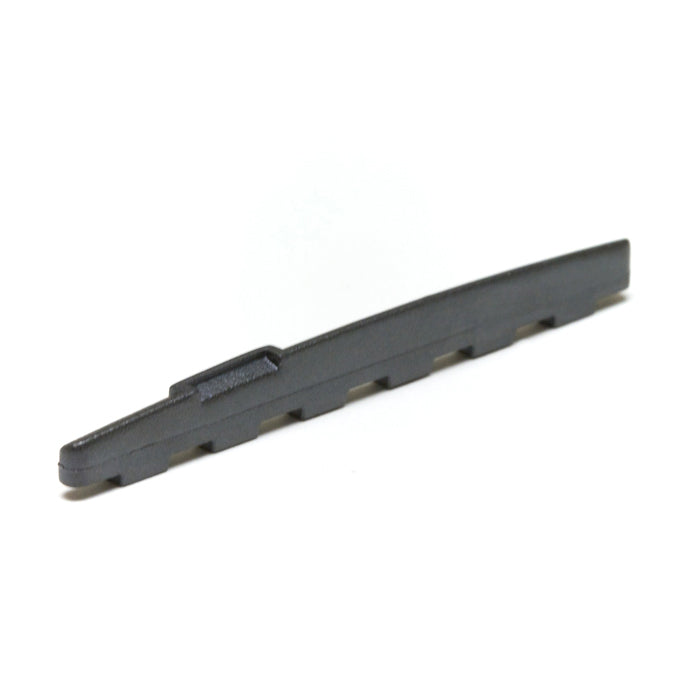

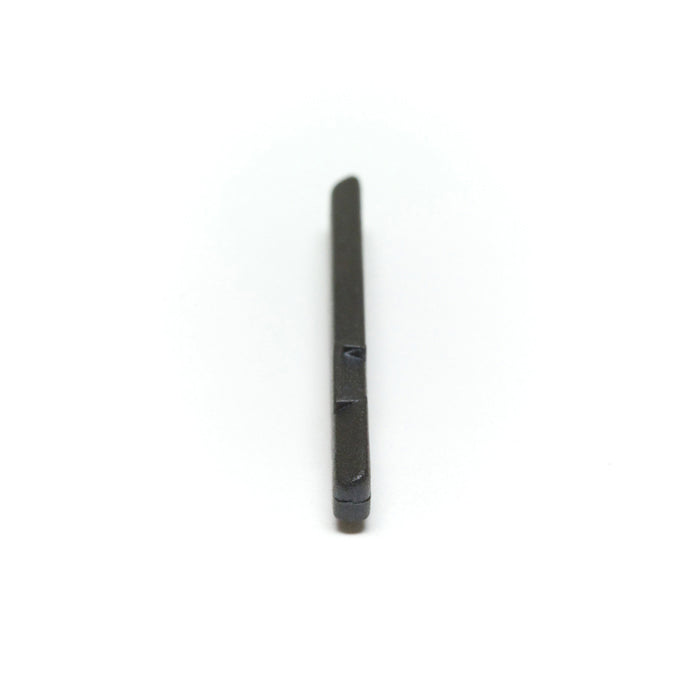

Graphtech String Saver Acoustic Microbalance 12 in. Radius PS-9600-C0
Graphtech String Saver Acoustic Microbalance 12 in. Radius PS-9600-C0
Couldn't load pickup availability
The PS-9600-C0 is a great option to replace or upgrade the saddle on your acoustic guitar that has an under saddle pickup. It uses Graph Tech patented Microbalanceí¢ ¢ technology which allows you to fine tune he output for each string. It is compensated to help improve the playability of your guitar and has a 12" radius.
Black TUSQ XL is engineered from the same material as TUSQ and is impregnated with PTFE which is five times more slippery than graphite. It has all the tonal benefits of TUSQ, bringing out the hidden harmonics of your guitar all while drastically improving tuning performance.
Black TUSQ XL is consistent from piece to piece, and within each piece, to offer you harmonically rich tones without the problems associated with natural materials.

|
Consistentquality |

|
Impregnated with PTFE |

|
Black in color |

|
Increased harmoniccontent |
 |
Improvedtuning |

|
Compensated saddle |
| Measure | Length | Width |
Height |
E to E |
| inches |
2.798" |
0.126" |
0.331" | NA |
| inches | 2 51/64" |
1/8" | 11/32" | NA |

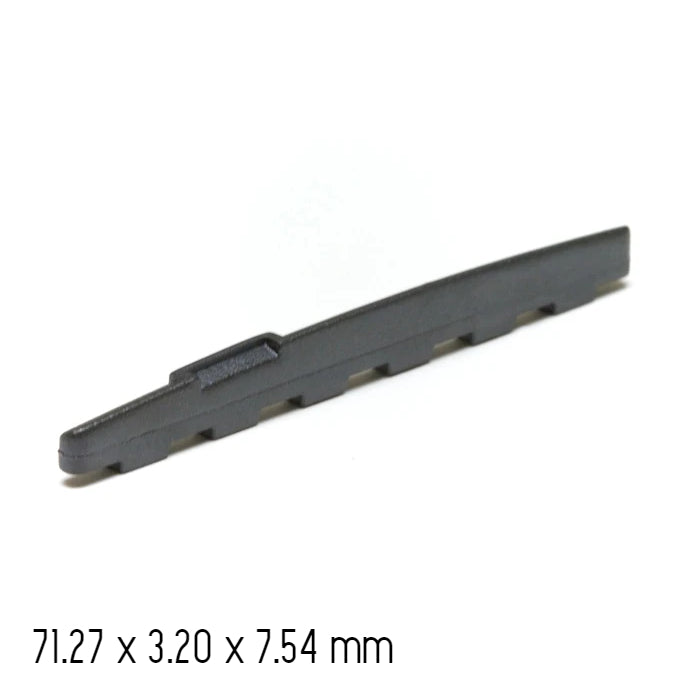

| millimeters | 71.27mm | 3.20mm | 7.54mm |
NA |
Note:All Graph Tech nuts and saddles are slightly long and wide to ensure extra room to achieve a perfect fit for your guitar. This extra material can easily be removed with fine grit sandpaper.
Black TUSQ XL Saddle Installation Instructions
Black TUSQ XL Frequently Asked Questions
STRING SAVER ACOUSTIC SADDLES
WHY CHANGE YOUR SADDLE?
A guitar saddle is designed to transfer the vibrations through the bridge into the top wood of the guitar. This quick and simple upgrade will have an amazing affect on your instruments tone, harmonic content, and playability.
Compensated saddles improve the playability by correctly setting each strings intonation to help produce the best tone and performance possible. Graph Tech produces a wide range of fully compensated, partially compensated and saddle blanks and slabs.
WHAT IS AVAILABLE?
| Compensated saddles: | almost all of the work is done, all that is needed is final fit or length, height and thickness. |
| Saddle blanks: |
Saddle blanks have some shaping done but some shaping will need to be done as well as final fit for length, height and thickness |
| Saddle slabs: |
Saddle slabs are simply a block of material that can be used to make the entire saddle (or anything else) from scratch. |
HOW TO MEASURE MY SADDLE.
 |
|||
| 1.Remove your existing saddle with tweezers or fine point pliers. | 2.Measure the overall length of your existing saddle. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. | 3.Measure the width of your existing saddle. Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. | 4.Measure the overall height of your existing saddle from the bottom to thehighest point.Be as accurate as you can by using a ruler, calipers or a tape measure. Record this dimension. |
