- Numbers of Effects: 16
- Numbers of Patches: 10 (2 banks x 5 patches)
- Digital Processing: 24-bit A/D/A conversion, 44.1 kHz sample rate
- Frequency Response: 20 Hz-20 kHz
- S/N Ratio: Up to 110dB
- Input Impedance: 1M Ohms
- Output Impedance: 100 Ohms
- Power Requirement: DC 9V, center negative
- Current Consumption: 200mA minimum
- Dimensions: 121mm (W) x 72mm (D) x 47mm (H)
- Weight: 340g
Hotone
Hotone BAP-1 Binary Amp CDCM Amplifier Simulator Effect Pedal
Hotone BAP-1 Binary Amp CDCM Amplifier Simulator Effect Pedal
Regular price
₱7,990.00 PHP
Regular price
₱0.00 PHP
Sale price
₱7,990.00 PHP
Unit price
per
Please call or chat to confirm availability.
Couldn't load pickup availability

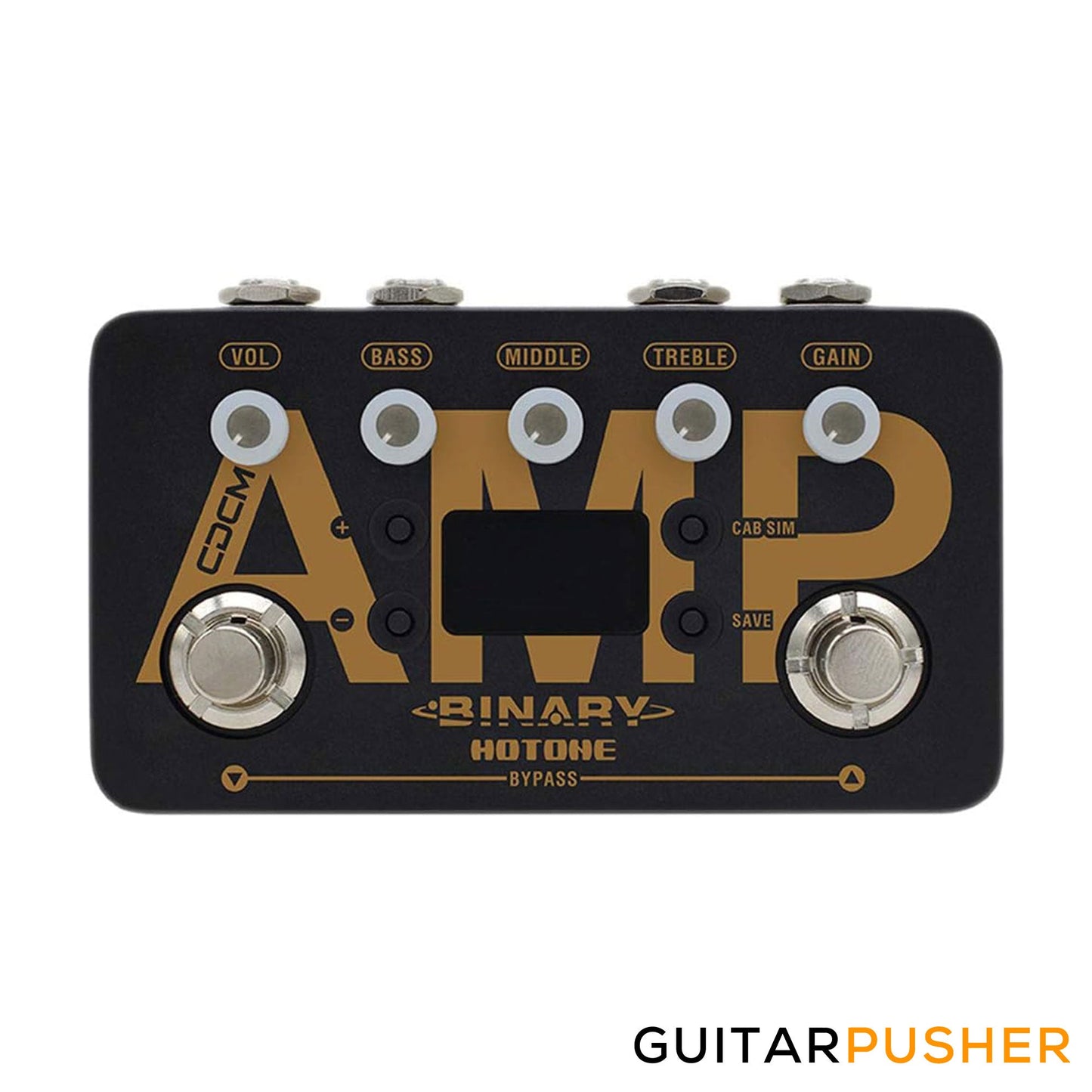

Binary Amp – CDCM Amplifier Simulator Effects Pedal
Grown out of next-generation XTOMP technology, the Hotone Binary Series lets loose versatile pro-level effects in compact cases. Based on the same modeling/original effect library that amazed XTOMP users worldwide, Binary Series are dedicated to gather a bunch of high quality effects in a box with more affordable, competitive price. They feature compact casing, dual-footswitch design, versatile inputs/outputs and bright, clear OLED display, which blur the line between "classic pedals" and multi-effects.
At the core of all Binary Series pedals, a powerful dual-DSP platform and CDCM (Comprehensive Dynamic Circuit Modeling) modeling system ensure a realistic playing experience. The CDCM system is built on an extremely complex dynamic variation matrix, able to realistically express every detailed change that occurs during the operational process of actual circuitry: Everything is ALIVE and performs like its original.
The Binary Amp is an amplifier simulator effects pedal that delivers 16 classic/legendary guitar amp models, each with its own high-quality cab simulators. In addition, a built-in FX loop lets you expand your sound even further.
Features
✪ Grown out of next-gen XTOMP technology
✪ Compact, easy-to-use dual footswitch amp simulator pedal
✪ Advanced CDCM modeling system ensures realistic playing experience
✪ Dual DSP-powered platform ensures high sound quality
✪ 24-bit A/D/A conversion, up to 110dB S/N ratio
✪ 16 CDCM powered legendary amp models along with dedicated cab models
✪ USB jack for firmware upgrading, loading/managing effects with free PC/Mac software

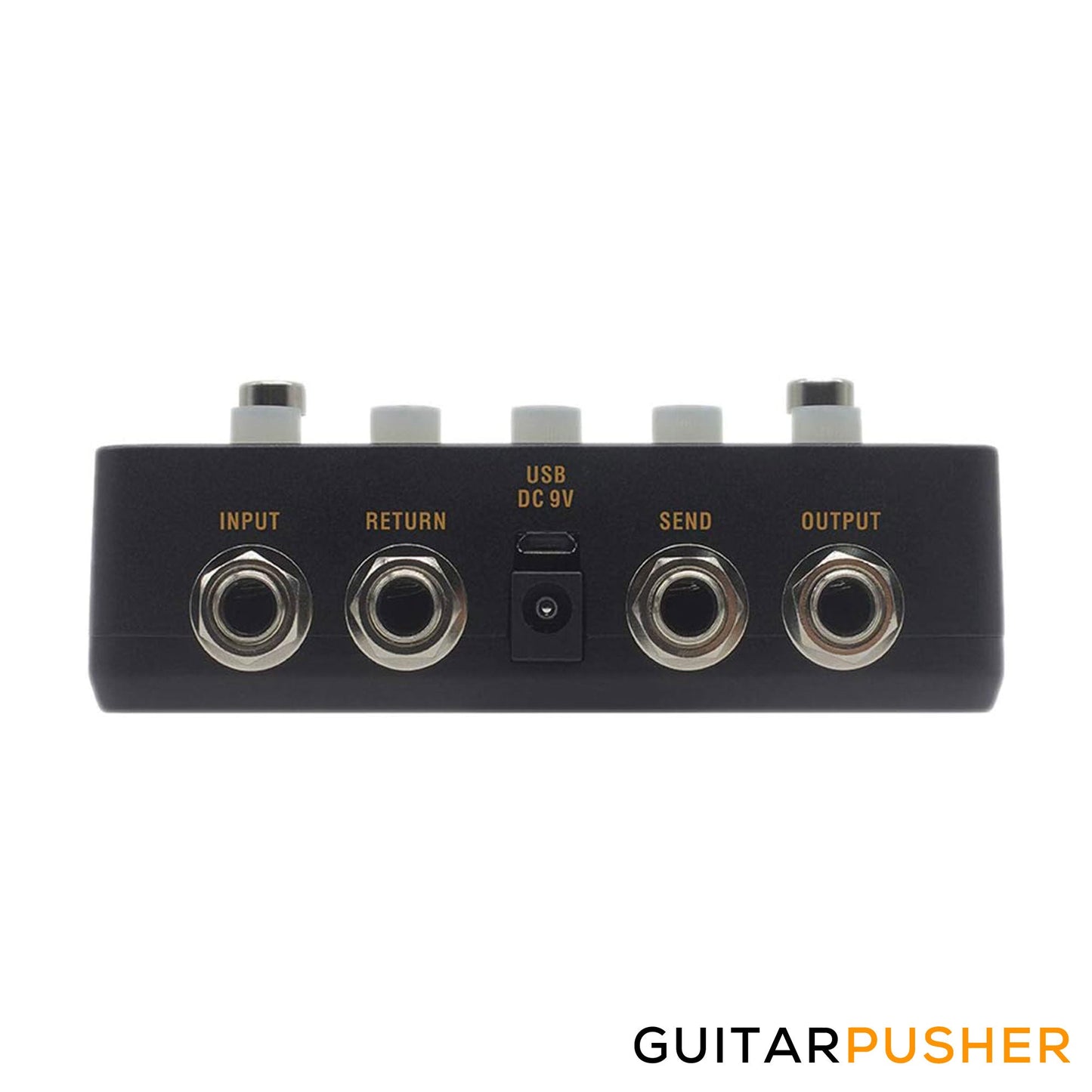

✪ FX Loop jacks for expanded effects
✪ 10 Presets (2 banks x 5 presets)
✪ Built-in OLED screen with clear display
✪ 5 transparent knobs with LEDs
✪ 9V DC power supply
Amp Models List*
| No. | Name | Based On | Matched Cab Sim (Not shown in Binary Amp) |
| 01 | FRED HBE | Boutique UK-style high gain amp head | FRED 4x12 |
| 02 | RECT LEAD | Mesa/Boogie® Dual Rectifier® | RECT 4x12 |
| 03 | CHEF CLN | Matchless® Chieftain | CHEF 2x12 |
| 04 | USA 2C+ | Mesa/Boogie® Mark II C+® | RECT 4x12 |
| 05 | DARK DUO | Fender® '65 Twin Reverb® | DARK 2x12 |
| 06 | DIZZ VH | Diezel® VH4 | DIZZ 4x12 |
| 07 | BASS CLN | Fender® '59 Bassman® | BASS 4x10 |
| 08 | AREA 51 | Peavey® 5150® | AREA 2x12 |
| 09 | BRIT J45 | Marshall® JTM45 | BRIT 4x12 |
| 10 | SAGA 120 | ENGL® Savage 120 | SAGA 4x12 |
| 11 | BRIT 800 | Marshall® JCM800 | BRIT 4x12 |
| 12 | TWD LUX | Fender® Tweed Deluxe | TWD 1x8 |
| 13 | SOLO 100 | Soldano® SLO 100 | SOLO 4x12 |
| 14 | VOXY T30* | VOX® AC30 Top Boost | VOXY 2x12 |
| 15 | OGRE A30 | Orange® AD30 | OGRE 4x12 |
| 16 | JAZZ TWIN | Legendary Jazz Clean amp | JAZZ 2x12 |
*The Manufacturers and product names mentioned in the list above are trademarks or registered trademarks of their respective owners. The trademarks were used merely to identify the sound character of the products.
Binary Editor Software Notice
Usage Notice
1. If you find the Binary Editor doesn't respond when you first launch the Binary Editor software, it may be because the Binary Editor is initializing (loading presets, user data, IR files, etc.). Please wait for a few seconds and try again.
2. Please launch the Binary Editor first before connecting your Binary pedal to your computer. If your device cannot be recognized, reconnect the power jack and try again.
Firmware Update Notice
To perform a manual update if your Binary pedal crashed:
1. Press and hold the left footswitch along with the "-" and "GLOBAL" buttons, then power Binary on.
2. Connect a USB cable to your computer and open the Binary software.
3. Select the firmware update option and follow the procedure for the newest update.
4. After the update is complete, select and run "Restore Factory Settings" from the software.
5. When complete, disconnect the cable and operate your Binary as normal.
Warning: Breaking the USB connection during the firmware update process may result in an operation crash.
