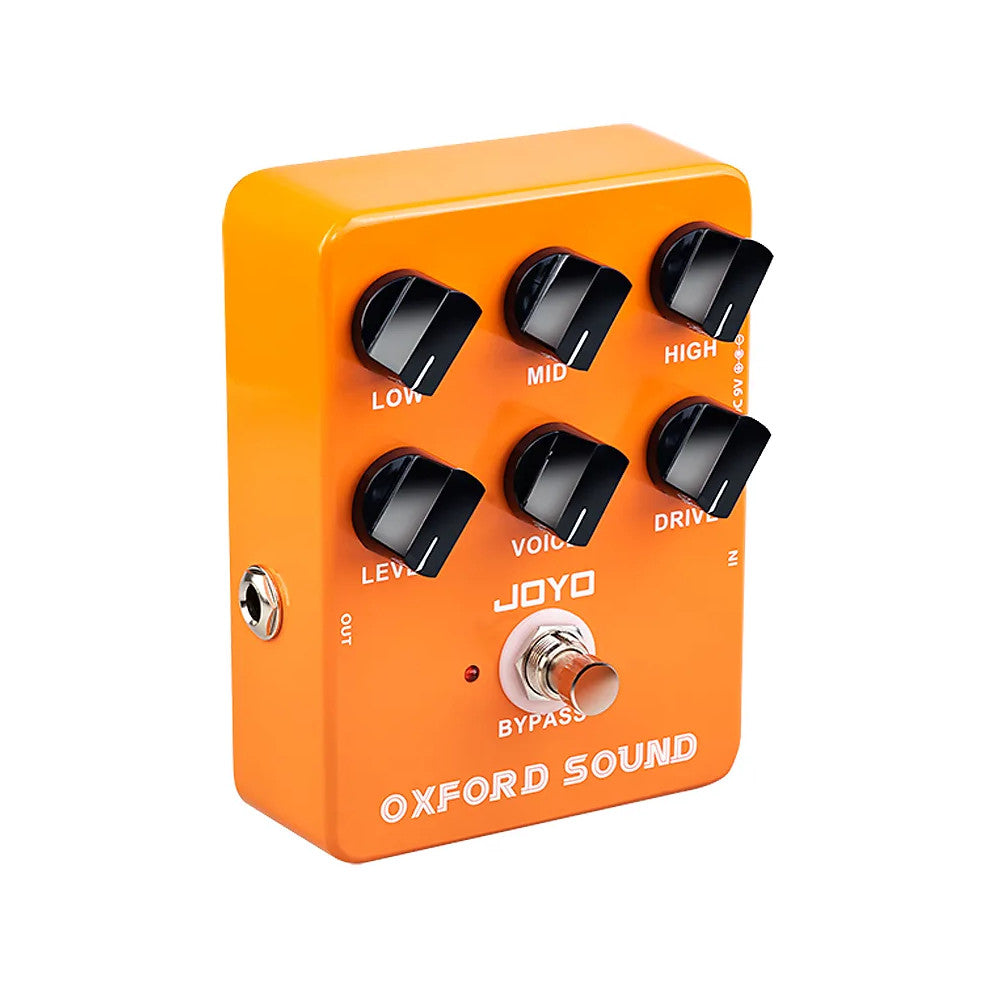

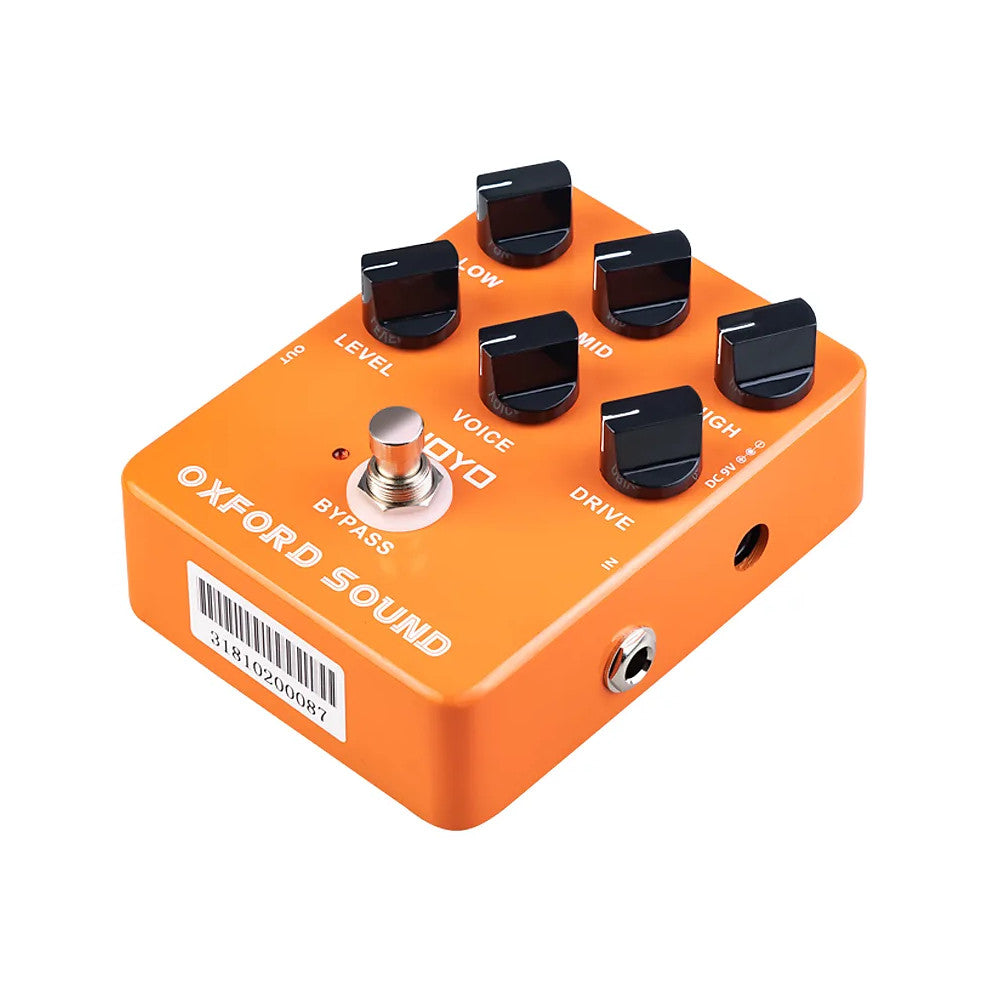

Joyo JF-22 Oxford Sound Distortion Effect Pedal

Joyo JF-22 Oxford Sound Distortion Effect Pedal

Regular price ₱2,590.00 PHP
Regular price ₱0.00 PHP Sale price ₱2,590.00 PHP
Sale Sold out
SKU:JY-JF22

Joyo JF-21 Oxford Sound Distortion

OXFORD SOUND recreates the tone of an ORANGE@ amp, bringing out the classic British rock of the 70' s. It offers more versatility, which performs great for clean, distortion and more.

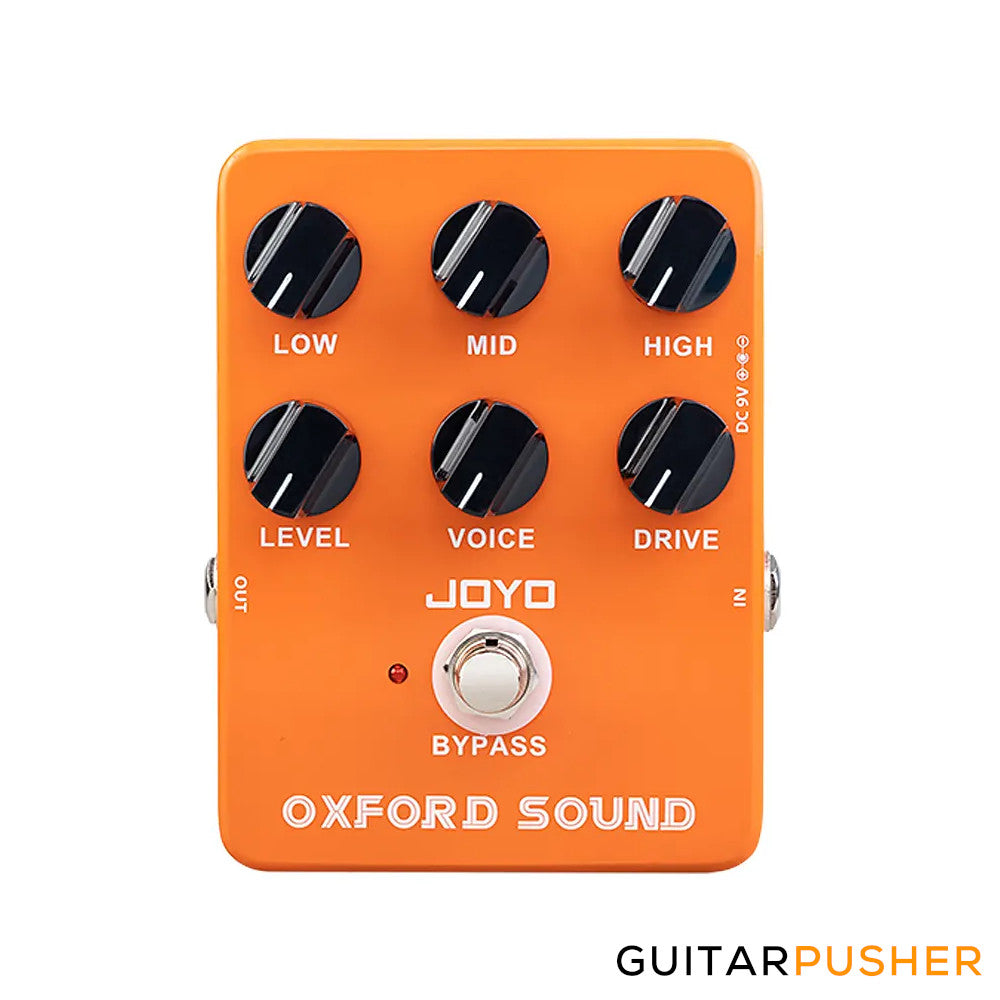

Panel Instruction:

  • 1. MID: adjust the mid frequency
  • 2. LOW: adjust the low frequency
  • 3. VOICE: adjust the frequency response and distortion characteristics, it can simulate various amp tones when used together with DRIVE knob.
  • 4. L EVEL: adjust the output level
  • 5. OUTPUT: 1/4" mono audio jack, outputting the signal.
  • 6. HIGH: adjust the high frequency
  • 7. Power Jack: for power supply, with 9V DC power adapter(center minus plug).
  • 8. DRIVE: adjust the Gain
  • 9. INPUT: 1/4" mono audio jack, connecting to the guitar.
  • 10. BYPASS Footswitch: press the Footswitch to select the effects.
  • 11. LED indicator: it indicates OXFORD SOUND's working status, the effects is turned on when the LED is on.

Specifications:
  • INPUT: 1/4" mono audio jack (impedance: 1 M Ohms)
  • OUTPUT: 1/4”mono audio jack (impedance: 1K Ohms)
  • Power requirements: 9V 6F22 battery/ DC 9V power adapter (center minus plug)(not included)
  • Current draw: 6mA
  • Material: Aluminium alloy with stoving varnish.
  • Dimensions: 12.0cm(L)x9.7cm(W)x5.5cm(H)
  • Weight:390g
