Joyo R-08 Cabinet Modelling / IR Loader Box

JOYO CAB BOX is a cabinet modeling pedal, with IR loading supported. It has 4 tube power amp simulations, 20 cabinet models and 11 classic microphone models. Regarding the IR, apart from 20 preset loading locations, it also supports storing 10 third party IRs, you can connect to the PC through the USB, and use the matching software to edit tones and update firmware, load or delete third party IRs. JOYO CAB BOX has more interface, much bigger screen with more buttons compared with rival’s similar products, it’s quite user-friendly.

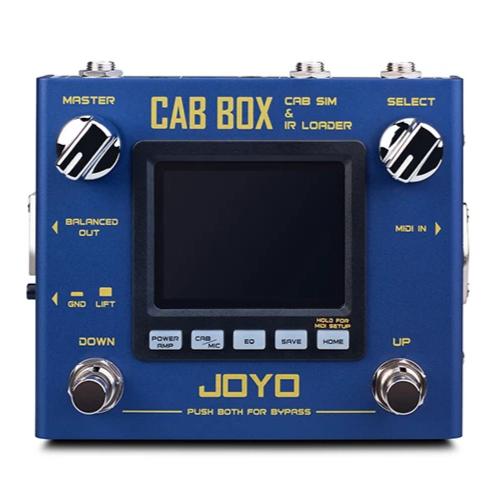

Controllers: Master, Select, Power Amp, Cab/Mic, EQ, SAVE, HOME, LED Toggle

Support both Windows/Mac OS

IR sampling info:

• IR file format: .wav
• Sampling accuracy: 24bit
• (supports 16/24/32 bits third party IR files)
• Sample rate: 44.1kHz
• Sample’s length:1024pts

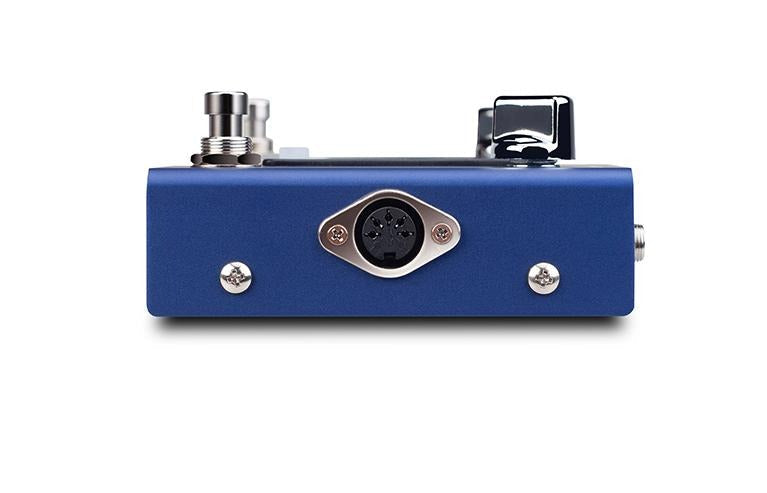

• 128 tone store positions, supporting MIDI controlled devices changing tone real time.
• Different interfaces are suitable for various venues.
• DI balanced output: for connecting to the mixer, sound card recording during live performance.
• Headphones: Stereo headphones output for home practice.
• Thru: Can connect to amp’s FX LOOP or other cabinet simulation devices for stereo output.

Specifications:

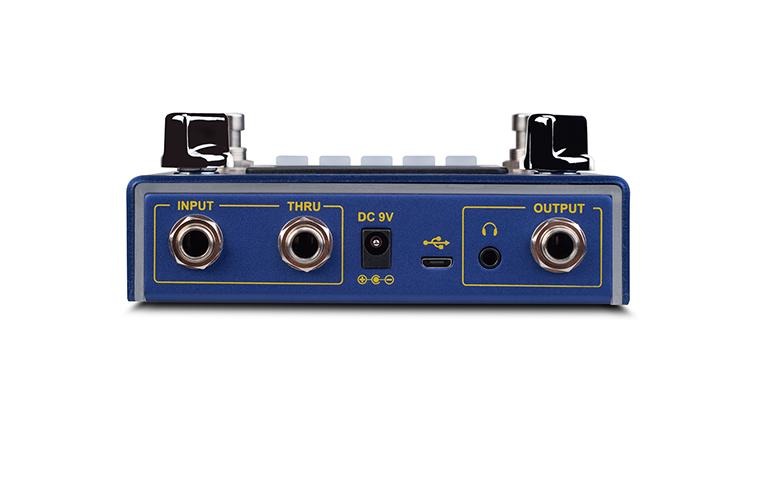

• Input: 6.35mm mono plug
• Output: 6.35mm mono plug

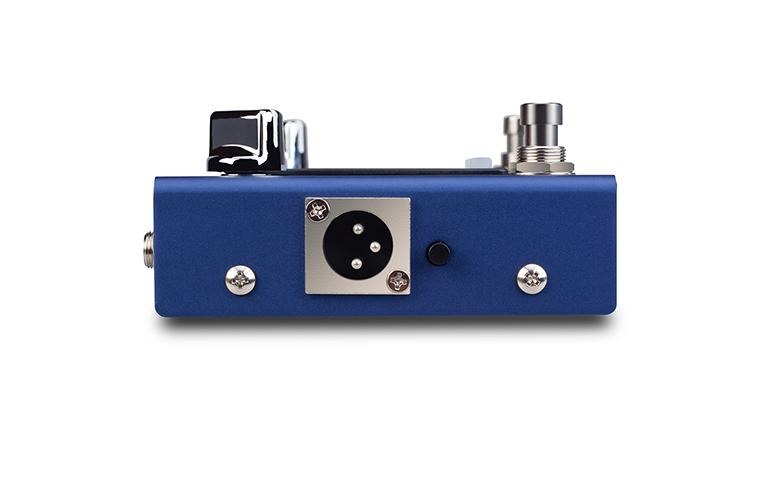

• XLR balanced plug
• 3.5mm stereo plug
• Input Impedance: 2.2MΩ
• Output Impedance: 470Ω
• XLR Output Impedance: 470Ω
• Headphones Impedance: 35Ω
• Working Current : 300mA
• Working Voltage: DC 9V(center minus)
• Dimensions:  130*110*50mm
• Weight: 418g
