Joyo
Joyo R-12 10-band EQ
Joyo R-12 10-band EQ
Couldn't load pickup availability

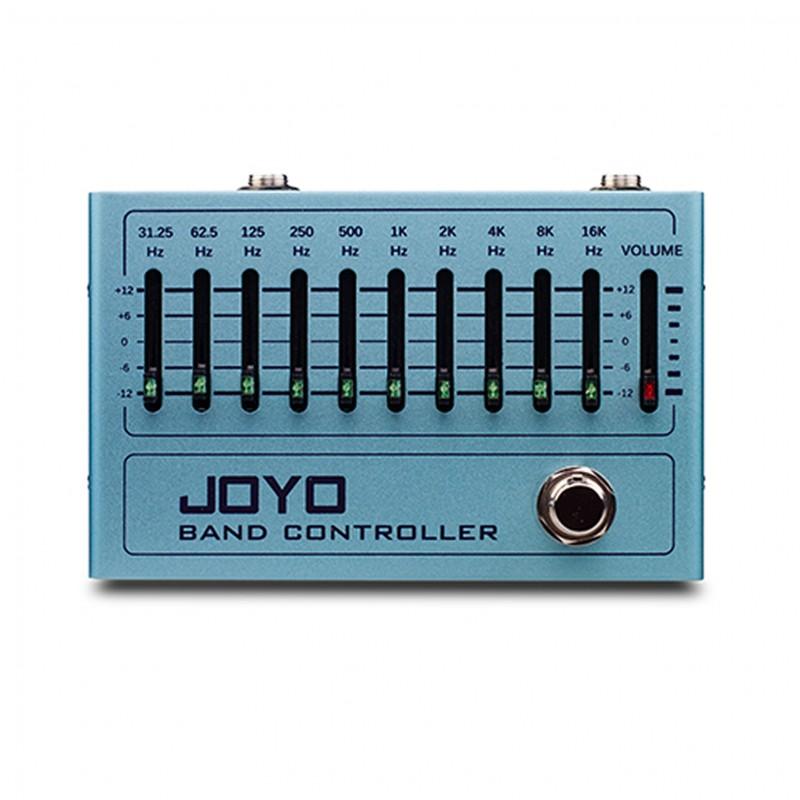

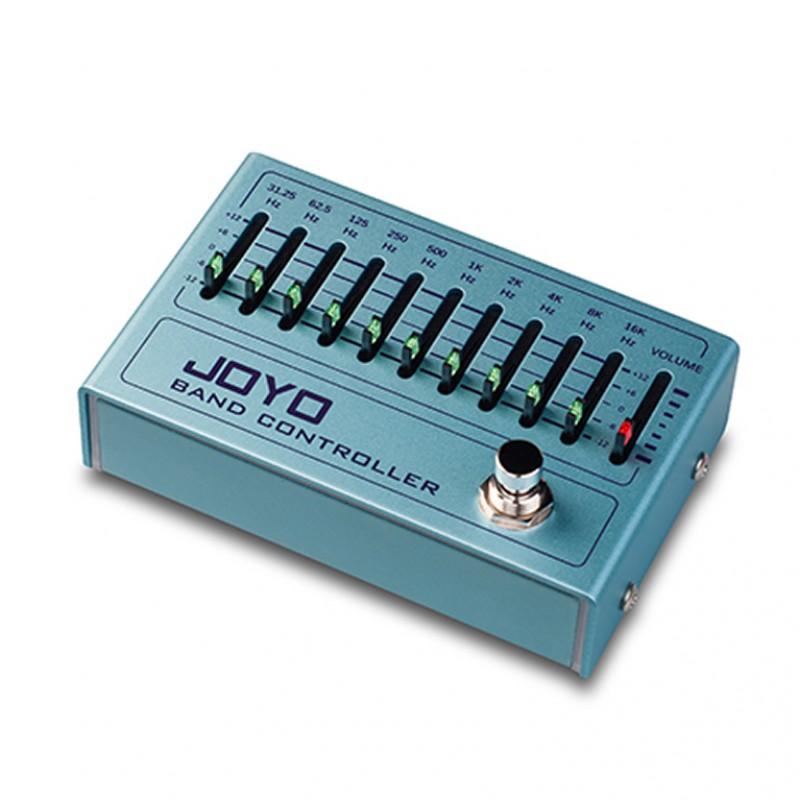

JOYO 10 Band Graphic EQ Controller
The JOYO 10 band Graphic EQ effect pedal is suitable for both Bass and Guitar, giving you shaping control over frequency band ranges from 31.25Hz to 16 kHz. A 10 band slide control dials in deep lows, fantastic bright mids and crystal clear high end frequencies. The Illuminated sliders lets you easilt see what you eq is doing , the R series ambient lights make this pedal stand out. A powder coated sky blue aluminium housing will mean this EQ will endure prolonged use over time on the pedalboard.
Achieve a + or -12 dB boost or cut per frequency band
The full regulator band values are:
- 31.25 Hz
- 62.5 Hz
- 125 Hz
- 250 Hz
- 500 Hz
- 1K Hz
- 2K Hz
- 4K Hz
- 8K Hz
- 16K Hz
On the right side, there is an additional independent volume control, + or -12 dB boost making it a perfect boost for making a solo stand out, or to push a tube amp into overdrive mode.

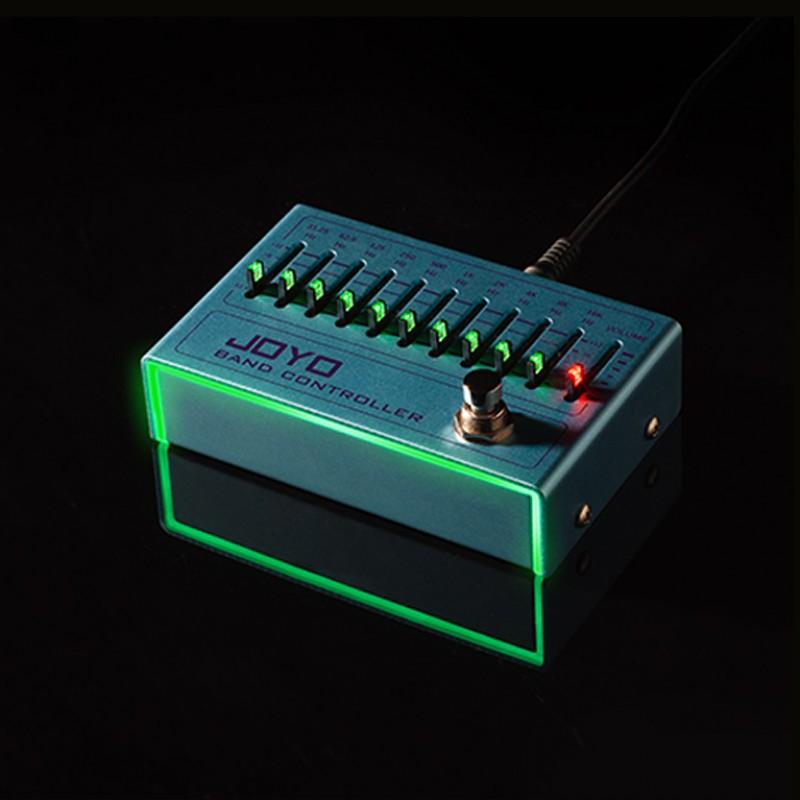

- Illuminated sliders
- Dimensions: 125*78.5*48mm
- Weight: 316g
- Input Impedance: 1MΩ

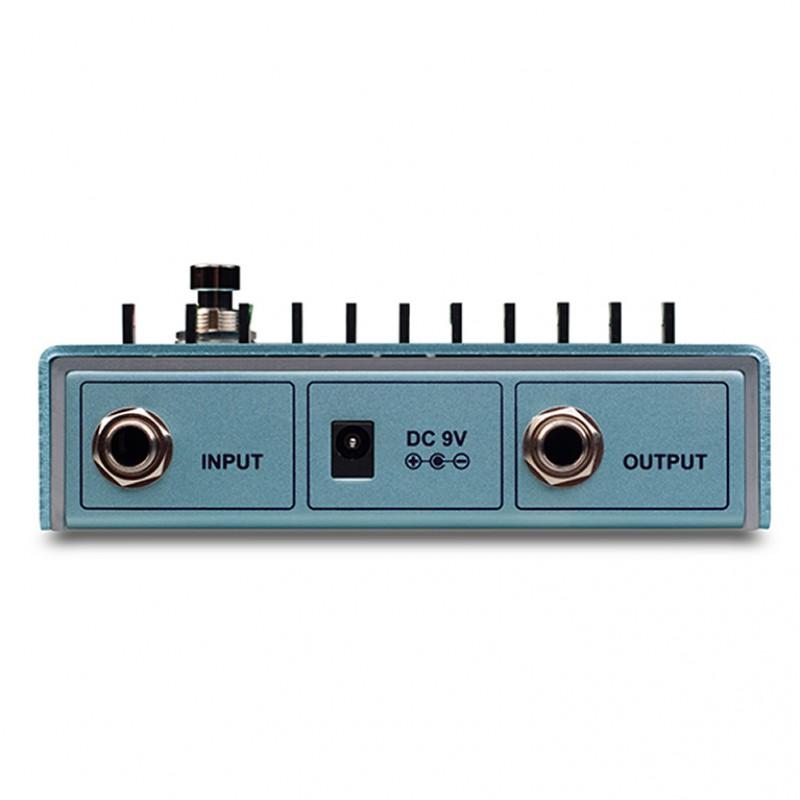

- Input Mono 6.3mm
- Output Impedance: 100Ω
- Output Mono 6.3mm
- Rated current consumption: 30mA
- Working Voltage: DC 9V (centre negative)
- Signal Bypass Type: True Bypass
