MXR® ISO-BRICK™ POWER SUPPLY

M238

This power supply is light and pedalboard-friendly with ten fully isolated outputs ranging from 9V to 18V—including two variable 6V–15V outputs—and special noise-reduction circuitry for quiet operation.

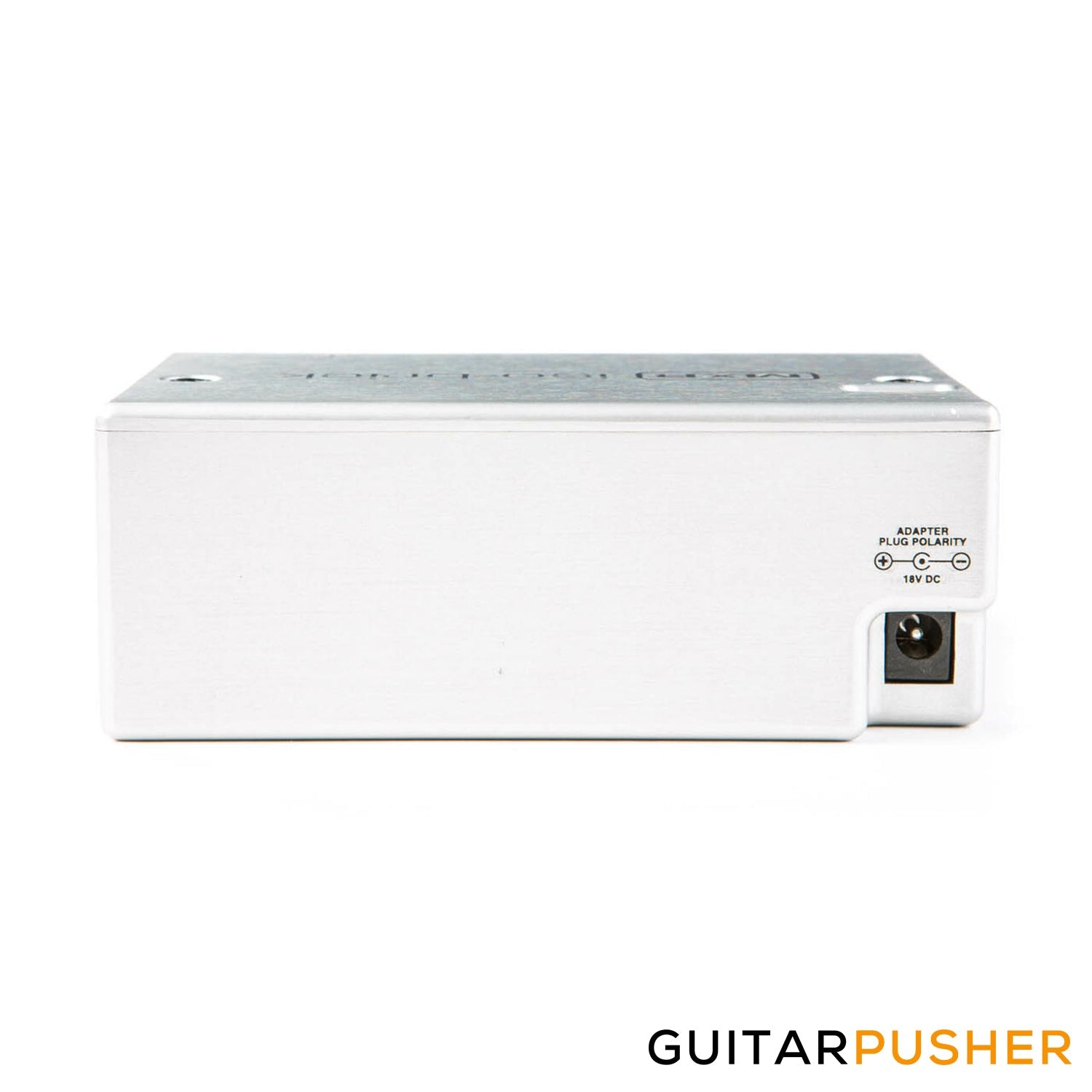

This pedal can be powered by the included ECB009 18-volt adapter.

THE LONG STORY

The Iso-Brick Power Supply is small and light with tons of quiet, noise-free DC power on tap ready to run a wide range of pedal types without crowding or weighing down your pedalboard.

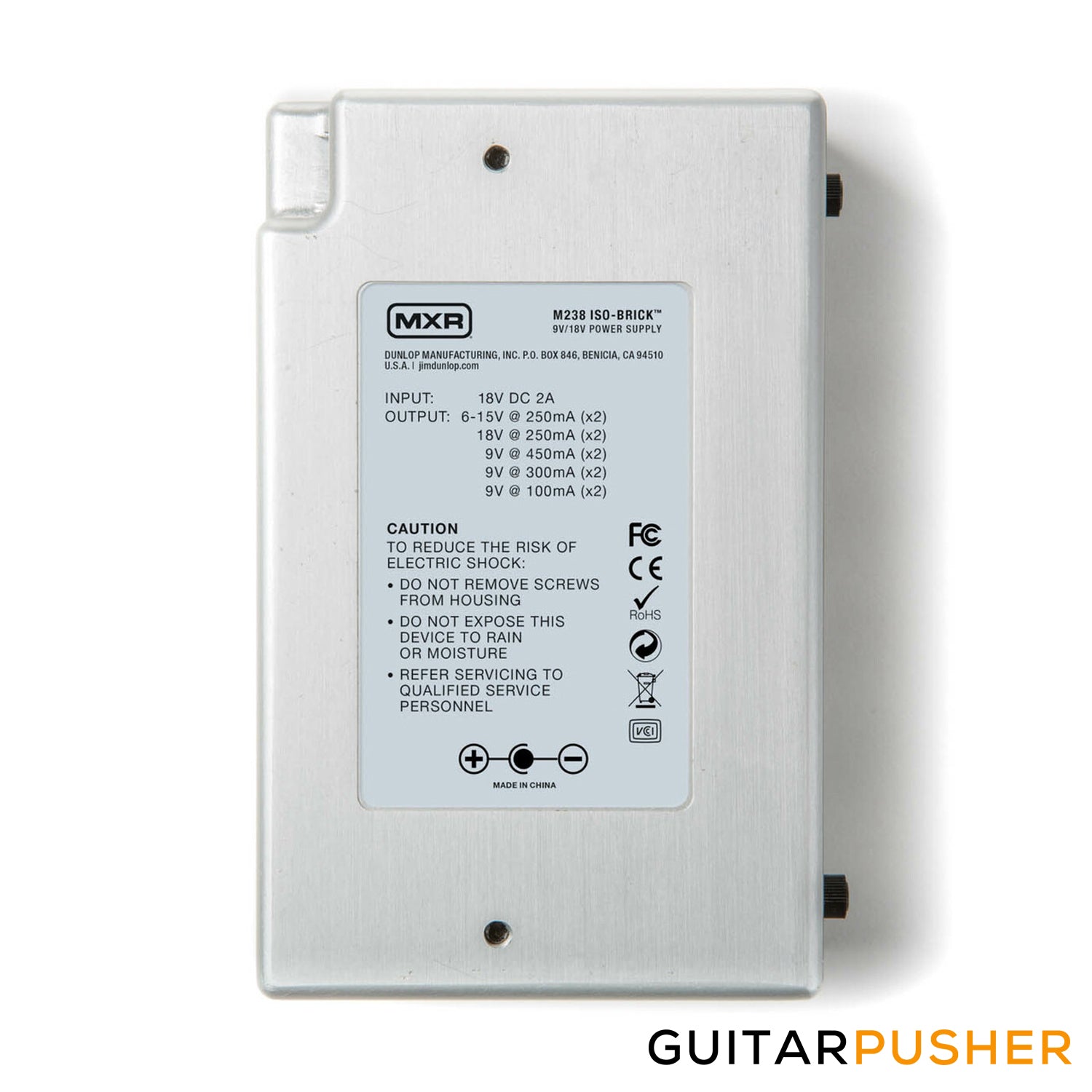

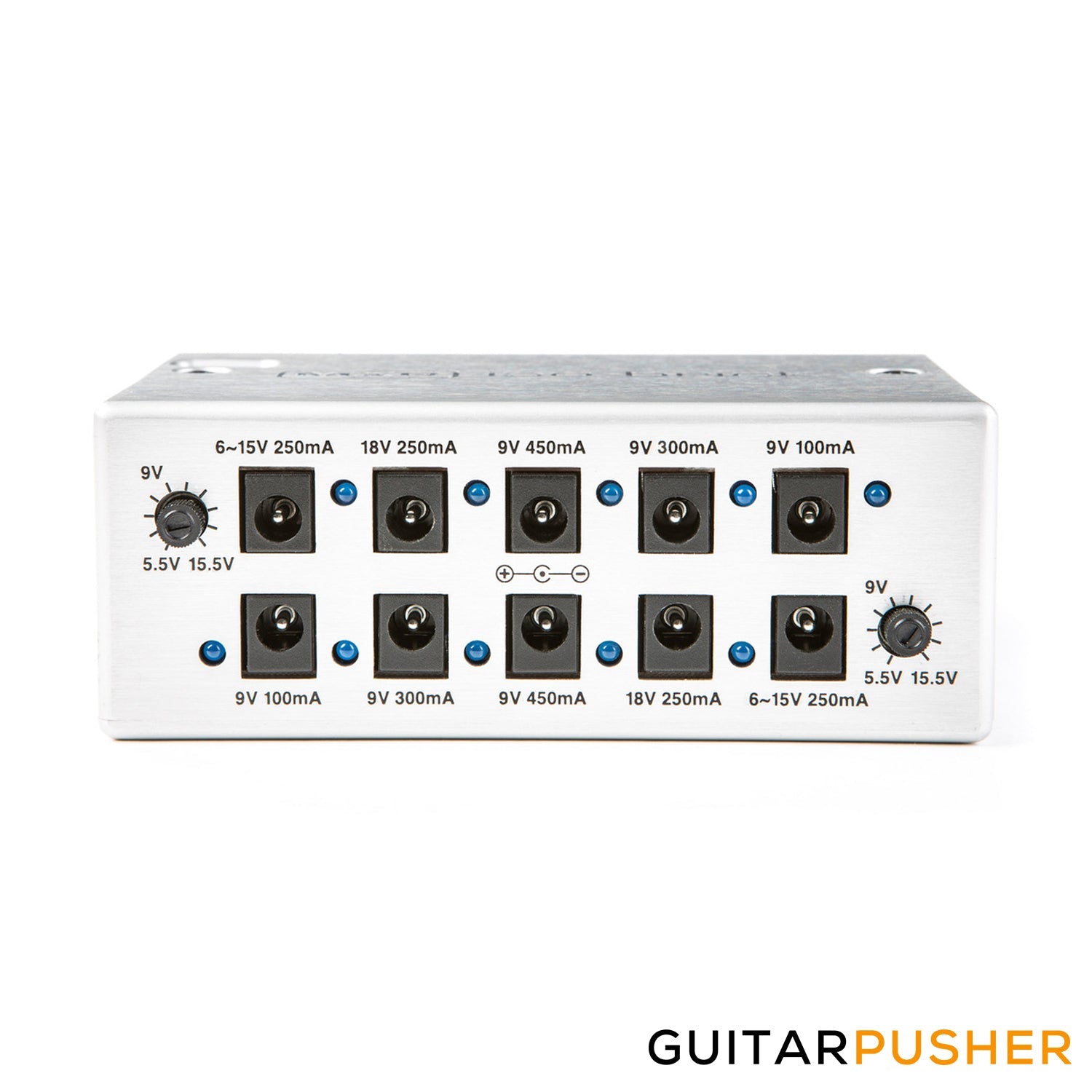

Each of the Iso-Brick Power Supply's 10 outputs is fully isolated, eliminating gig-ending ground loop noise. Whether analog or digital, positive or negative ground, this power box has you covered. The MXR team broke down these 10 outputs to accommodate a variety of voltage and current requirements: two 9V outputs at 100mA, two 9V outputs at 300mA, two 9V outputs at 450mA, two 18V outputs at 250mA, and two variable outputs adjustable from 6V to 15V at 250mA. The two variable outputs can be used to emulate voltage ﾓsag,ﾔa drained battery effect sought by many vintage tonechasers.

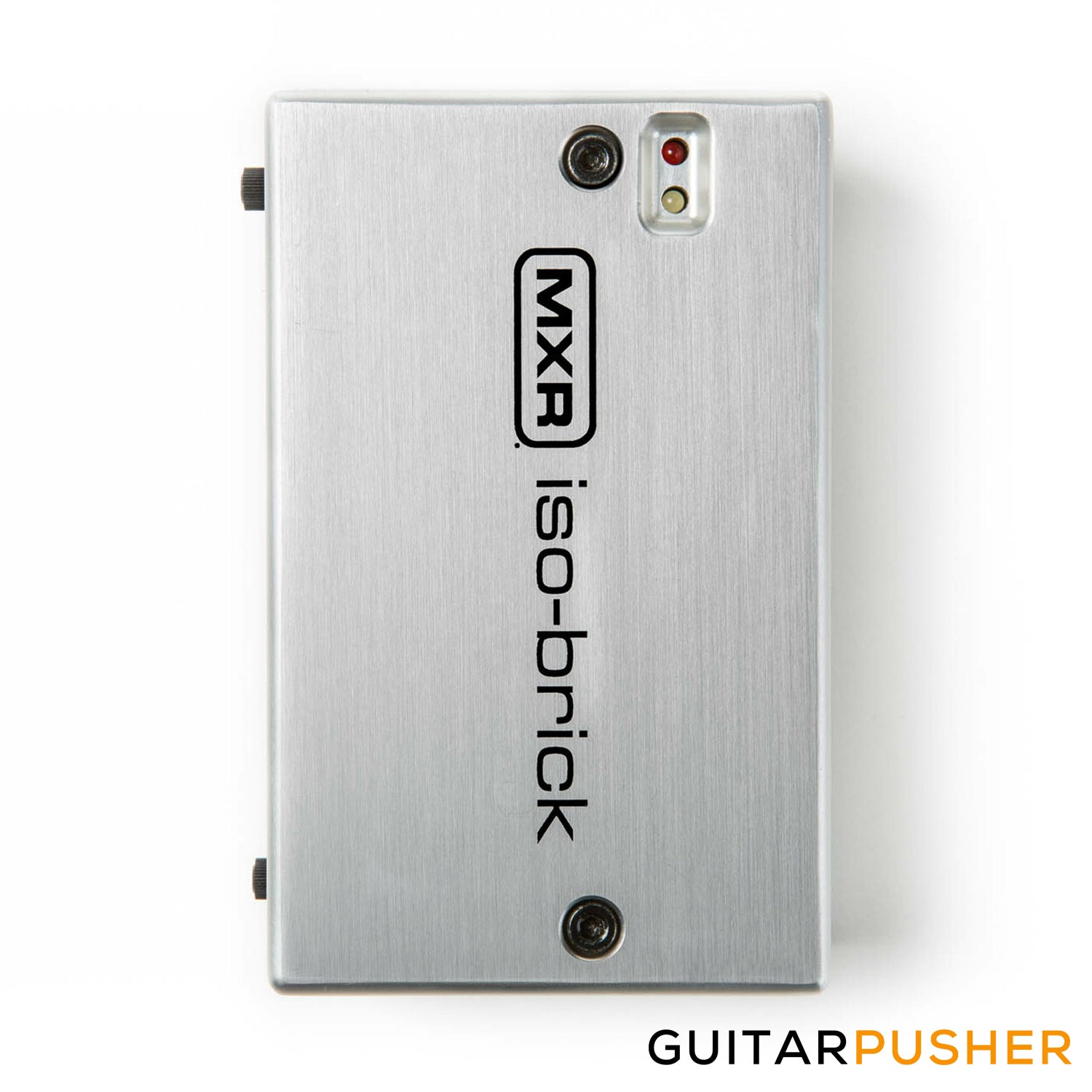

On top of all that, the Iso-Brick Power Supply comes in a small, lightweight housing that's built like a tank. Features power on/off and connection status LEDs. Put this little box on your pedalboard to make sure it runs reliably and quietly gig after gig.
