Introducing the Sheeran Looper +

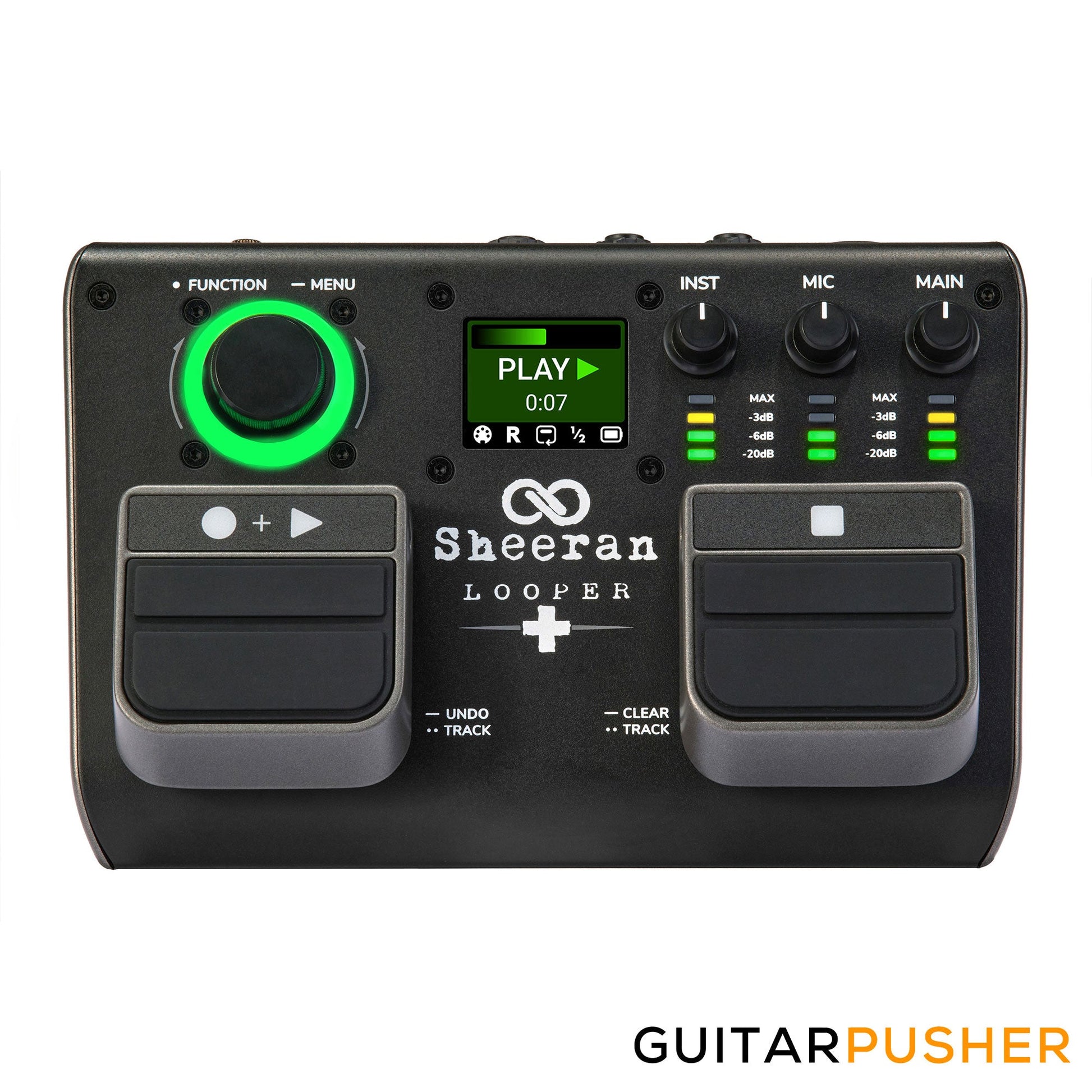

Sheeran Looper + is the next–generation powerful and portable dual-track looper pedal. Looper + features Ed Sheeran’s looper workflow, stadium-grade die-cast aluminum pedals, and an intuitive 1.8” color screen with RGB LED loop status ring for heads up performance information.

Designed by Ed and his production team, Looper + utilizes custom DSP powered by HeadRush® offers class-leading audio quality and stacks of connectivity options for performing on the street, in the studio, or up on stage! Looper + is the perfect compact looper whether you’re just starting out, or a professional musician looking to upgrade your existing pedalboard with an intuitive new looper pedal.

Two Pedals, Infinite Possibilities
Looper + features the exact same premium die-cast pedals found on Ed’s stadium
stage looper. These pedals have been precision-engineered with optimal dimensions
and spring pressure to be consistently easy-to-operate, helping you focus purely on
your looping performance.

These ultra-durable pedals control the track record, overdub, playback and stop
status of your loops, and feature hold functionality to undo/redo and clear your loops
with ease. You can also connect an optional external single or dual footswitch and/or
MIDI controller to Looper + for assignable feature control such as soloing and muting
tracks, reverse and 1/2 speed playback, as well as fading loops in and out.

Easily Save and Load Your Loops
Capture, save and share inspiration when it happens. Sheeran Looper + lets you store
up to 128 loops with over 3 hours of total onboard storage time. When connected to a
Mac or PC, the Looper + appears as a plug-and-play USB storage device, making it
easy to transfer loops via drag-and-drop without having to install any extra software.
Sharing your loops with the world has never been easier.

Over 6 Hours of Battery-Powered Looping On-The-Go
Take your looping skills on the road! Looper + can be powered for over 6 hours from
a single set of four AA batteries - perfect for gigging and street performance.
Alternatively, you can connect Looper + to a standard 9V 500mA (center-negative)
pedalboard power supply and integrate it into your pedalboard. You can even power
Looper + directly from the USB port for easy loop transfer with a Mac or PC.

Well Connected
Looper + features a mono combo XLR and 1/4-inch input for connecting a standard
dynamic microphone for vocals, a stereo pair of 1/4” inputs for connecting an
instrument like guitar or keyboard, a stereo pair of 1/4” assignable outputs, a 1/8” MIDI
input (with included 5-pin adaptor) for external MIDI sync and feature control,
1/4” external single or dual footswitch input, and a USB port for recording, transferring
loops and MIDI sync to a Mac/PC.
Introducing the Sheeran Looper +

Record and Stream Via USB
Looper + makes it easy to reach a wider audience with your creations and
performances. When connected to a Mac, or PC, Looper + simply functions as a
2-in / 2-out USB audio interface, making it easy to record using your favorite DAW, or
to set up live streams and play to the world.

Different looper Modes for Versatility
Looper + offers intuitive looping out-the-box with four different looper modes to
achieve your ideal looping workflow.

• Single Mode: 1 track with limitless layers for creating simple and powerful loops like Ed did when building his live show career
• Multi-Mode: 2 tracks with a global loop length for building tracks, just like Ed’s
• stadium stage looper workflow
• Sync Mode: 2 tracks with different lengths that automatically stay in sync with each other
• Song Mode: 2 tracks with same or different lengths that function as independent song sections (ex. verse, chorus, etc.)

FEATURES

Designed by Ed Sheeran and his production team
• Intuitive Sheeran Looper™ single- and dual-track workflow
• Featuring 4 looper modes: Single, Multi, Sync and Song

Professional Hardware
• Incredibly durable die-cast aluminum pedals, as used on Ed’s stadium stage looper
• Full-color 1.8” display, loop status LED ring, and LED input / output monitoring
• Custom DSP powered by HeadRush®
• Professional 32-bit audio
• Undo/redo, solo, fade, reverse, 1/2 speed, solo, and mute performance functions

Connect Instruments and Microphones
• Combo XLR + 1/4” (6.35mm) input for connecting a dynamic microphone
• Stereo 1/4” (6.35mm) inputs for connecting guitars, basses, keyboards,
or other instruments
• Stereo 1/4” (6.35mm) outputs can be run in stereo, mono, or split modes

Connect External Gear
• 1/4” (6.35mm) external footswitch input for connecting additional footswitches
• 1/8” (3.5mm) MIDI input for external sync and external MIDI feature control

Battery and Mains Powered
• Power via standard 9V power supply, USB, or (4) AA batteries for street or stage
performance
• Over 6 hours of battery life during normal use; (4) AA batteries included

Recording and Storage
• Save up to 128 loops with over 3 hours of audio to internal storage; import/export
loops via USB
• Record your performance to Mac/PC via the integrated USB audio interface

Technical Specifications

• Display: 1.8" color LCD display
• Housing: Matte black powder coated steel chassis
• Pedals: (2) die-cast aluminum pedals with titanium grey satin finish
• Controls: 360° navigation wheel with push-to-enter and hold function with RGB LED ring indicator. Instrument input gain control knob with real-time LED input level meter. Microphone input gain control knob with real-time LED input level meter. Main volume control knob with real-time LED output level meter

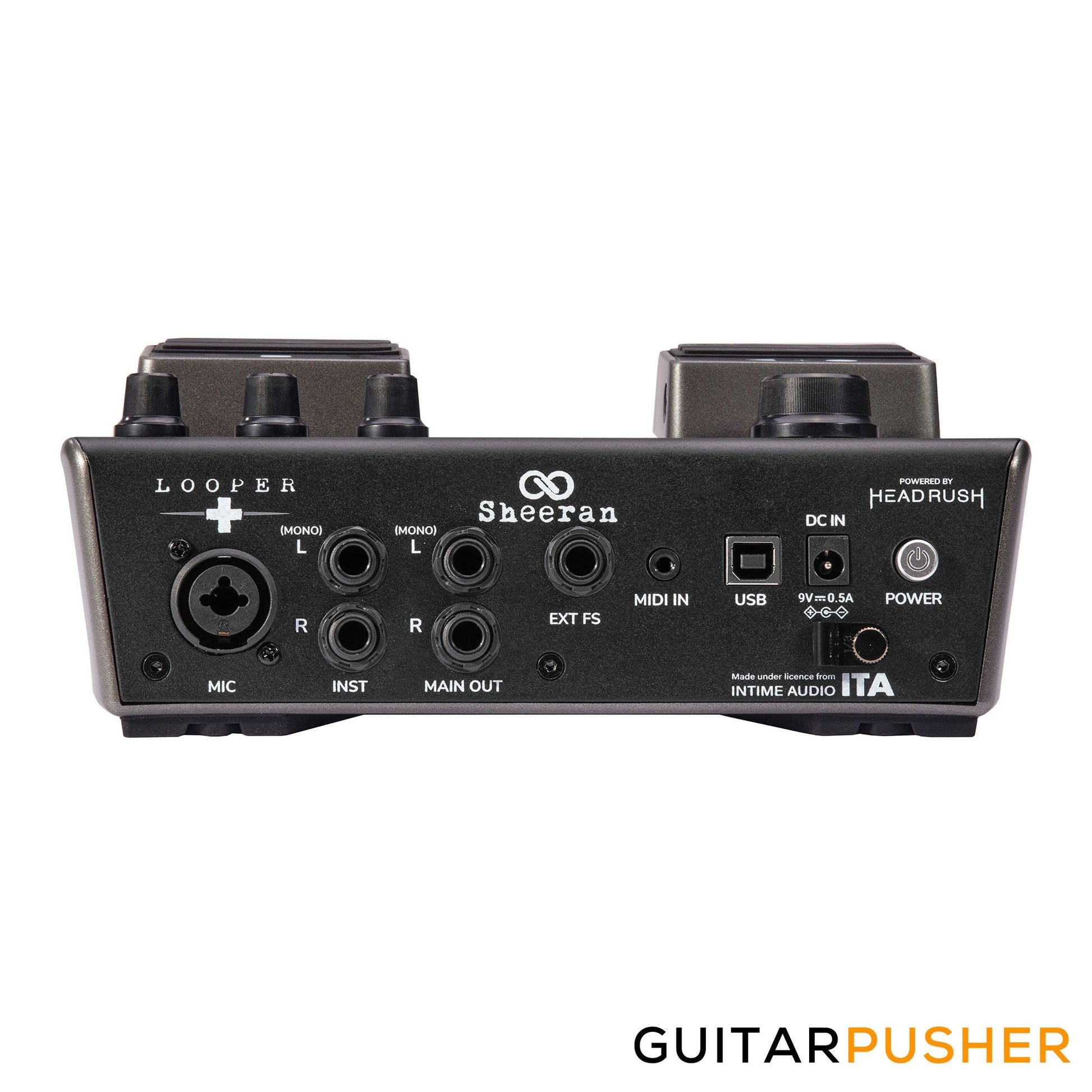

Rear Panel I/O
I/O: Combo XLR+1/4” (6.35 mm) balanced input (mono)
(2) 1/4” (6.35 mm) balanced inputs (stereo pair)
1/4" (6.35 mm) single or dual footswitch input (TS or TRS)
(2) 1/4” (6.35 mm) balanced outputs (stereo pair)
1/8” (3.5 mm) MIDI Input (5-Pin to 1/8” adapter included)
USB Type-B port
Power adapter input with power switch and cable restraint


Power Specifications

• DC Power Input: 9V DC, 500mA, Center-Negative (adapter not included)
• USB Power Input: Yes (for easy loop transfer)
• Battery Power Type: 4 x AA (Alkaline) (Included)
• Est. Battery Life: Over 6 Hours (may vary based on conditions of use/battery brand

Looping Specifications

• Looping Modes: 4 (Single, Multi, Song, Sync)
• Looping Functions: Record, Overdub, Play, Stop, Undo/Redo, Clear Track, Clear All, Reverse, 1/2 Speed, Fade In/Out, Solo, Mute
• Max # of Looper Tracks: 2
• Max Loop Length: 1.5 Hours
• Max Overdub Layers Per Loop: Unlimited Layers
• Max Overdub Time Per Loop: 30 Minutes
• Loop File Storage Format: .WAV (32-Bit PCM, 44.1 kHz)
• Max # of Stored Loops: 128
• Onboard Storage Time: Over 3 Hours
• Onboard Storage Space: ~4.1GB

Audio Processing Specifications

• Processor Type: Custom single-core HeadRush® DSP
• System Audio Bit Rate: 32-Bit PCM
• System Audio Sample Depth: 44.1 kHz
• A/D D/A Conversion: 24-Bit

Other Features and Functionality

• External Pedal Assignment: Yes (for Single or Dual Footswitch)
• USB Transfer Mode: Yes
• USB Audio Interface Mode: Yes
• Control from External MIDI Devices: Yes
• MIDI Clock Sync: Receive
• Audio Routing Customization: Stereo, Mono or Split (Loop/Dry)

USB Recording Specifications

• Bit Rate: 24-Bit
• Available Sample Depths: 44.1 kHz
• Input Channels: 2
• Output Channels: 2

USB Loop Import Specifications

• Supported File Types: Stereo .WAV
• Supported Bit Rates: 16-bit PCM, 24-bit PCM, 32-bit PCM, or 32-Bit Float
• Supported Sample Rates: 44.1 kHz

Dimensions and Weight

• Pedal Dimensions (WxDxH): 8.52” x 6.24” x 3” (21.64 x 15.85 x 7.62 cm)
• Pedal Weight: 3.75 lbs. (1.7 kg)
• Box Dimensions (WxDxH): 12” x 9.24” x 6.12” (30.48 x 23.47 x 15.55 cm)
• Box Weight: 5.51 lbs. (2.5 kg)
