CHUG – HIGH GAIN PREAMP WITH GATE

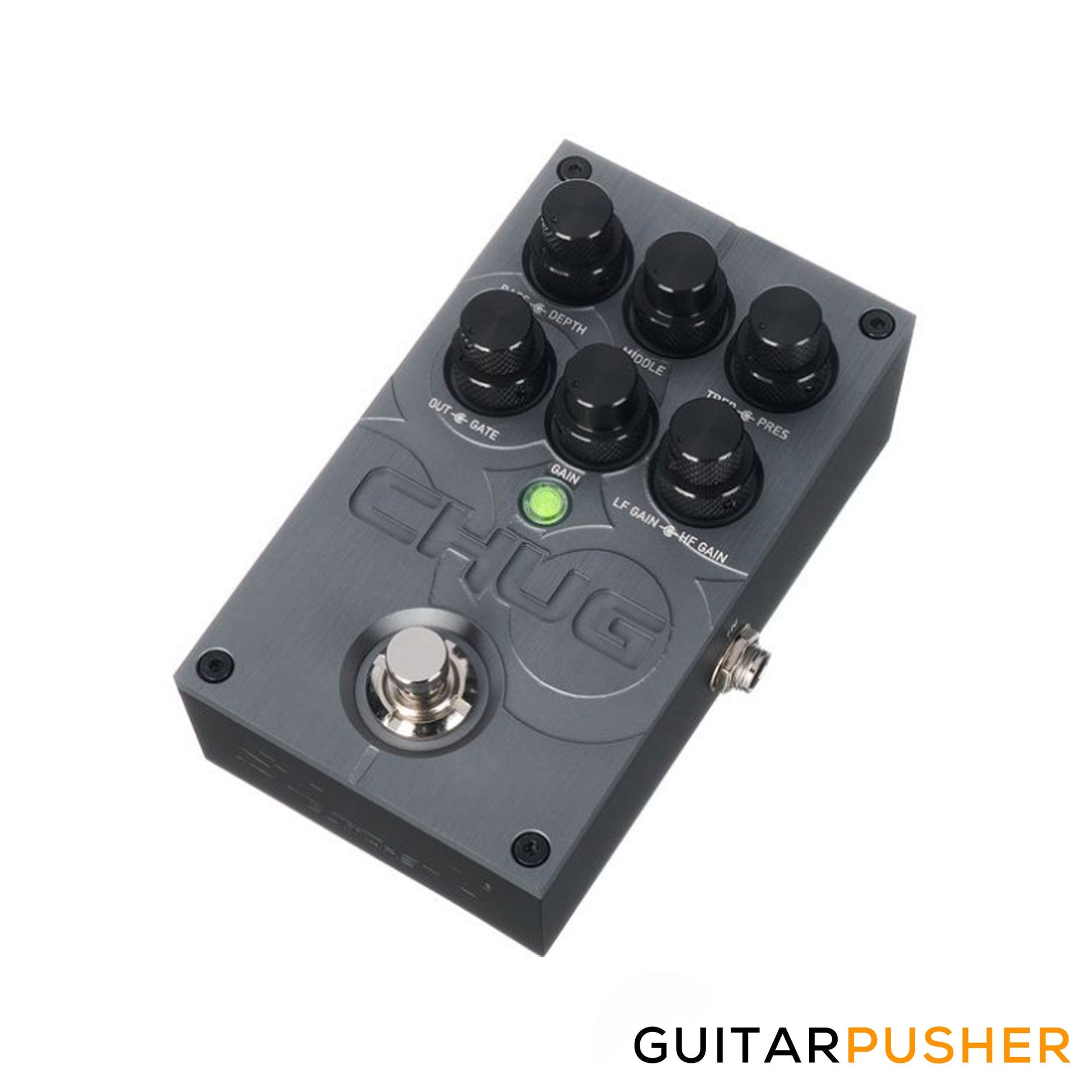

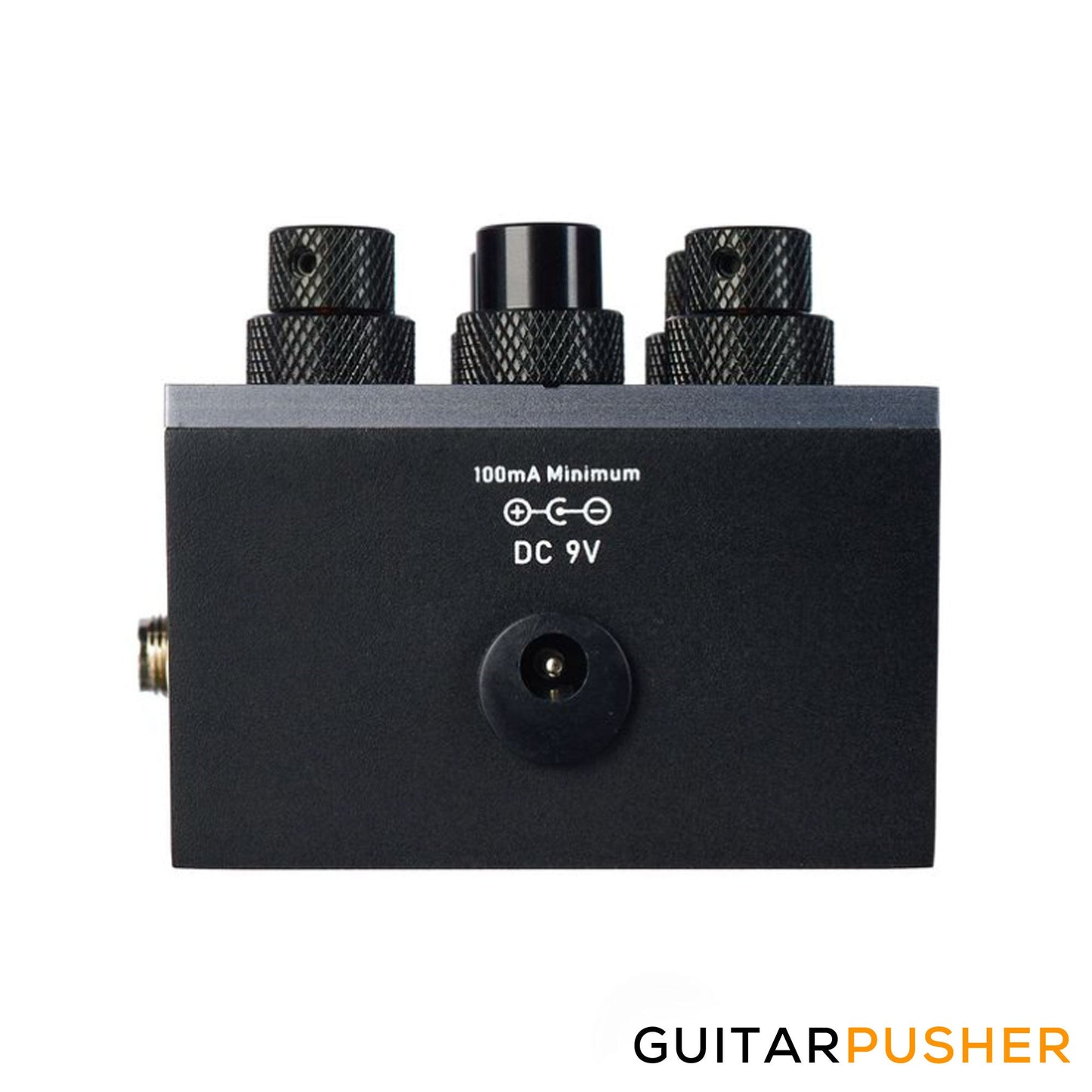

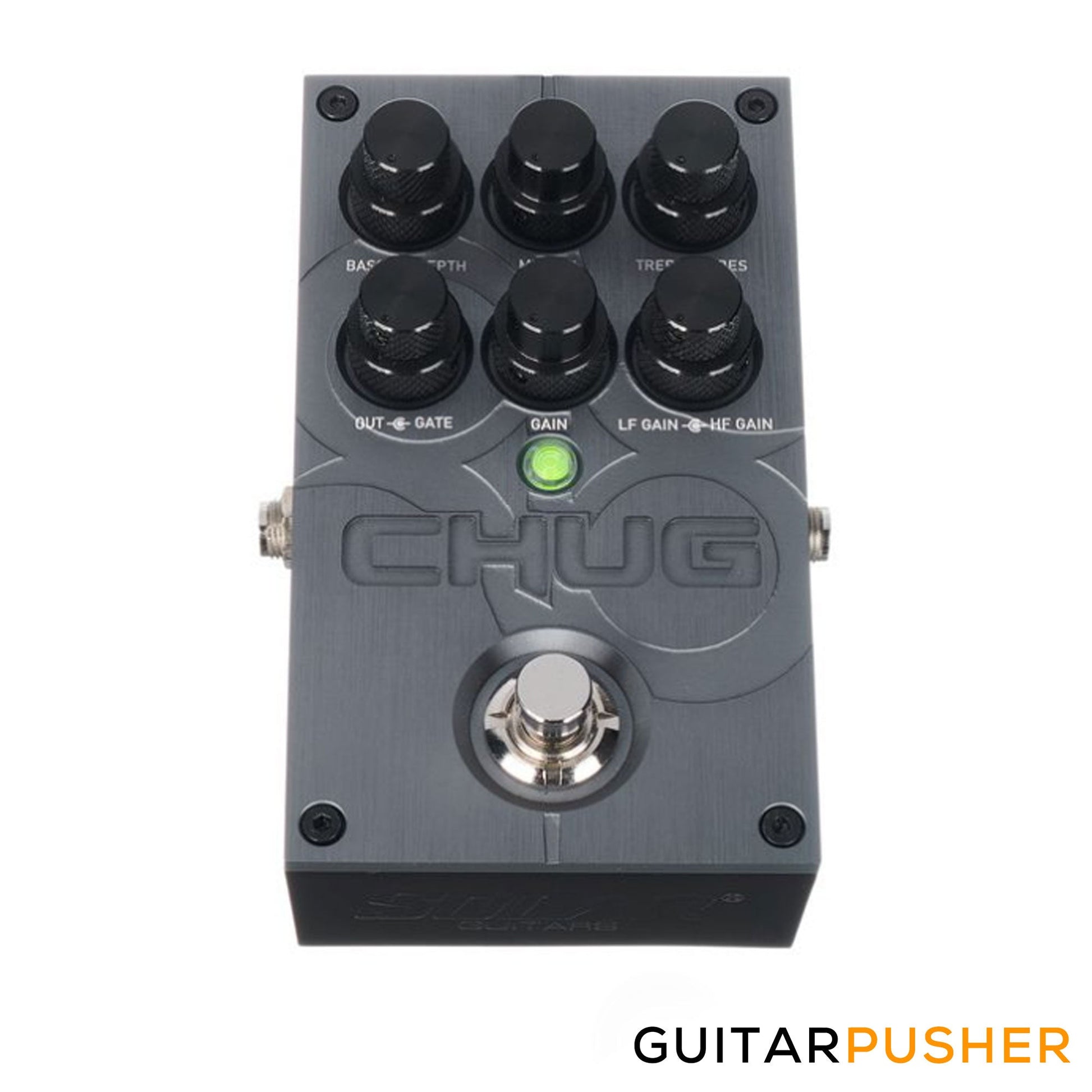

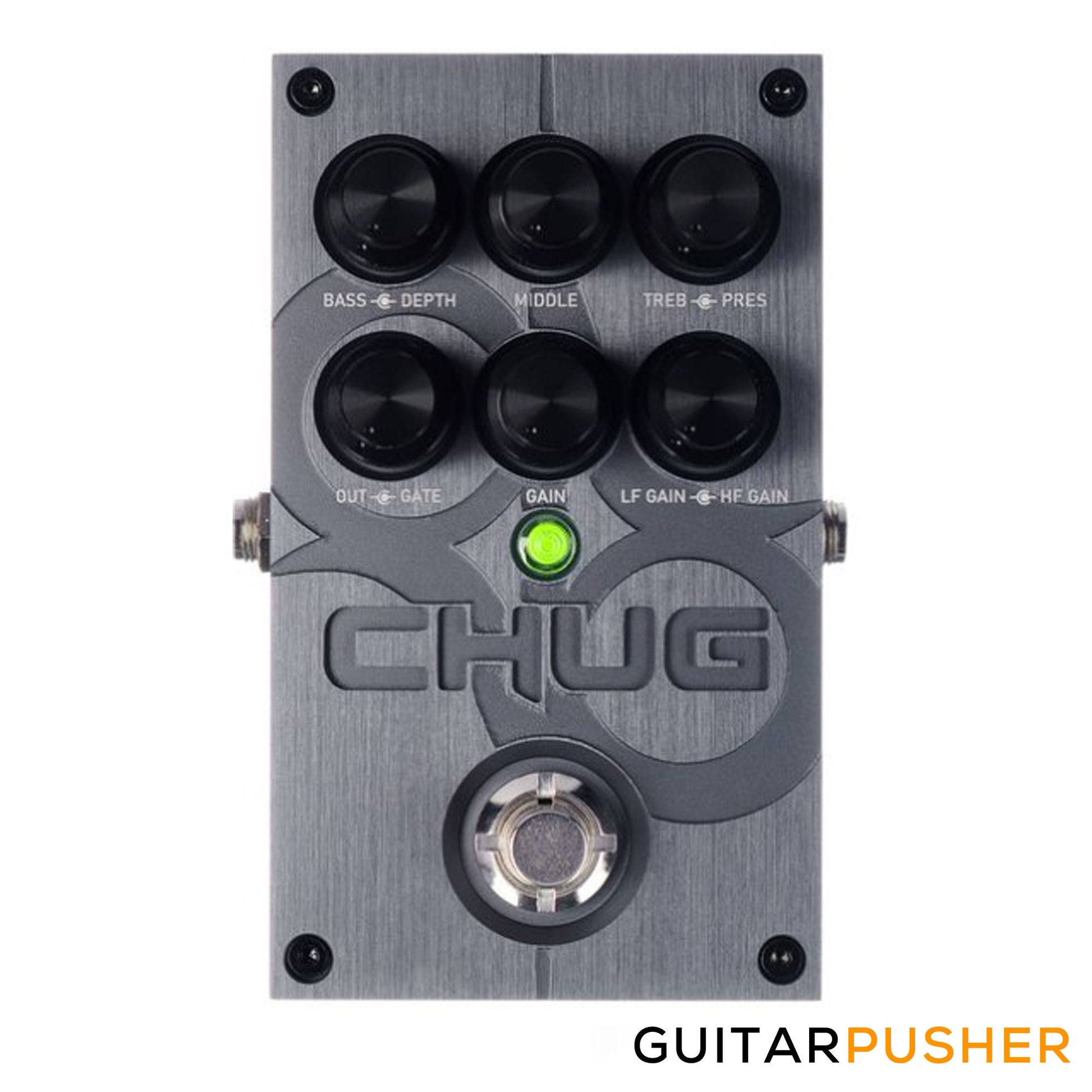

The CHUG pedal circuit has been optimally voiced as a “pre-amp”. This means that it is designed to take the place of the High Gain preamplifier circuit channel in a guitar amplifier. The signal starts by passing through a network of High Frequency and Low Frequency filters while offering the ability to add an enormous amount of Gain and overdrive. Equalization options are extensive with Bass, Middle and Treble controls preceding Depth and Presence for true amplifier feel. A keenly programmed noise Gate fed by the input signal and indicated by change in color of the LED is followed by the output that works like a master volume. It is housed in an all metal “built like a tank” enclosure with top quality jacks and switches. Power supply is not included (9VDC 100MA minimum). The sound, flexibility and overall style has been supremely tailored for maximum CHUG!

Plugging into Power Amplifier -or- FX Loop return of Instrument Amplifier.

Follow the setting below and others in video as starting point for this type of application. Begin with output at zero.

Plugging into Audio Interface

Exclusive custom “IR” Impulse Response file included FREE with every CHUG purchase. File will be sent with order confirmation

Plugging into Clean Channel of Guitar Amplifier

Use setting below and others in video as starting point for plugging into front instrument input of guitar amplifier head or combo.
