Switchcraft

Switchcraft 1/4 Jack Socket Stereo, Double Open Circuit

Switchcraft 1/4 Jack Socket Stereo, Double Open Circuit

₱250.00 PHP
₱0.00 PHP ₱250.00 PHP
Sale Sold out
SKU:SWCJACK12B-STEREO

1/4" Jack - Switchcraft, Stereo, double open circuit

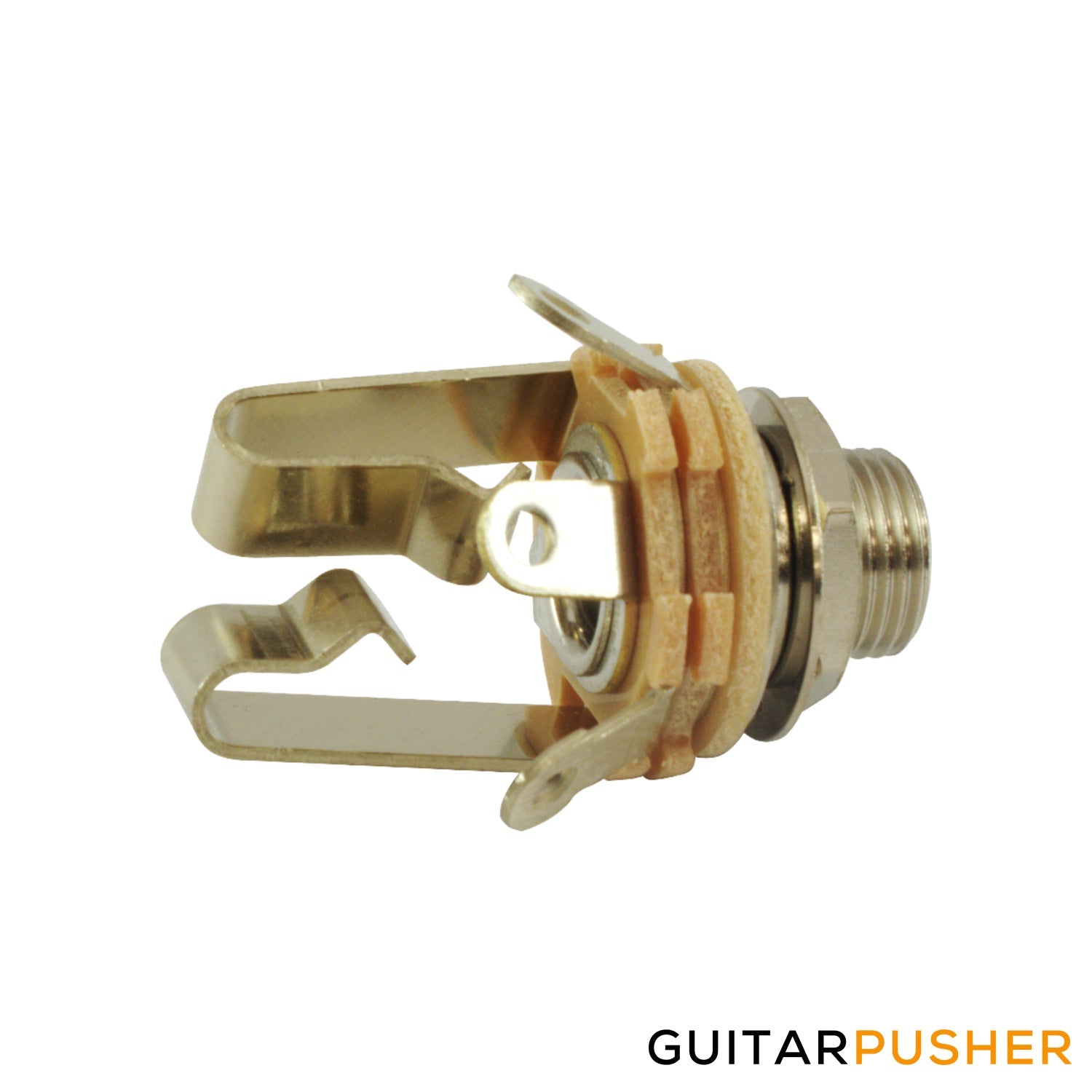

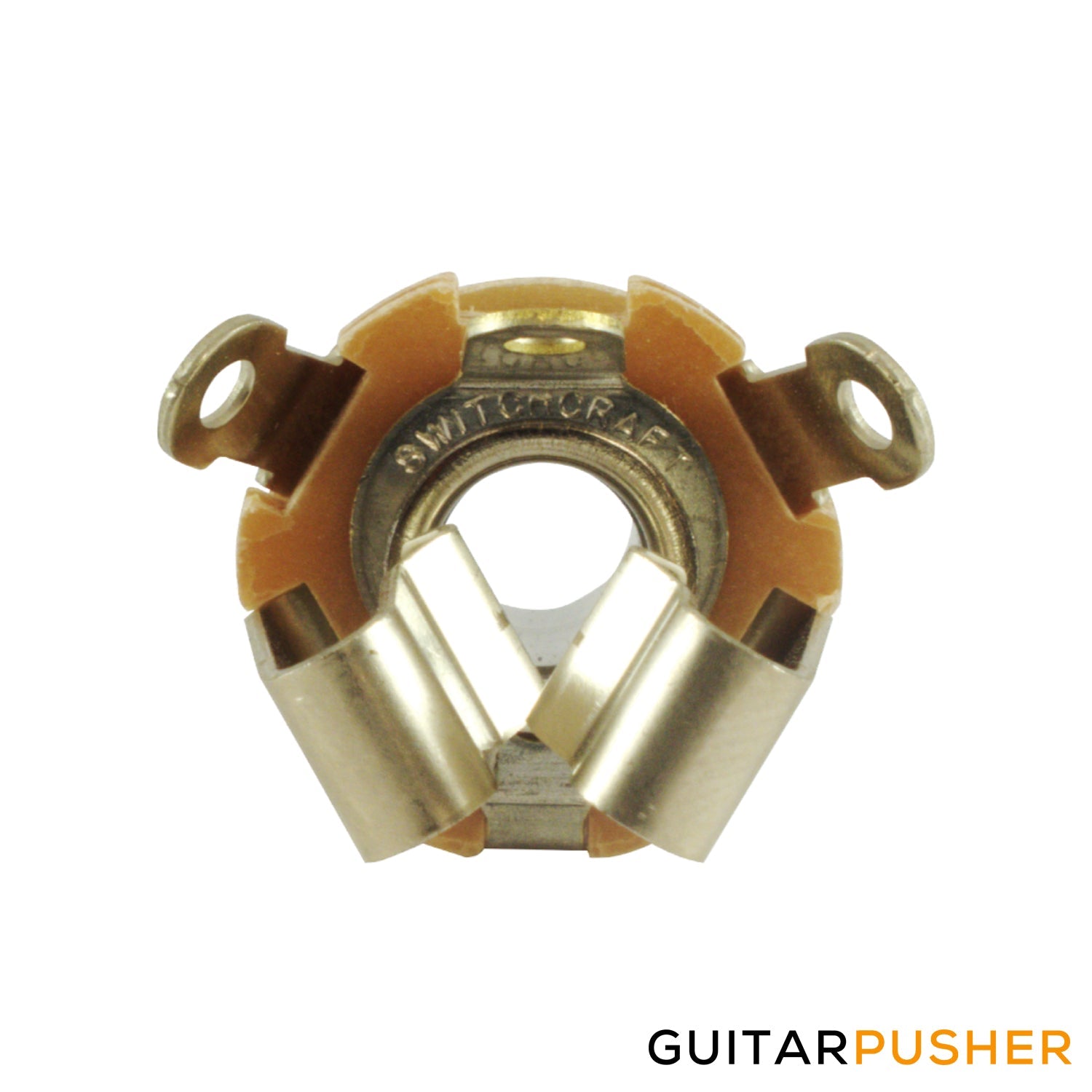

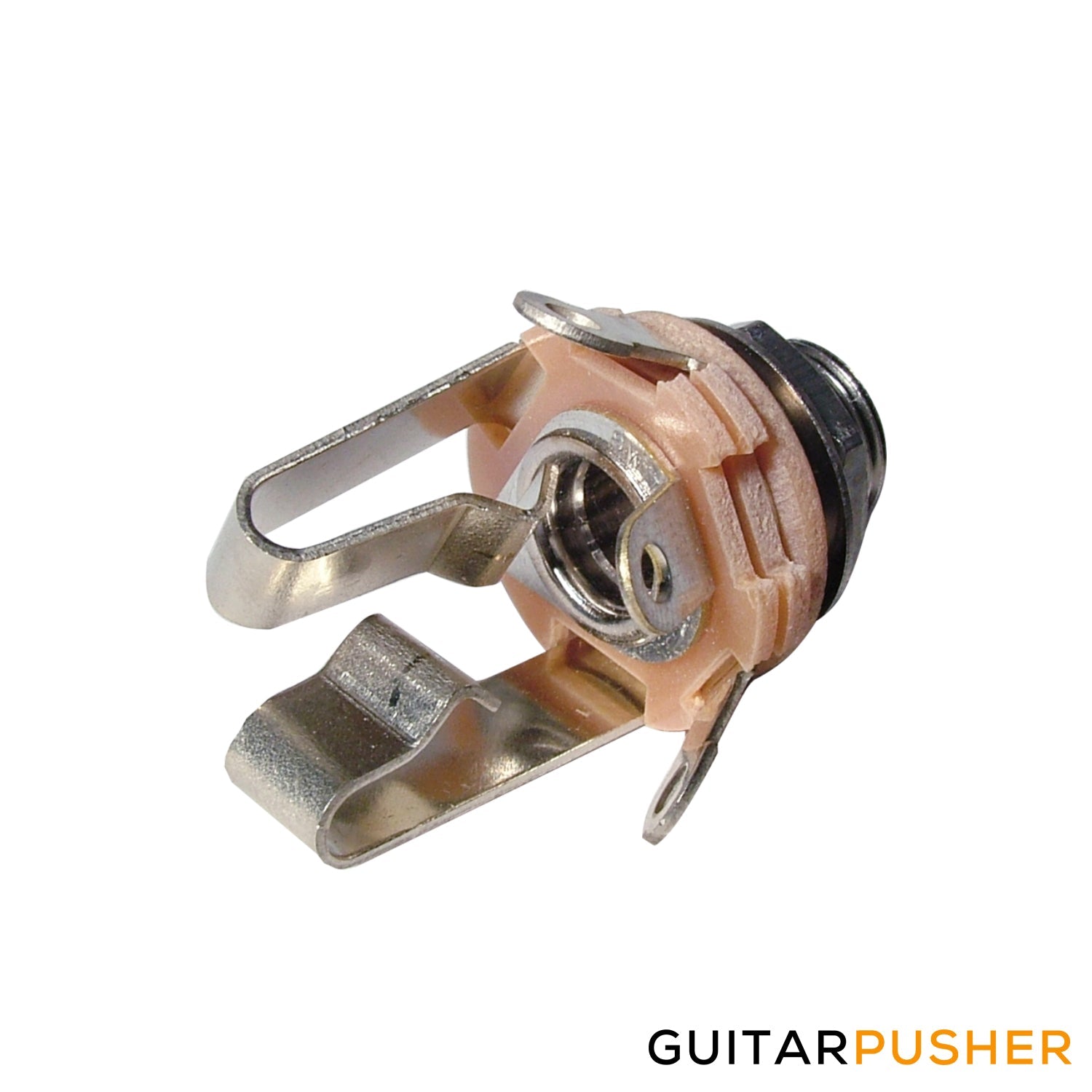

Switchcraft Type 12B Littel-Jax stereo phone jack.

  • Mates with standard ¼" plugs and is available with 0.25" inside diameter bushing.
  • Stereo 3-Conductor.
  • Double open Circuit (does not have switched terminal).
  • Includes nut and washer.

Material

Mounting Bushing Nickel-plated copper alloy.
Insulation Rigid plastic
Springs Special copper alloy. Fine silver contacts
Sleeve Terminal Copper alloy
Hardware

Supplied with one copper alloy nickel-plated hex nut, and one copper alloy nickel-plated washer



Switching Diagram

Measurements

Bushing Length 0.275 in.
Item Diameter 0.75 in.
Item Length 1.015 in.
Mounting Hole Diameter 0.0375 in.
Plug Diameter 0.25 in.
