Turbosound TFM122M-AN Coaxial 2500W 2-Way 12" Stage Monitor w/ Klark Teknik DSP Technology & ULTRANET
Turbosound TFM122M-AN Coaxial 2500W 2-Way 12" Stage Monitor w/ Klark Teknik DSP Technology & ULTRANET
Coaxial 2500 Watt 2 Way 12" Stage Monitor with Klark Teknik DSP Technology and ULTRANET
Product Features
-
2 way stage monitor for touring applications
-
2,500 Watt power featuring Klark Teknik Class-D technology
-
Klark Teknik Digital Signal Processing for total system control
-
ULTRANET digital audio networking connects to mixers and other sources
-
Carbon fibre loaded 12" neodymium motor low frequency driver
-
Titanium dome 1.4" neodymium motor compression driver
-
Low profile design to maximise audience sight lines
-
Low distortion waveguide provides 60? H x 40? V dispersion
-
Fully featured user interface with LCD display for ease of navigation
-
PC remote control software downloadable at turbosound.com
-
15 mm (5/8") plywood enclosure with fibre glass reinforced composite end cheeks
-
Hard wearing semi matt black paint finish
-
Rugged powder coated perforated steel mesh grille
-
Durable handle for easy lifting and carrying
-
Mains input and link output on Neutrik powerCON* connectors
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
FLASHLINE MONITORS TFM122M-AN
The 2-way full range TFM122M-AN is a 2,500 Watt 12" powered loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. Designed to work individually without a controller, the TFM122M-AN provides optimal performance for wedge monitoring and is an exceptional choice for FOH, sidefill and delay line applications.
Custom-Engineered Drivers
Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TFM122M-AN loudspeaker features a carbon fibre loaded 12" neodymium low frequency driver and a titanium dome 1.4" neodymium high frequency compression driver, which is mounted on a 60° horizontal by 40° vertical dispersion low distortion waveguide.
Class-D – Massive Power, Perfect Sound
Equipped with a very efficient and lightweight Klark Teknik Class-D power amplifier, the TFM122M-AN provides an impressive 2,500 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.
Onboard DSP
A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.
ULTRANET Connectivity
ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Intuitive User Interface

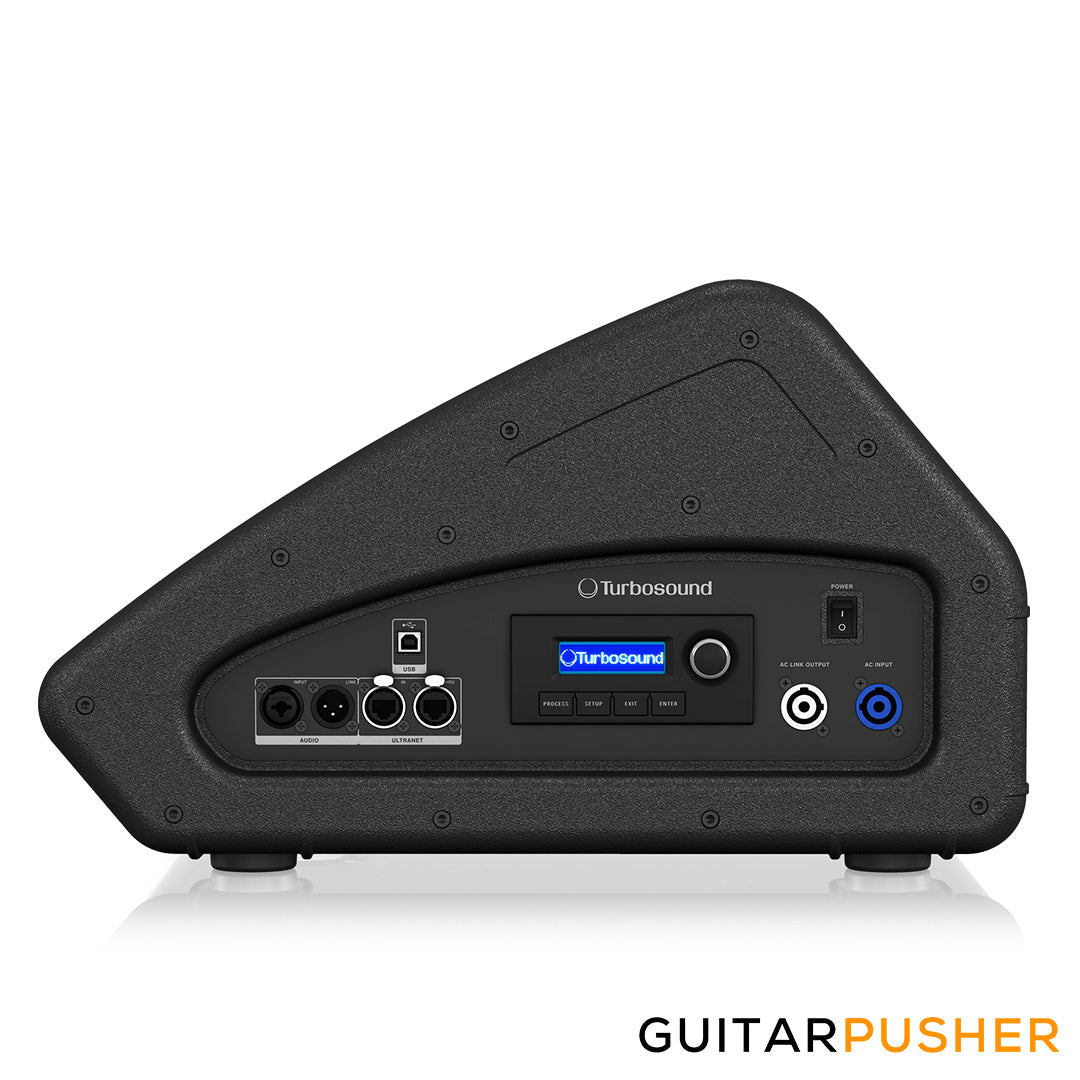

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TFM122M-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.
Plywood Construction
Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8") plywood with fibre glass reinforced composite end cheeks and a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TFM122M-AN includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and a durable handle for easy transport. TFM122M-AN’s low profile design provides improved audience line of sight for seamless integration into any application. Mains power input is provided via a Neutrik powerCON* connector.
Touring-Grade Performance
Designed to provide exceptional and unobtrusive onstage performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,500-Watt TFM122M-AN puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.
Specification
System
Frequency Response | 70 Hz – 18 kHz ±3 dB 63 Hz – 20 kHz -10 dB |
Nominal Dispersion | 60° H x 40° V @ -6 dB points, rotatable |
Maximum SPL | 130 dB peak |
Crossover type | Active |
Transducers | 1 x 12" (315 mm) LF driver 1 x 1.4" (33 mm) HF compression driver |
Limiter | Independent HF, LF, peak and rms |
Amplifier
Maximum output power* | 2500 W* |
Type | Class-D |
Protection | Short circuit, thermal |
Connectors
Input / Link | 1 x combo jack/XLR, 1 x XLR |
Ultranet input/link | 2 x RJ45 |
Mains Supply | Neutrik powerCON input 20A and link 15A† |
Controls
DSP | Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter |
User DSP Functions
Factory EQ presets | Positioning, Sound mode, FBQ |
Display | LCD 128 x 32, blue , backlit |
Delay | 0 - 300 ms |
Equalisation | High and low shelving EQ, 2 x parametric EQ |
Limiter | Zero attack input limiter |
Presets | 20 total presets, 19 user-definable |
Crossover | High pass L-R 24 dB/oct |
Protection | Lock-out function for all settings |
Ultranet Digital Network
Digital processing | |
System | |
Cabling |
Power Supply
Power consumption | 180 W @ 1/8 max power** |
Voltage (fuses) |
Enclosure
Dimensions (H x W x D) | 302 x 452 x 504 mm (11.9 x 17.8 x 19.9") |
Net weight | 16.5 kg (36.3 lbs) |
Construction | 15 mm (5/8") birch plywood + polypropylene plastic |
Finish | Semi matt black paint |
Grille | Powder coated perforated steel |
Flying hardware | N/A |
†Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
**Power consumption for a single device only.
