WD 3mm, Water Clear, High Brightness, LED Light (5 pcs.)
WD 3mm, Water Clear, High Brightness, LED Light (5 pcs.)
Couldn't load pickup availability

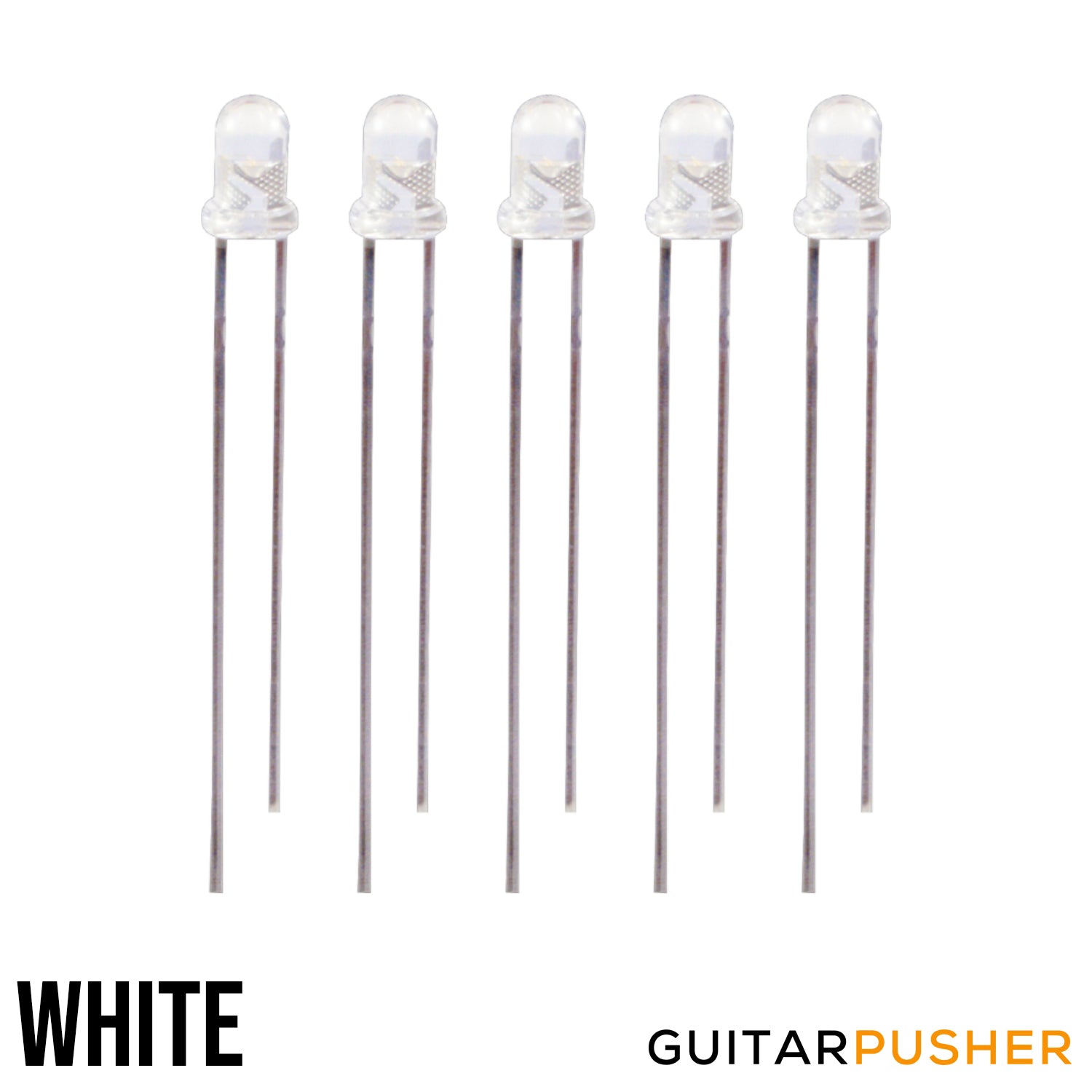

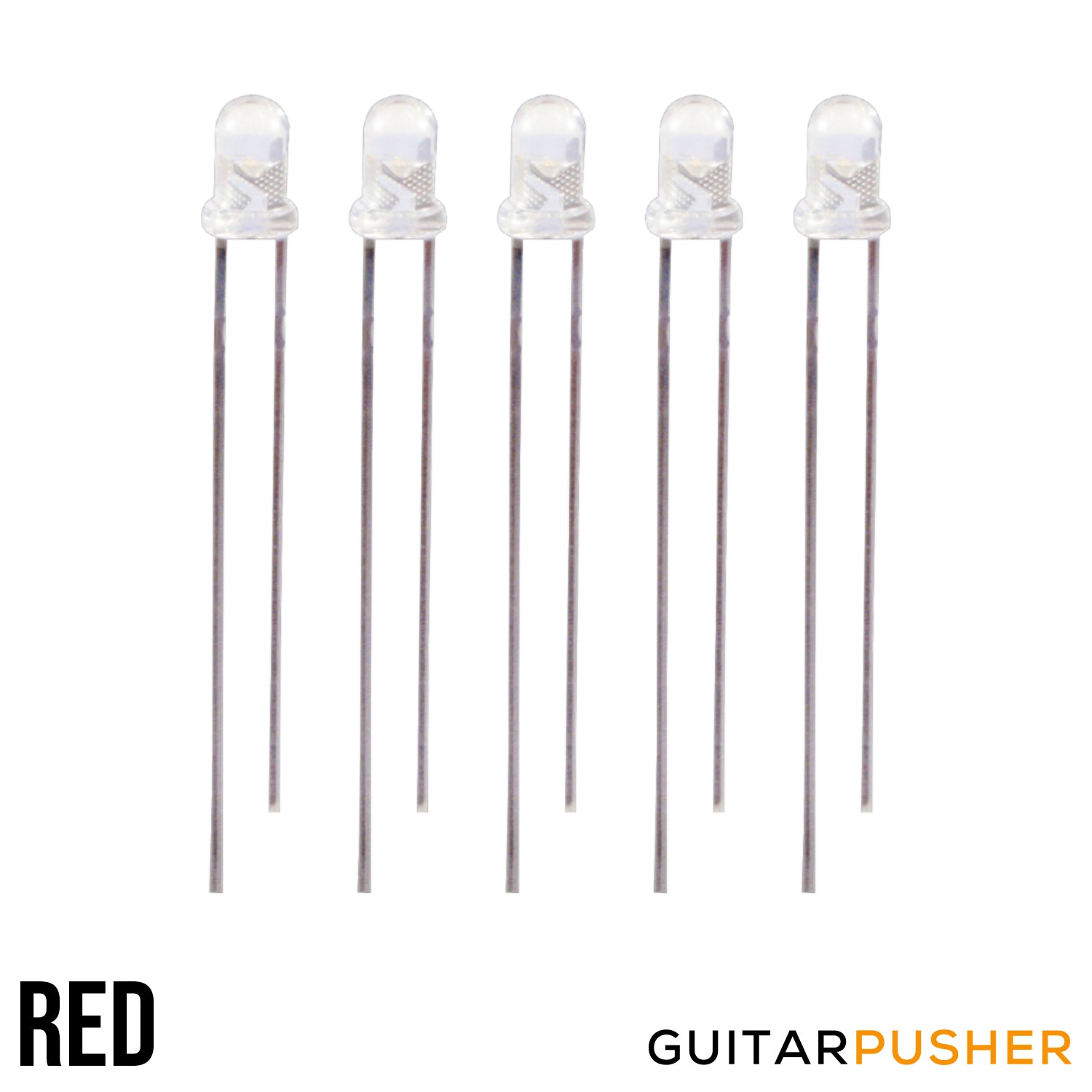

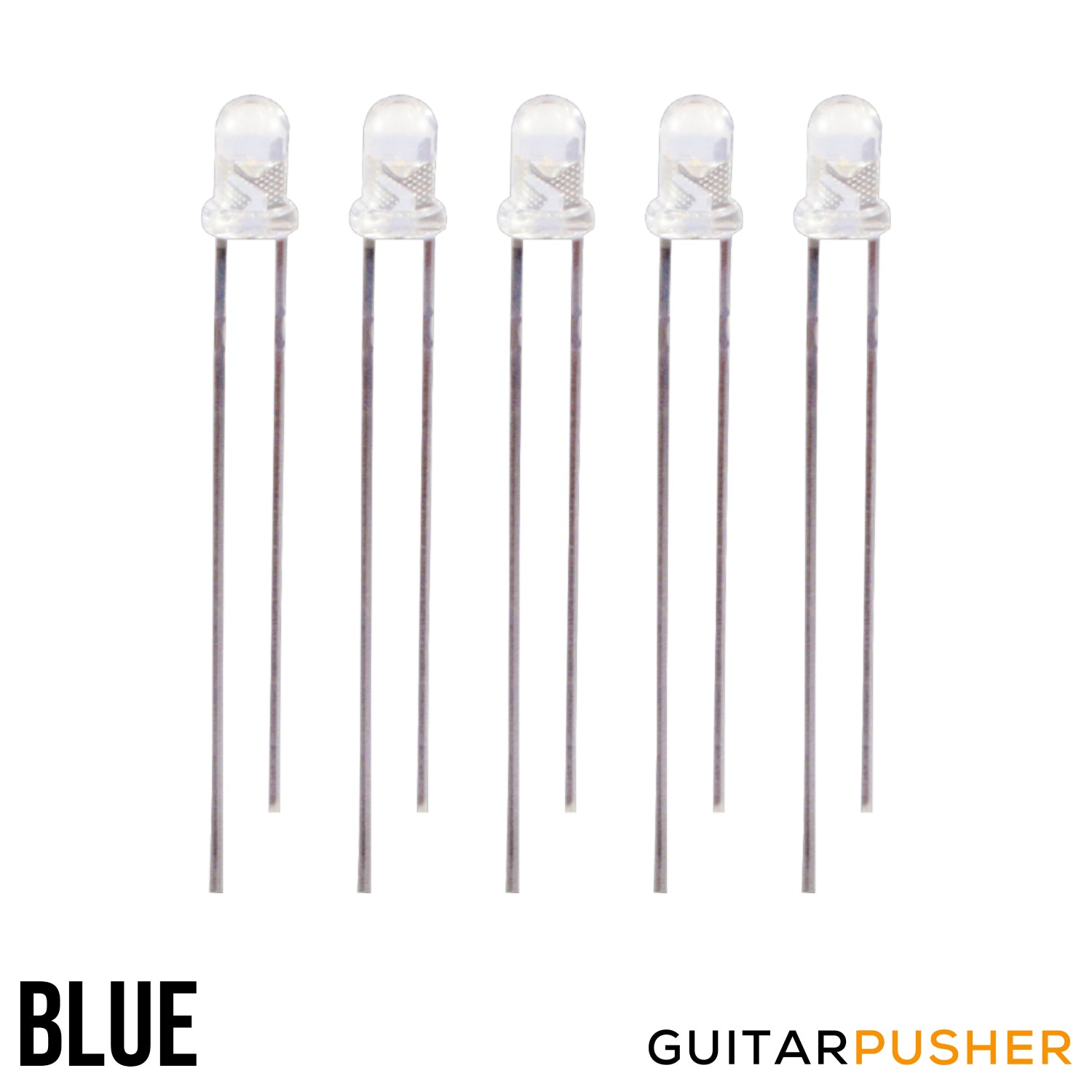

LED - 3mm, Water Clear, High Brightness, Package of 5
High brightness 3mm LED. Great for use in pedal builds and other applications where a bold, bright, indicator is needed. Multiple colors available.
- 3mm size
- Water clear
- High brightness
- Multiple colors available
- Package of 5
Measurements
| Continuous Forward Current (IF) | 20 mA | ||
| Forward Voltage (VF) @ 20mA | Blue version | P-L600-B | ≤ 4.0 V, 3.0 V typical |
| Green version | P-L600-G | ≤ 4.0 V, 3.0 V typical | |
| Red version | P-L600-R | ≤ 3.0 V, 2.1 V typical | |
| White version | P-L600-W | ≤ 4.0 V, 3.1 V typical | |
| Yellow version | P-L600-Y | ≤ 3.0 V, 2.1 V typical | |
| LED Diameter | 3.1 mm | ||
| LED Height | 3.3 mm | ||
| Lead Length | 27 mm | ||
| Lead Soldering Temperature | 260°C for 3 seconds | ||
| Luminous Intensity (Iv) @ 20 mA | Blue version | P-L600-B | 10,000 mcd |
| Green version | P-L600-G | 8,000 mcd | |
| Red version | P-L600-R | 15,000 mcd | |
| White version | P-L600-W | 17,000 mcd | |
| Yellow version | P-L600-Y | 18,000 mcd | |
| Operating Temperature (TJ) | -40°C to 85°C | ||
| Peak Continuous Forward Current (IF) | 50 mA | ||
| Peak Wavelength | Blue version | P-L600-B | 465 nm |
| Green version | P-L600-G | 525 nm | |
| Red version | P-L600-R | 625 nm | |
| White version | P-L600-W | x = 0.26, y = 0.24 | |
| Yellow version | P-L600-Y | 590 nm | |
| Power Dissipation (PD) | 100 mW | ||
| Reverse Current (IR) | 10 μA | ||
| Reverse Voltage (VR) | 5 V | ||
| storage temperature (Tstg) | -40°C to 85°C |
