WD 9 Volt Mount Battery Box

WD® 9 Volt Battery Box

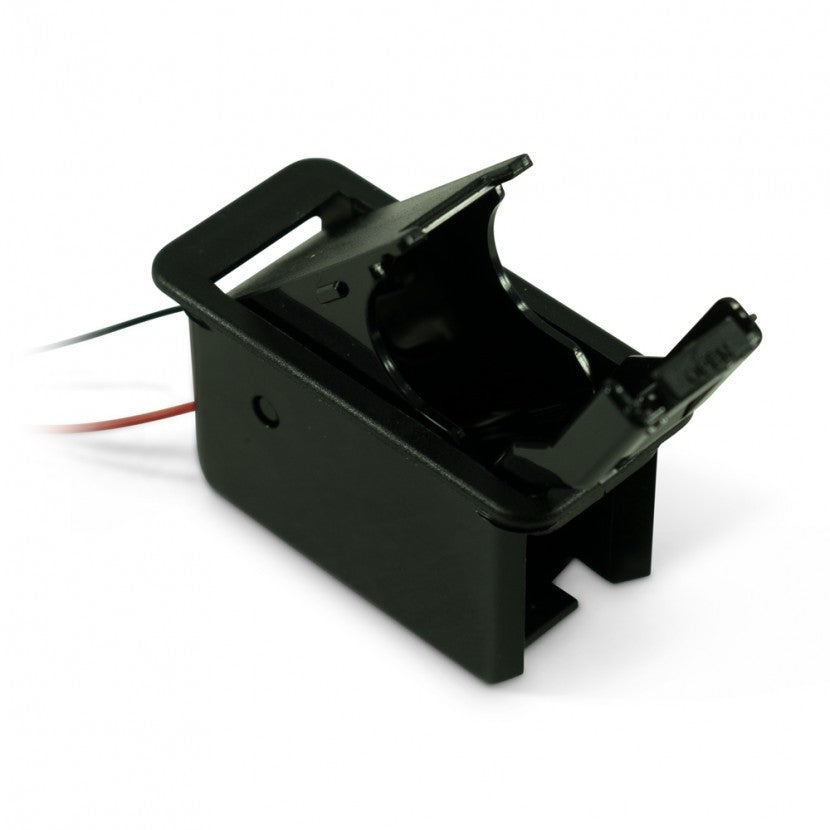

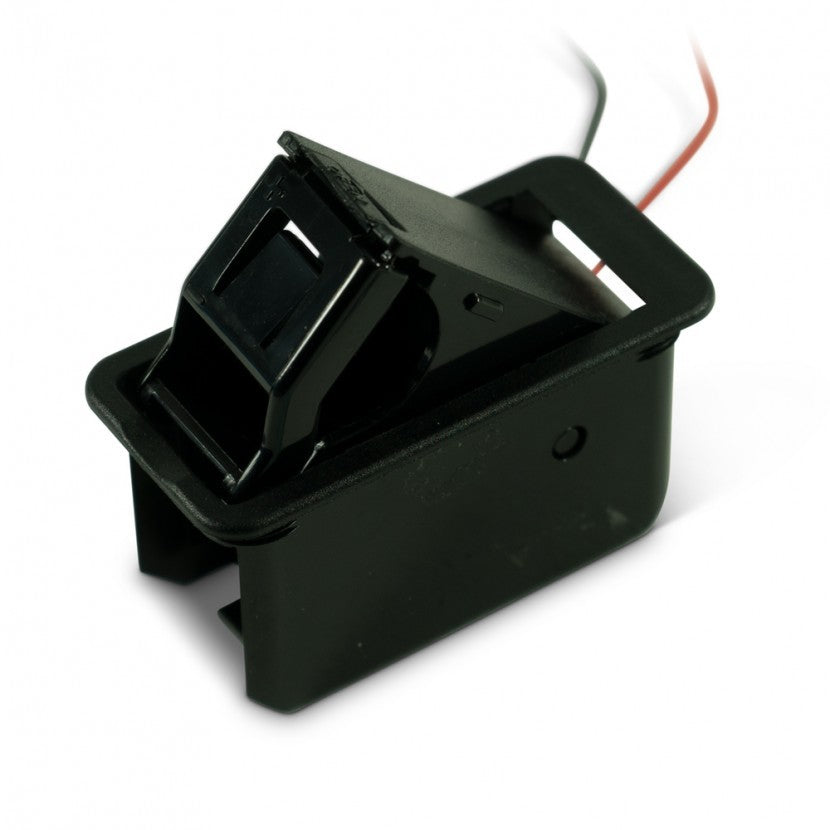

The standard mount battery box is designed to mount in a guitar body that is able to be routed for 1 5/16 inches depth minimum and holds a 9 volt battery. The chamber that holds the battery rotates by lifting the tab and then has a door that snaps in place to hold the battery securely within the box. A lead approximately 10 - 11 inches long is soldered in place to be wired into your harness.

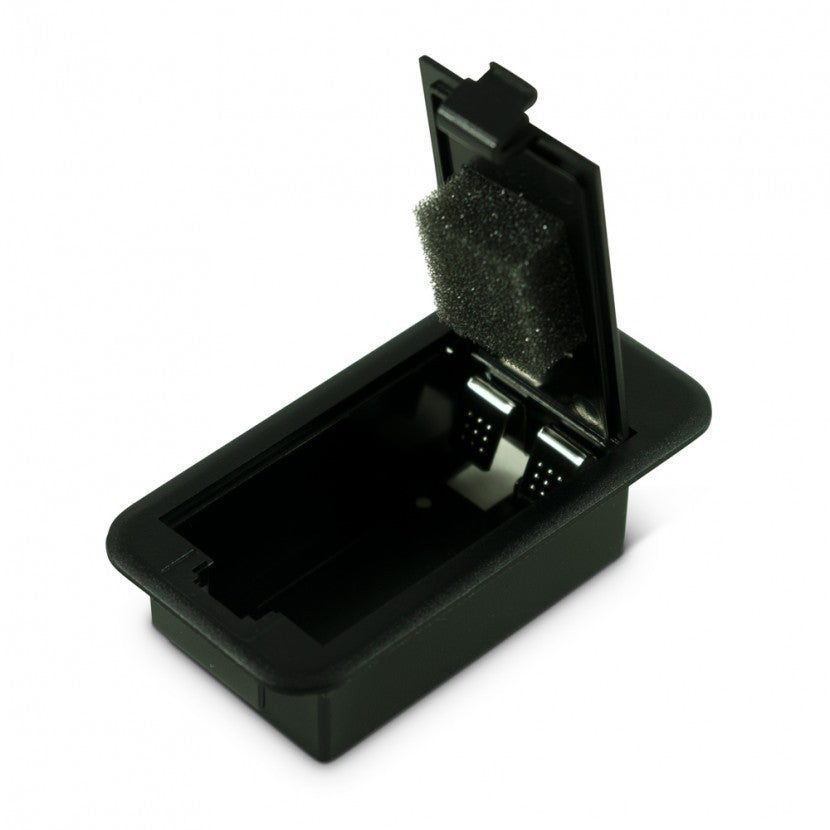

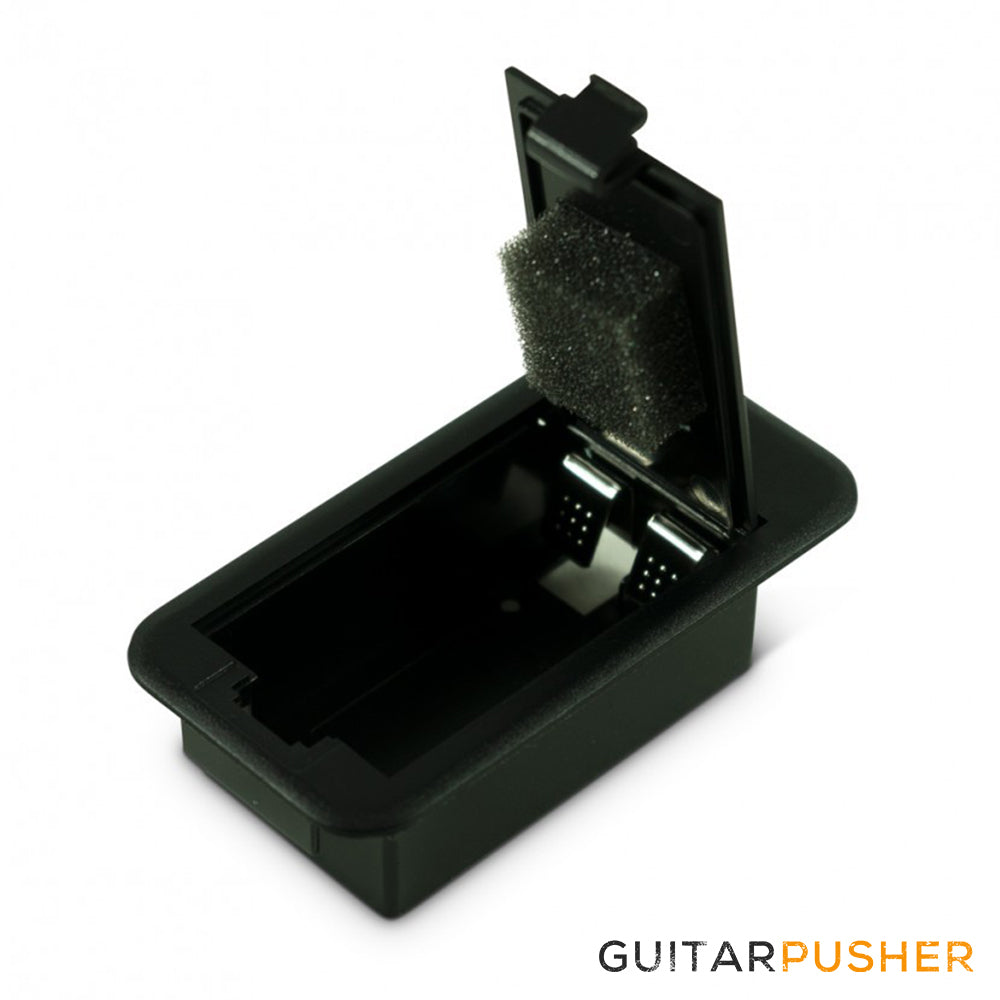

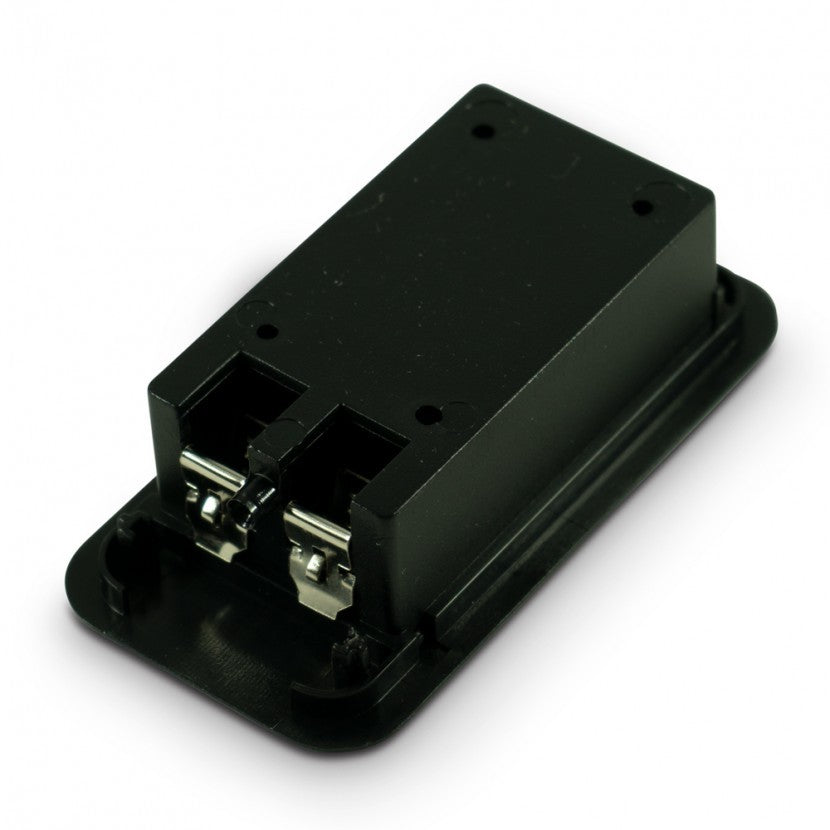

The shallow mount battery box is designed to mount in a thin guitar body that requires a shallow battery box. It requires 13/16 in. depth minimum and holds a 9 volt battery flat on its side. The chamber that holds the battery is accessed by the tab that when open allows you to place the battery securely within the box and has foam attached to the inside lid to hold the battery firmly in place. Electrical lead is NOT included with this battery box.

Standard Mount:

• Battery box dimensions= 1 5/16 in. (33mm) depth X 2 7/32 in. (56.3mm) length X 63/64 in. (24.95mm) width
• Material= black PVC
• Lead = two wire soldered included
• Battery type = 9 Volt
• Lip edge = 3/32 width


Shallow Mount:

• Battery box dimensions= 13/16 in. (20mm) depth X 2 1/8 in. (73mm) length X 1 11/32 in. (34mm) width
• Material= black PVC
• Lead= NOT included
• Battery type= 9 Volt
• Lip edge = 1/8 in. (3.4mm) width
