WD Chassis Box - 1590A, Diecast, 3.64" x 1.52" x 1.06"

WD Chassis Box - 1590A, Diecast, 3.64" x 1.52" x 1.06"

₱450.00 PHP
₱0.00 PHP ₱450.00 PHP
Sale Sold out
SKU:WDPH1590ACE
Color

Chassis Box - 1590A, Diecast, 3.64" x 1.52" x 1.06"

Equivalent to Hammond's P-H1590A.

  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.

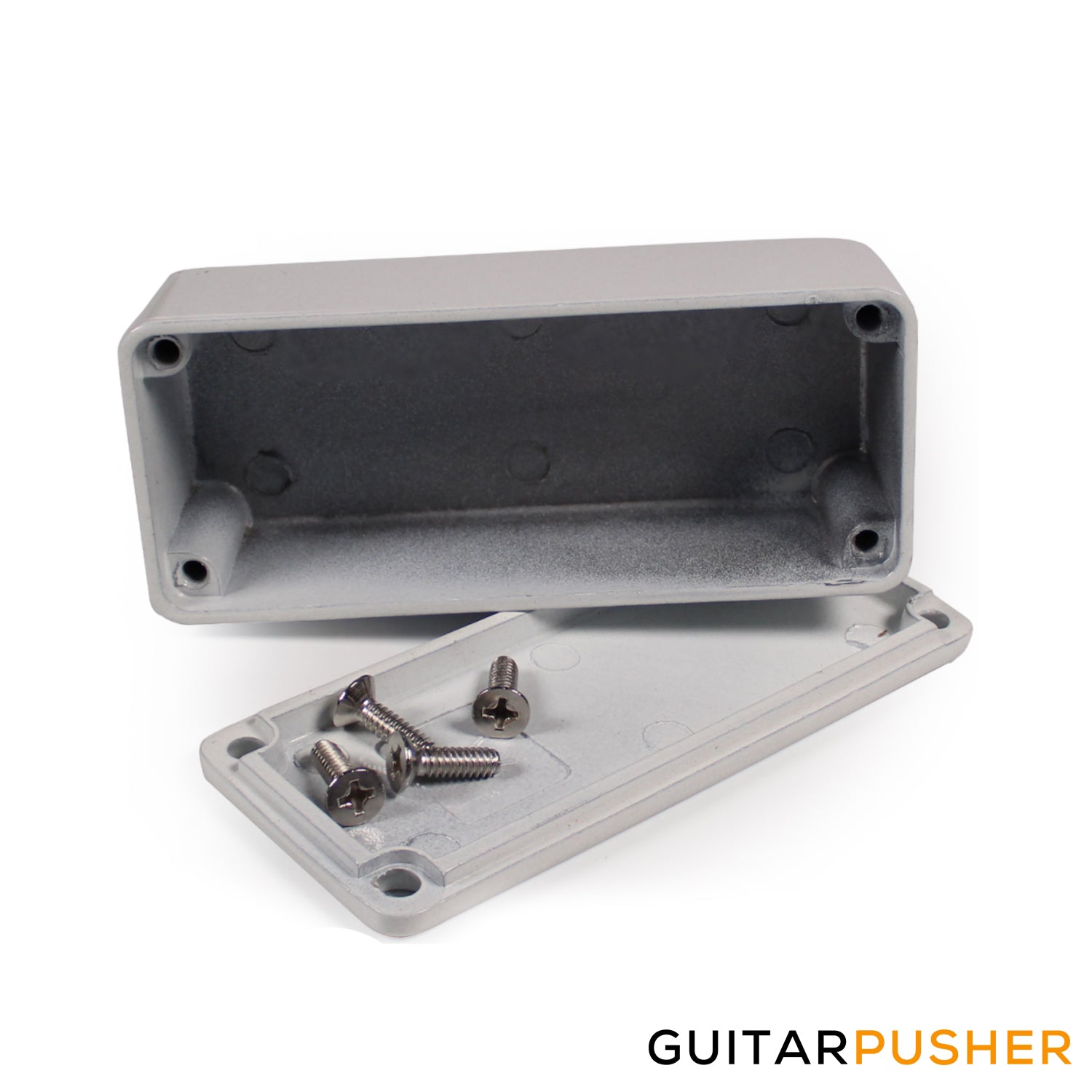

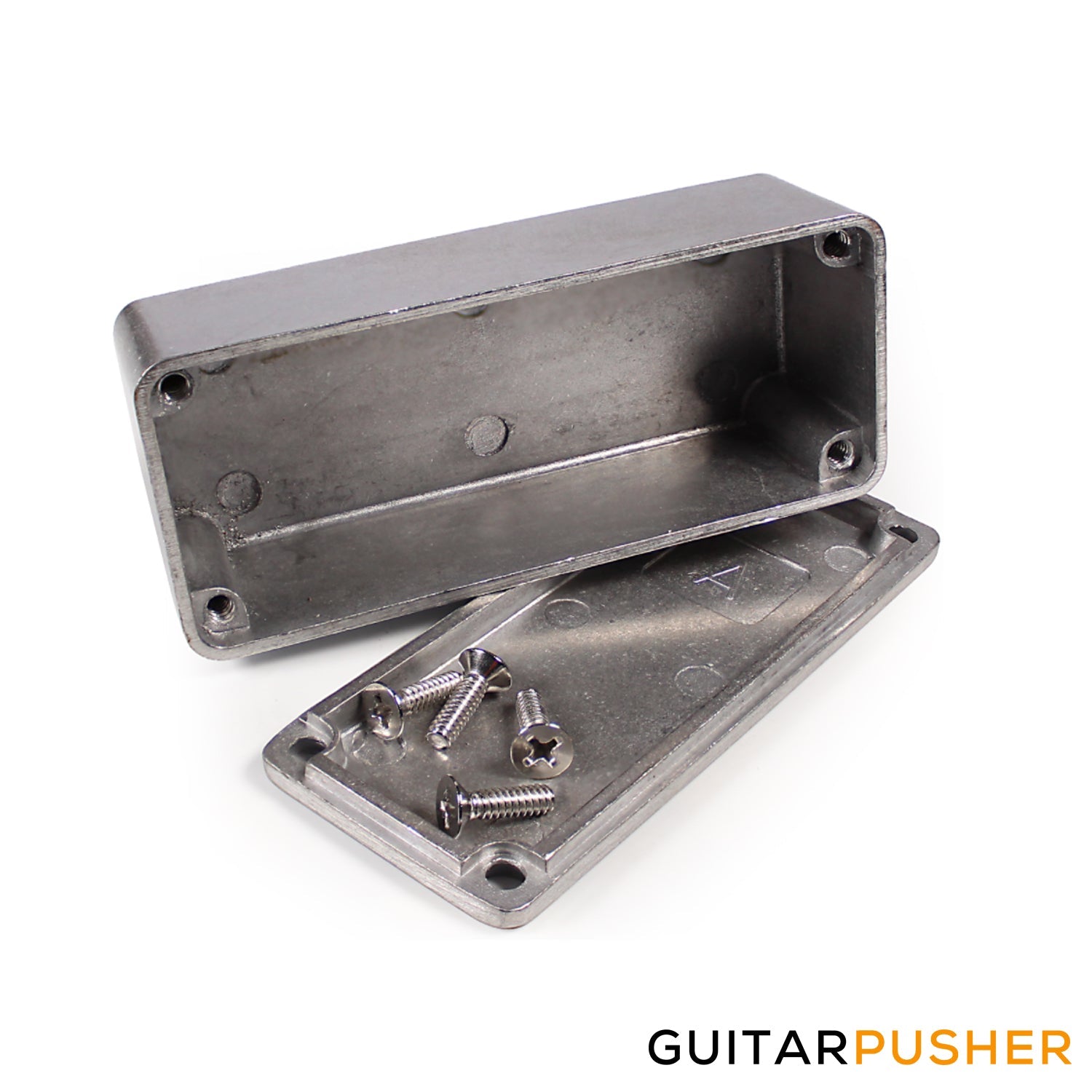

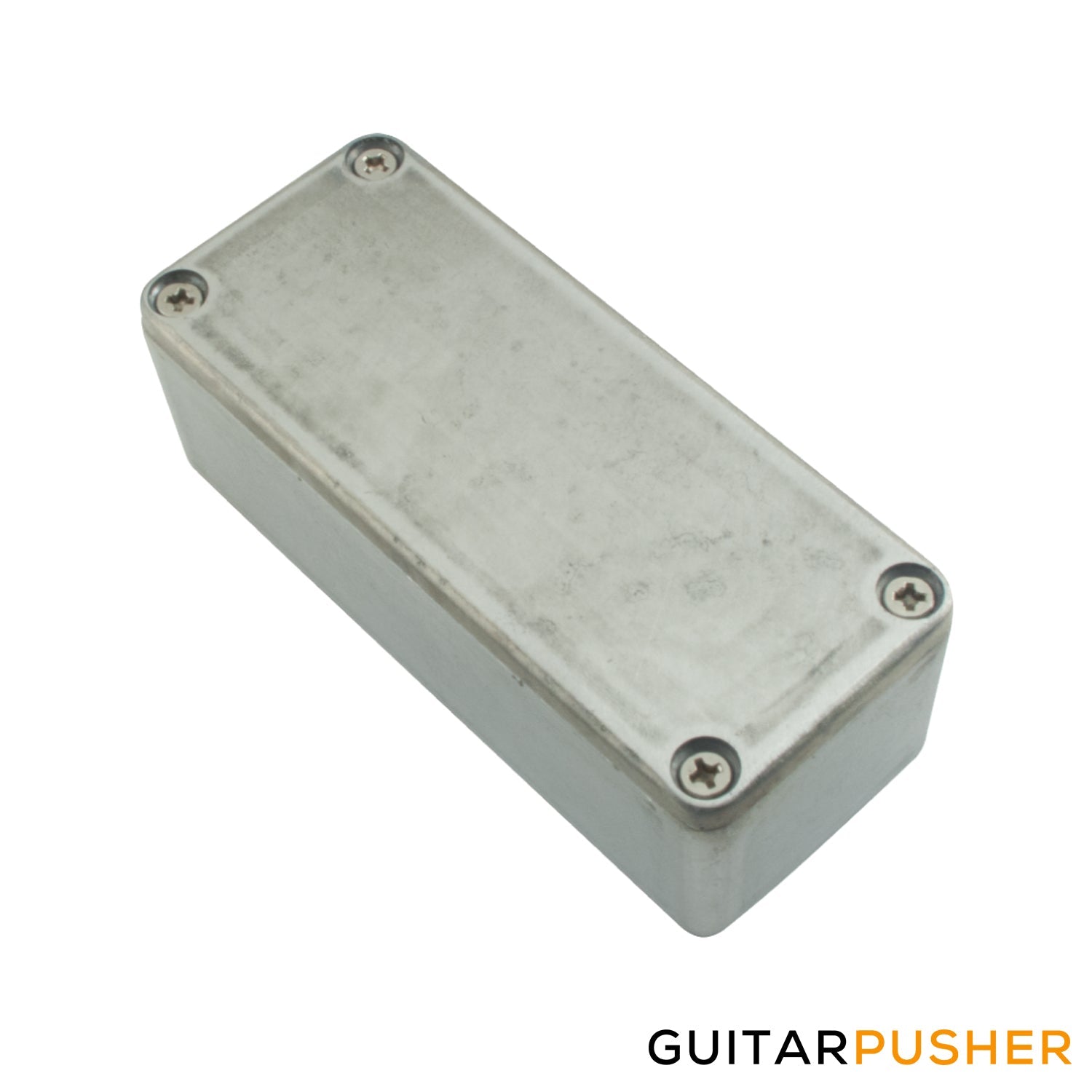

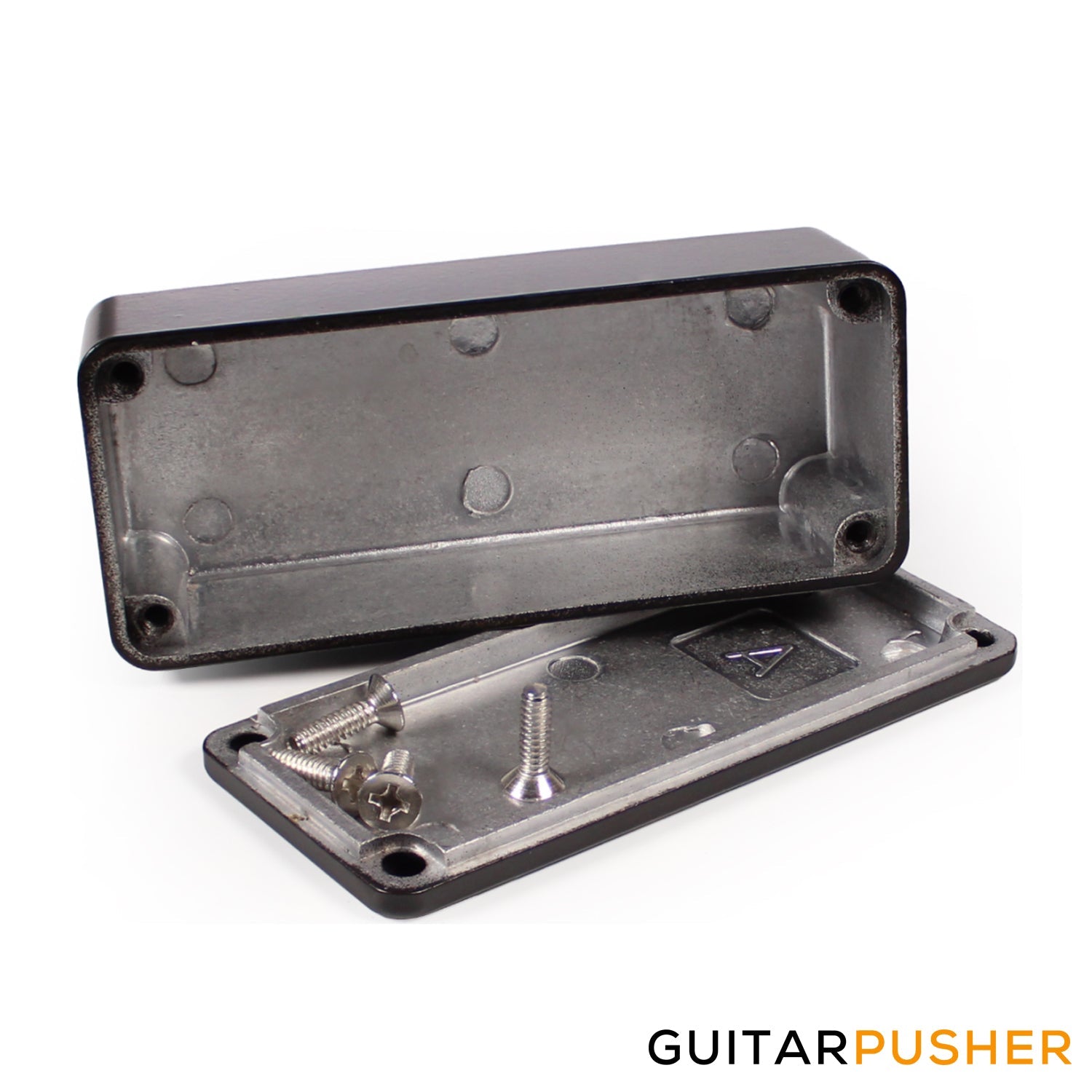

  • Four 6-32 x ½" machine screws secure lid - into tapped holes.
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
  • Dimensions shown are exterior dimensions.
  • Add 0.16" to enclosure depth for lid.

Product Data

  • SKU: P-H1590ACE-X
  • Item ID: 010075

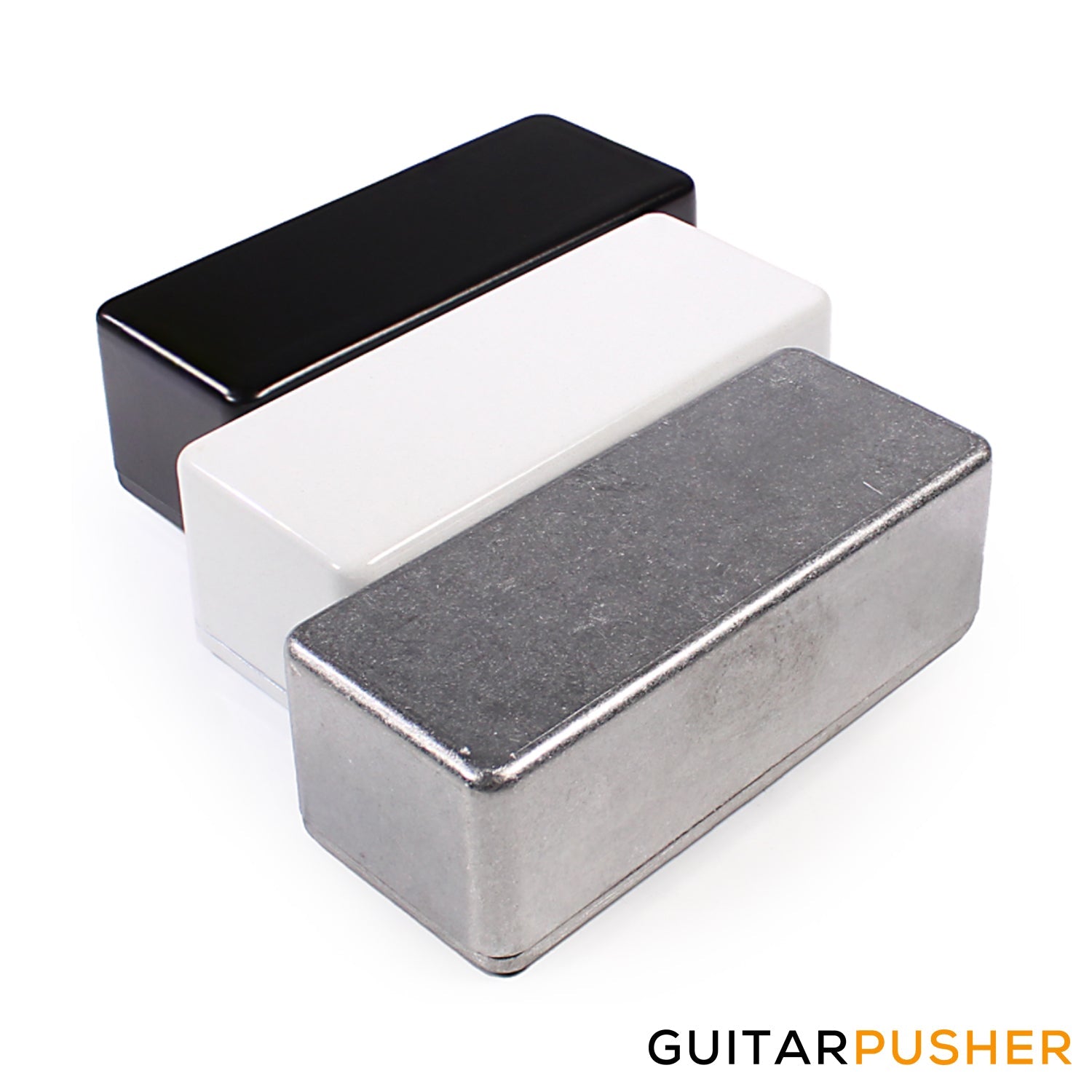

  • Color: Bare Aluminum, Black, White
  • Material: Diecast Aluminum
  • Process: None
  • Type: Pedal Enclosures1590A, Enclosures

Measurements by Item

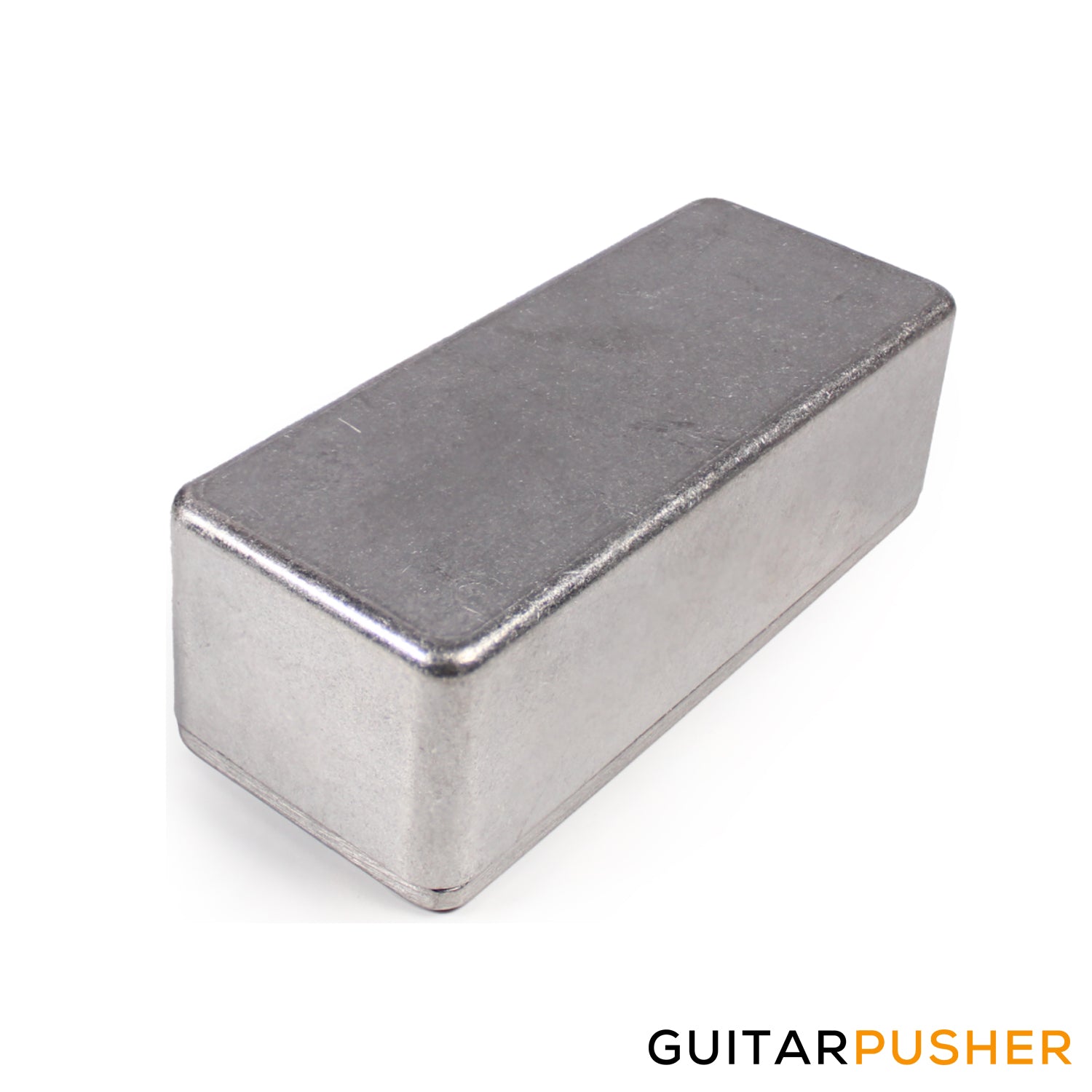

P-H1590ACE - Aluminum version Item Height 1.06 in.
Item Length 3.64 in.
Item Width 1.52 in.
Lid Depth 0.16 in.
Mounting Hole Diameter 6 mm
Total Height 1.22 in.

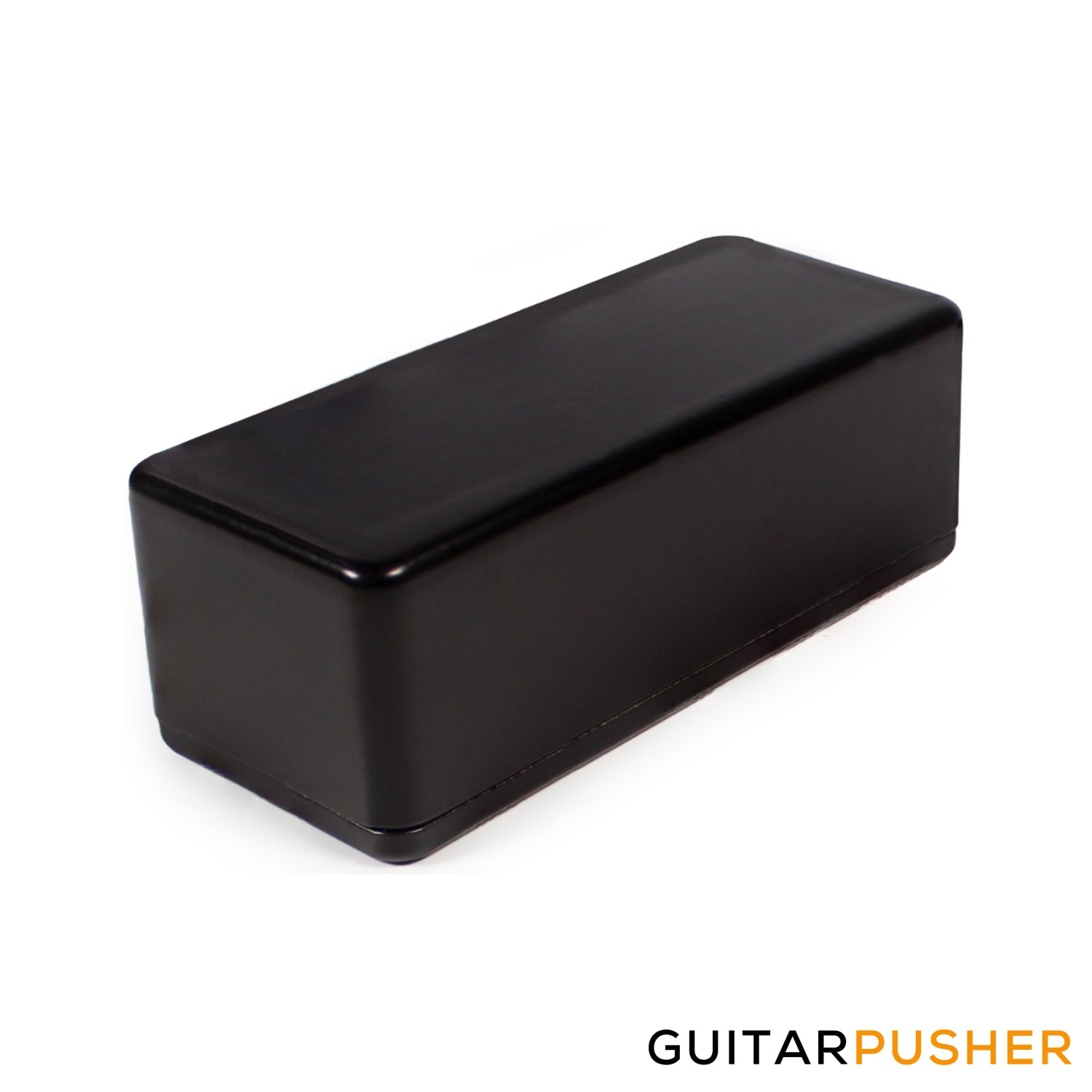

P-H1590ACE-BK - Black version Item Height 1.06 in.
Item Length 3.64 in.
Item Width 1.52 in.
Lid Depth 0.16 in.
Mounting Hole Diameter 6 mm
Total Height 1.22 in.

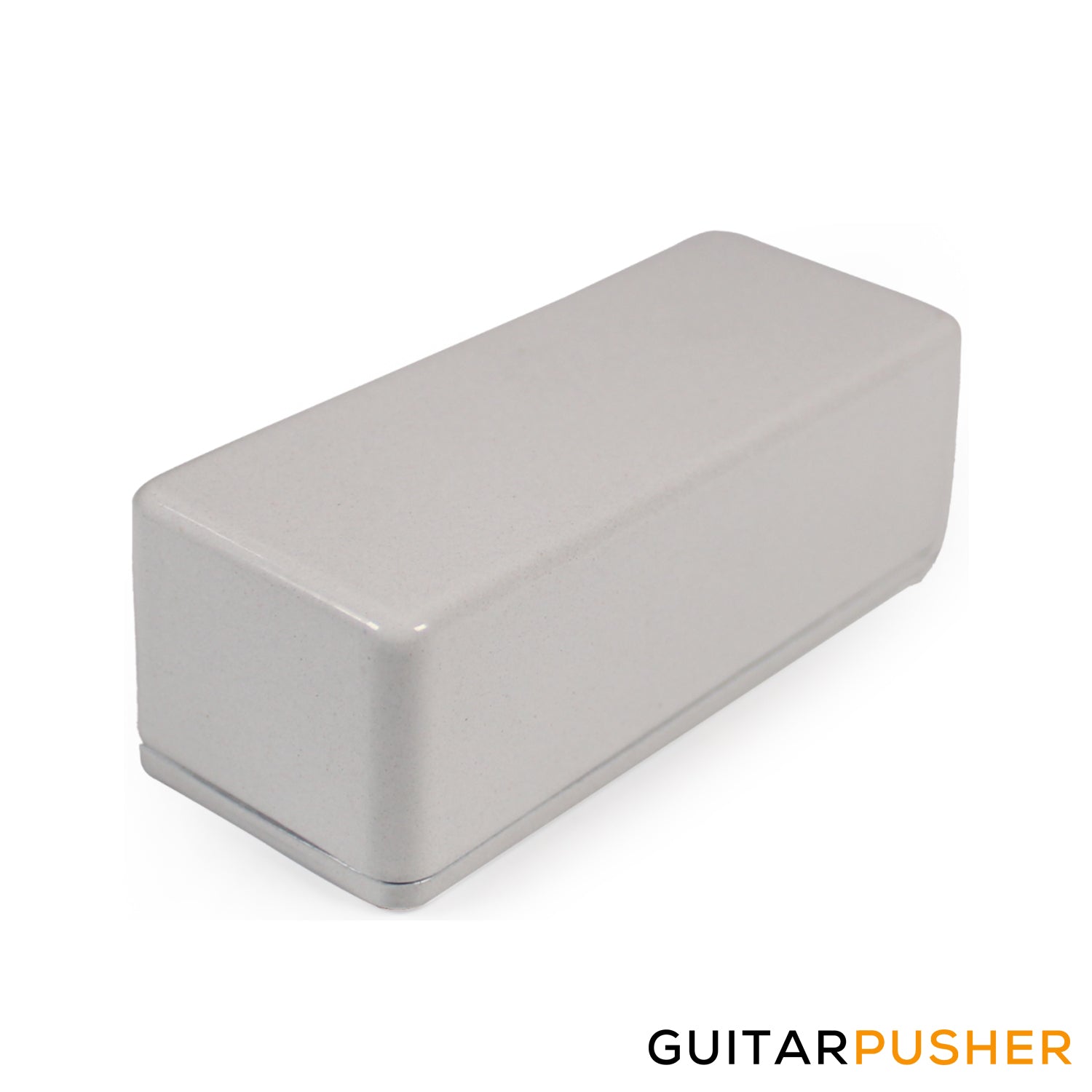

P-H1590ACE-W - White version Item Height 1.06 in.
Item Length 3.64 in.
Item Width 1.52 in.
Lid Depth 0.16 in.
Mounting Hole Diameter 6 mm
Total Height 1.22 in.
