WD Humbucker Pickup Ring Set

WD Humbucker Pickup Ring Set

Regular price ₱270.00 PHP
Regular price ₱0.00 PHP Sale price ₱270.00 PHP
Sale Sold out

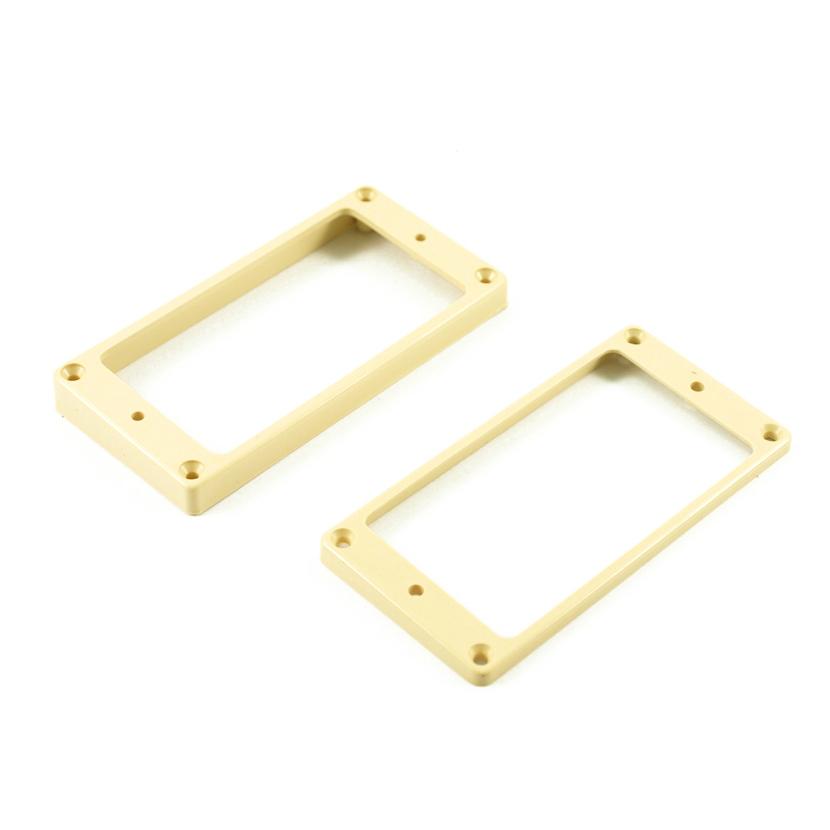

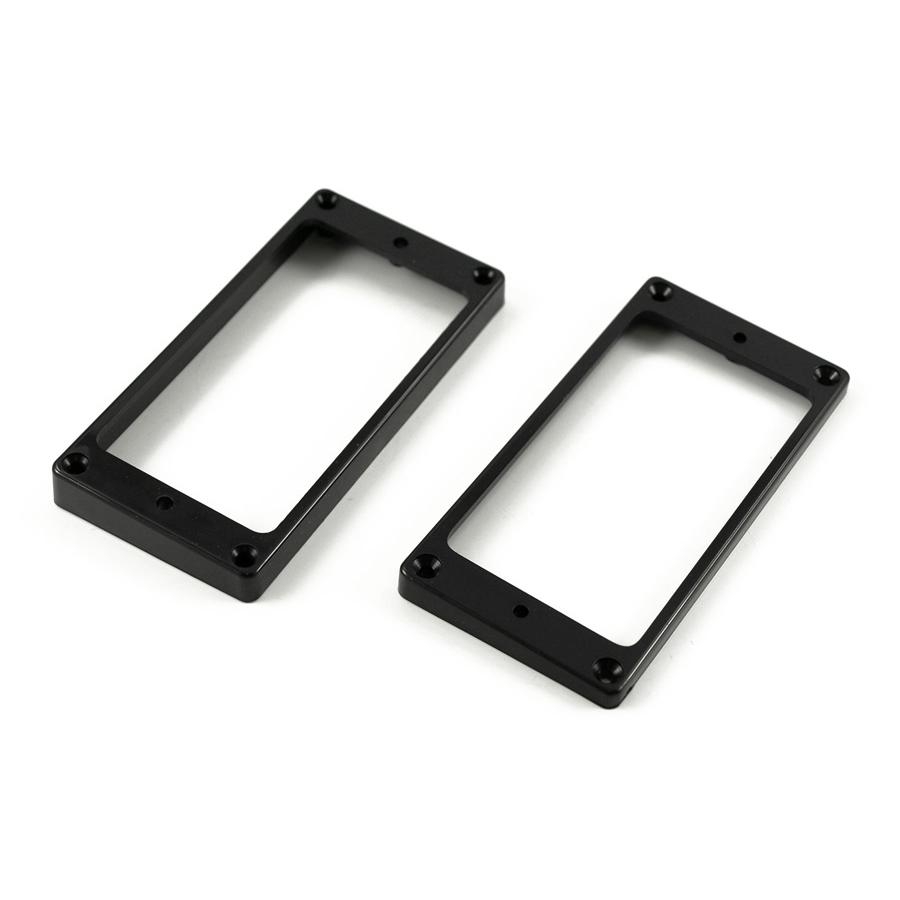

This is a typical set of plastic mounting rings found on most 2 humbucker guitars. It is comprised of 1 high and 1 low ring.

Important Dimensions:

Low = 9/64 inches - 13/64 inches
High = 19/64 inches – 3/8 inches

Interior Dimensions:
Pickup cutout width = 1.5 inches (38.2mm)
Pickup cutout length = 2.76 inches (70.2mm)
Exterior Dimensions:
Exterior width = 1.76 inches (44.7mm)
Exterior length = 3.50 inches (89.1mm)
Exterior heights tall side = .375 inches (9.5mm)
Exterior height short side = .295 inches (7.5mm)
Height holes center to center = 3.07 inches (78mm)
Mounting holes center to center length = 3.185 inches (8.09mm)
Mounting holes center to center width = 1.43 inches (36.3mm)


We ship via Lalamove within Metro Manila or nearby cities. We ship via LBC, J&T, YTO, 2GO nationwide. You may select the courier upon checkout.

Care Instructions

Bring your guitar only to certified Guitar Pusher techs or to certified tech partners nationwide. Damage due to uncertified techs will not be honored for warranty claim.

When returning items, it should be in brand new condition without any modifications, complete with all accessories and attachments.
