WD P-JB-EN-S Power Jack - DC Panel Mount, Rear Mount, 5.5mm External, 2.1mm Internal
WD P-JB-EN-S Power Jack - DC Panel Mount, Rear Mount, 5.5mm External, 2.1mm Internal
Couldn't load pickup availability

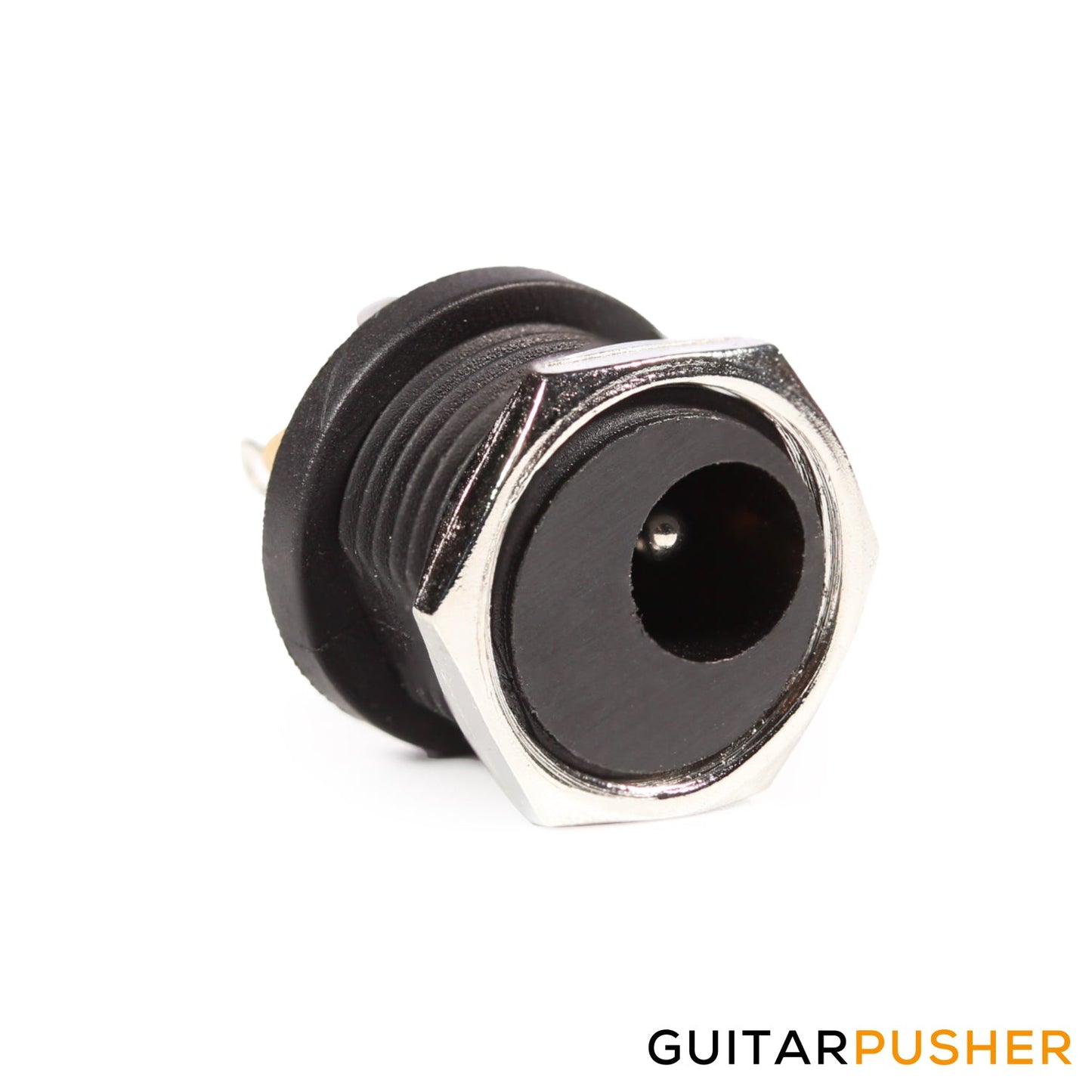

Power Jack - DC Panel Mount, Rear Mount, 5.5mm External, 2.1mm Internal

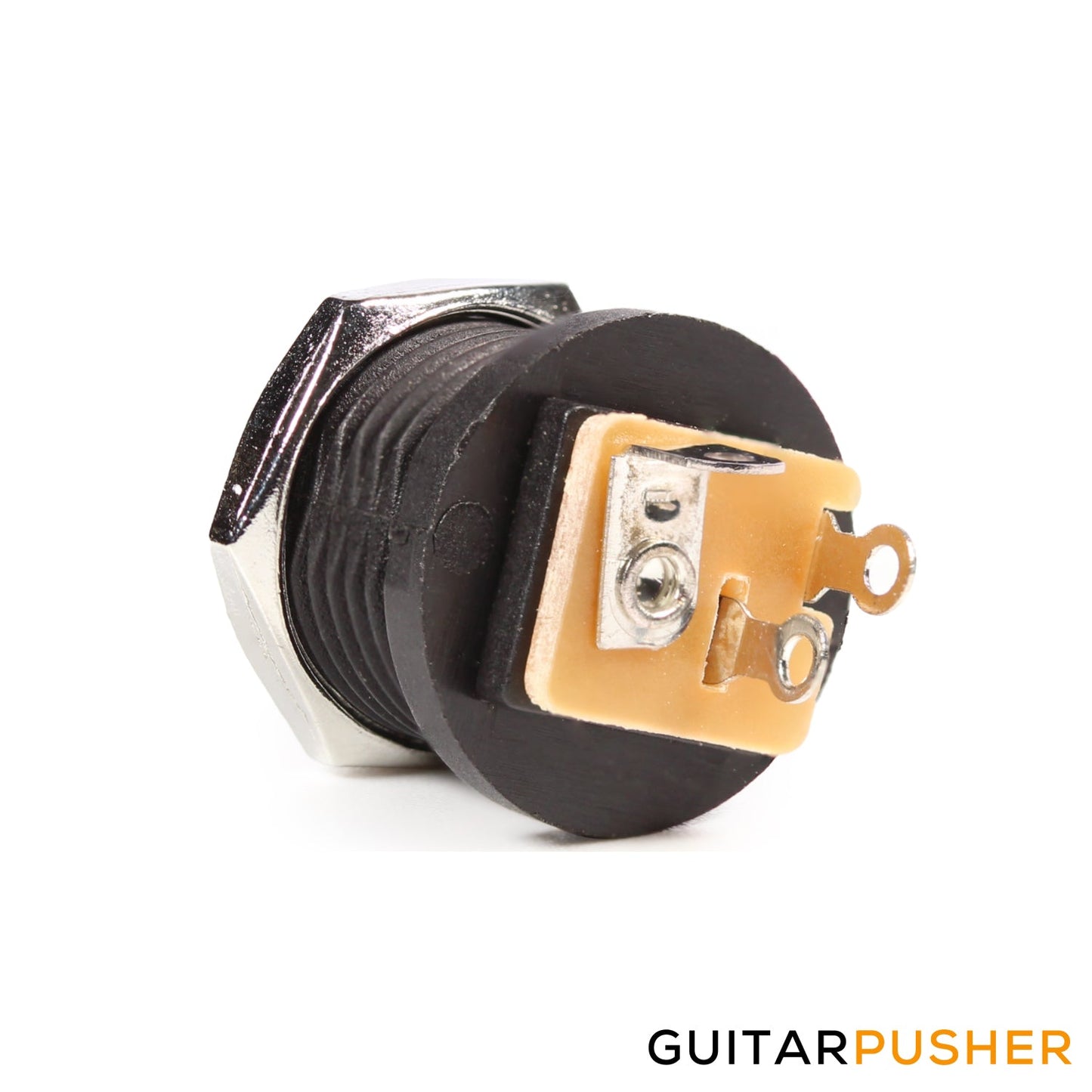

½" panel mount DC jack with solder lugs. This jack is rear mounted which makes troubleshooting and repairs simpler since the jack does not need to be desoldered if the circuit needs to be removed from the enclosure. Round plastic with normally closed switch. For barrel plugs with a 5.5mm external diameter and 2.1mm internal diameter. Three solder lugs are available for tip, ring, and switch.
Product Measurements by Type
| Inside Lip OD | 16 mm | |
| Internal Depth | 9 mm | |
| Solder Lug Length | 4.5 mm | |
| Thread | M12.7x1.0 | |
| Thread Length | 9 mm |
